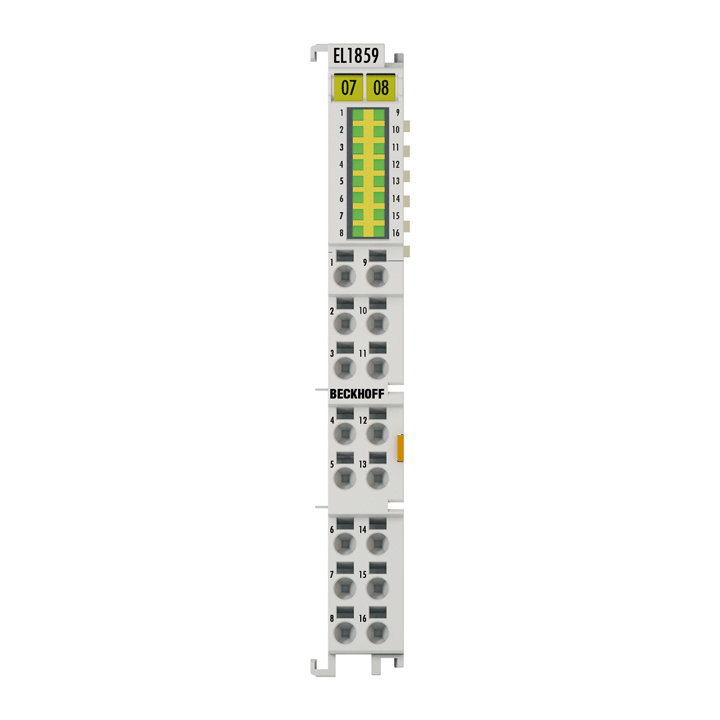

Beckhoff EL1859 HD EtherCAT Terminali
8 kanallı dijital giriş + 8 kanallı dijital çıkış 24 V DC
Dijital EL1859 EtherCAT Terminali, sekiz dijital girişi ve sekiz dijital çıkışı tek bir cihazda birleştirir. Kanalların sinyal durumu LED'ler ile belirtilir. Tüm girişler için referans toprak, 0 V DC güç kontağıdır; çıkışlar 24 V güç kontağı üzerinden beslenir.
Özel özellikler:
- Tek bir terminalde giriş ve çıkış kombinasyonu ile kompakt tasarım
- 3 ms giriş filtresi sayesinde mekanik anahtarlar nedeniyle sıçrama olmaz
- 0,5 A'ya kadar çıkış akımıyla ters polariteye karşı korumalı kısa devre korumalı çıkışlar
- Tek damarlı iletkenler için doğrudan geçme tekniği ile aletsiz bağlantı
| Technical data | EL1859 |
|---|---|
| Connection technology | 1-wire |
| Specification | EN 61131-2, type 1/3 |
| Number of channels | 8 inputs + 8 outputs |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| "0” signal voltage | -3…+5 V (EN 61131-2, type 1/3) |
| "1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Input filter | typ. 3.0 ms |
| Distributed clocks | – |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A per channel |
| Reverse voltage protection | yes |
| Breaking energy | < 150 mJ/channel |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption power contacts | typ. 15 mA + load |
| Current consumption E-bus | typ. 130 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 8 inputs + 8 outputs |
| Configuration | no address or configuration setting |
| Special features | combi EtherCAT Terminal, 8 x output 24 V DC, Imax = 0.5 A, load type: ohmic, inductive, lamp load, reverse voltage protection |
| Weight | approx. 65 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable (see documentation) |
| Approvals/markings | CE, UL, ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | EL-12-16pin |
|---|---|
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | Labeling of the BZxxx series |
| Wiring | solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG 28…16, st*: AWG 22…16, f*: AWG 26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
