Beckhoff EL3202 2 Kanallı Giriş Terminali Pt100 (RTD)
0 - Yorum
Kategori
Marka
Stok Kodu
273673
Garanti Süresi
24 Ay
Fiyat
596,62 EUR + KDV
* 7.612,28 TL den başlayan taksitlerle!
27.921,83 TL
34.902,29 TL
%20

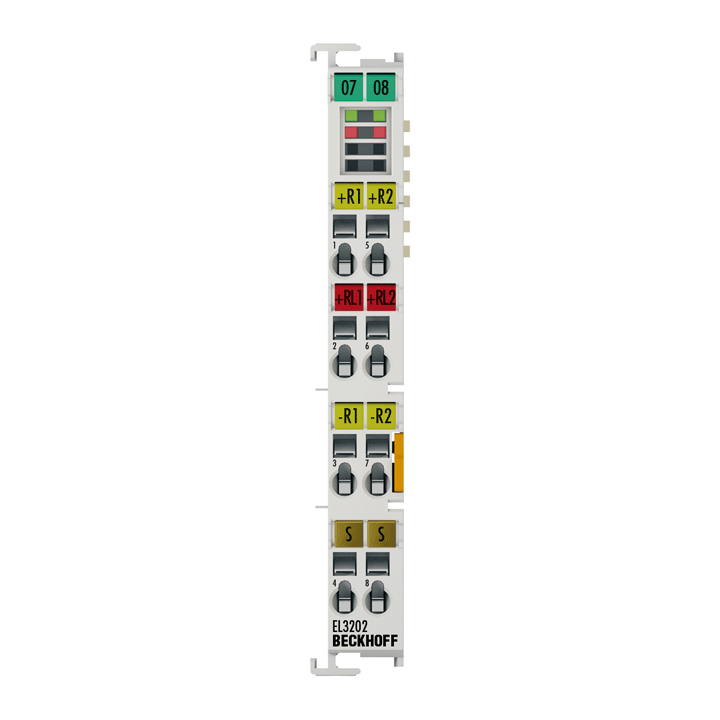

Beckhoff EL3202 2 Kanallı Giriş Terminali Pt100 (RTD)
2 veya 3 kablolu bağlantı için
EL3202 analog giriş terminali, direnç sensörlerinin doğrudan bağlanmasına izin verir. EtherCAT Terminal devresi 2 ve 3 kablolu sensörleri çalıştırabilir. Bir mikroişlemci, serbestçe seçilebilen tüm sıcaklık aralığı boyunca doğrusallaştırmayı yönetir. EtherCAT Terminalinin standart ayarları şunlardır: 3 kablolu bağlantıda Pt100 sensörlerinin sıcaklık aralığında 0,1 ° C çözünürlük. EtherCAT Terminalleri, sinyal durumlarını ışık yayan diyotlar aracılığıyla gösterir. Kopuk kablolar gibi sensör arızaları, hata LED'leri ile gösterilir.
| Technical data | EL3202, ES3202 |
|---|---|
| Number of inputs | 2 |
| Power supply | via the E-bus |
| Technology | 2-, 3-wire (default setting: 3-wire) |
| Distributed clocks | – |
| Input filter limit frequency | typ. 1 kHz |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
| Connection method | 2- or 3-wire (default: 2-wire) |
| Resolution | 0.1 °C per digit |
| Conversion time | approx. 85 ms default setting, 2…800 ms configurable |
| Temperature range | -200…+850 °C (Pt sensors); -60…+250 °C (Ni sensors) |
| Measuring current | < 0.5 mA (load-dependent) |
| Measuring error | < ±0.5 °C for Pt sensors |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 190 mA |
| Bit width in the process image | 2 x 32 bit RTD input |
| Special features | integrated digital filter, limit value monitoring, variable connection technology |
| Weight | approx. 60 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
