Beckhoff EL6021 Seri Arayüz RS422 / RS485
0 - Yorum
Kategori
Marka
Stok Kodu
273708
Garanti Süresi
24 Ay
Fiyat
693,19 EUR + KDV
* 8.844,44 TL den başlayan taksitlerle!
32.441,40 TL
43.255,20 TL
%25

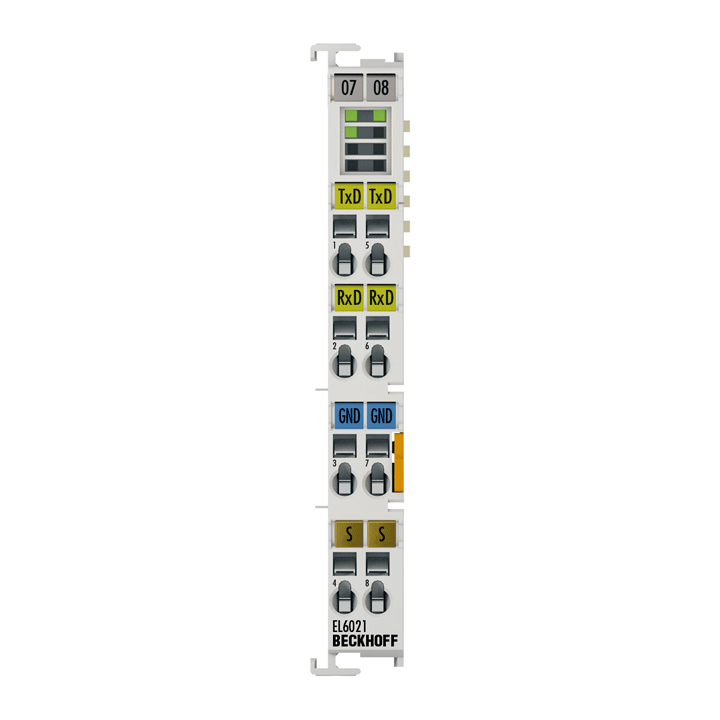

Beckhoff EL6021 Seri Arayüz RS422 / RS485
EL6021 seri arayüzü, cihazların RS422 veya RS485 arayüzlü bağlanmasını sağlar. Bu cihazlar, kuplör aracılığıyla otomasyon cihazı ile iletişim kurar. Aktif iletişim kanalı, 115,2 kbaud'a kadar tam veya yarı çift yönlü modda üst düzey veri yolu sisteminden bağımsız olarak çalışır. RS422'ye göre diferansiyel sinyallerin iletimi, elektriksel olarak izole edilmiş sinyaller yoluyla parazitlere karşı yüksek bağışıklığı garanti eder.
TwinCAT Sanal Seri COM Sürücüsü (bkz. TwinCAT Ekleri - İletişim) ile bağlantılı olarak EL6021 normal bir Windows COM arayüzü olarak kullanılabilir.
| Technical data | EL6021, ES6021 |
|---|---|
| Connection technology | terminal contact |
| Data transfer channels | TxD and RxD, full/half duplex |
| Data transfer rates | 2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit |
| Bit transfer | with differential signal |
| Interfaces | 1 x RS422/RS485 |
| Line impedance | 120 Ω |
| Cable length | approx. 1000 m twisted pair |
| Providing external supply | – |
| Power supply | via the E-bus |
| Distributed clocks | – |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Data buffer | 864 bytes receive buffer, 128 bytes transmit buffer |
| Configuration | no address setting, configuration via PLC |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 170 mA |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
