Beckhoff EL7031 Stepper Motor Terminali 24 V DC, 1,5 A
0 - Yorum
Kategori
Marka
Stok Kodu
273728
Garanti Süresi
24 Ay
Fiyat
568,06 EUR + KDV
* 7.247,93 TL den başlayan taksitlerle!
26.585,41 TL
33.231,76 TL
%20
Beckhoff EL7031 Stepper Motor Terminali 24 V DC, 1,5 A

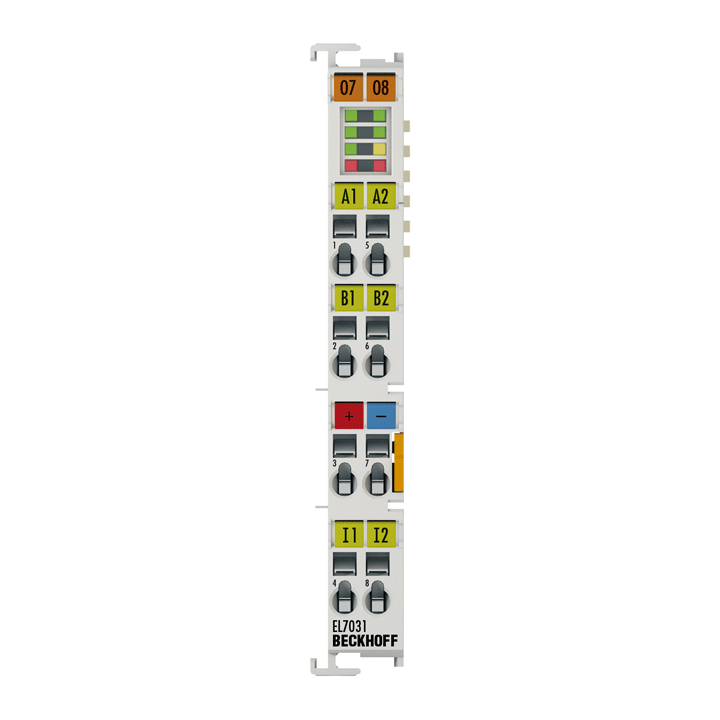

EL7031 EtherCAT Terminali, 1,5 A'ya kadar düşük güç aralığında kademeli Motorların doğrudan bağlanması için tasarlanmıştır. Kompakt kademeli motor çıkış aşaması, limit anahtarları için iki dijital giriş ile birlikte EtherCAT Terminalinde barındırılır. Parametreleme yoluyla EL7031, motora ve uygulama gereksinimlerine göre ayarlanabilir. 64 kat mikro adım, özellikle sessiz ve hassas motor çalışması sağlar.
Karşılık gelen bir kademeli motorla birlikte EL7031, uygun maliyetli bir kompakt sürücü çözümünü temsil eder.
| Technical data | EL7031, ES7031 |
|---|---|
| Technology | compact drive technology |
| Connection method | direct motor connection |
| Number of inputs | 2 x end position |
| Load type | 2-phase stepper motor (uni-/bipolar) |
| Number of channels | 1 |
| Number of outputs | 1 x stepper motor |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Supply voltage power | 24 V DC (internally via power contacts) |
| Output current | max. 1.5 A |
| Step frequency | configurable up to 8000 full steps/s |
| Step pattern | 64-fold micro stepping |
| Current controller frequency | approx. 25 kHz |
| Resolution | approx. 5000 positions in typ. applications (per revolution) |
| Current consumption power contacts | typ. 30 mA + motor current |
| Current consumption E-bus | typ. 120 mA |
| Distributed clocks | yes |
| Special features | travel distance control |
| Electrical isolation | 500 V (E-bus/field potential) |
| Relative humidity | 95 %, no condensation |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos. | IP 20/see documentation |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL |
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
