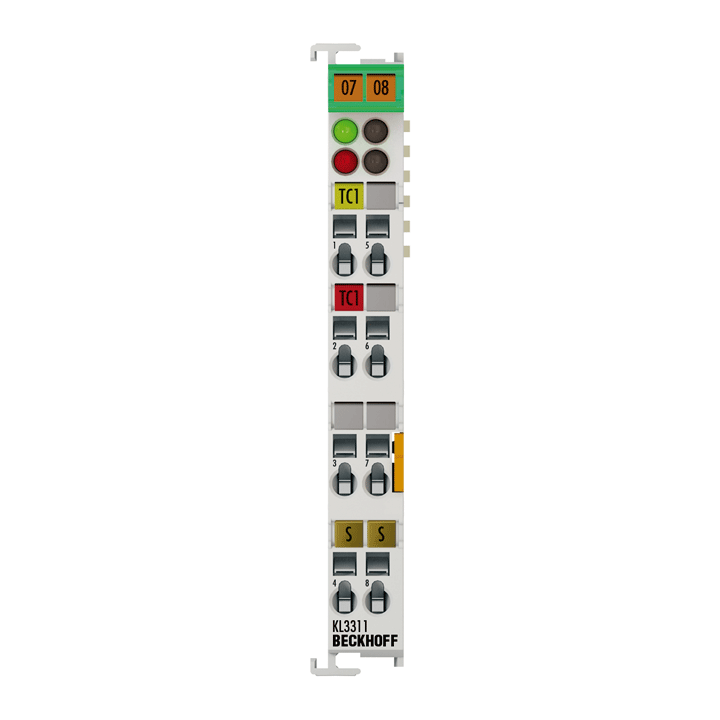

Beckhoff KL3311 1 Kanallı Termokupl Giriş Terminali
açık devre tanıma ile
KL3311 analog giriş terminali, termokuplların doğrudan bağlanmasına izin verir. Veri Yolu Terminalinin devresi, 2 telli tekniği kullanarak termokupl sensörlerini çalıştırabilir. Tam sıcaklık aralığında doğrusallaştırma, bir mikroişlemci yardımıyla gerçekleştirilir. Sıcaklık aralığı serbestçe seçilebilir. Hata LED'leri, kopuk bir kabloyu gösterir. Soğuk bağlantı için telafi, terminallerde bir iç sıcaklık ölçümü ile yapılır. KL3311, mV ölçümü için de kullanılabilir.
Technical data | |
---|---|
Number of inputs | 1 |
Power supply | via the K-bus |
Technology | 2-wire |
Thermocouple sensor types | types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement |
Connection method | 2-wire |
Measuring range | in the range defined in each case for the sensor (default setting: type K; -100…+1370 °C); mV measurement: ±30 mV…±120 mV |
Conversion time | ~ 200 ms |
Wiring fail indication | yes |
Resolution | 0.1 °C per digit |
Measuring error | < ±0.5 % (relative to full scale value) |
Electrical isolation | 500 V (K-bus/signal voltage) |
Current consumption power contacts | – (no power contacts) |
Current consumption K-bus | typ. 65 mA |
Bit width in the process image | input: 1 x 16 bit data (1 x 8 bit control/status optional) |
Configuration | no address setting, configuration via Bus Coupler or controller |
Special features | electrically isolated |
Weight | approx. 70 g |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos. | IP 20/variable |
Approvals/markings | CE, UL, ATEX |
Ex marking | II 3 G Ex nA IIC T4 Gc |
Housing data | KL-12-8pin | KS-12-8pin |
---|---|---|
Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
Material | polycarbonate | |
Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
Side by side mounting by means of | double slot and key connection | |
Marking | Labeling of the BZxxx series | |
Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
Stripping length | 8…9 mm | 9…10 mm |
Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
