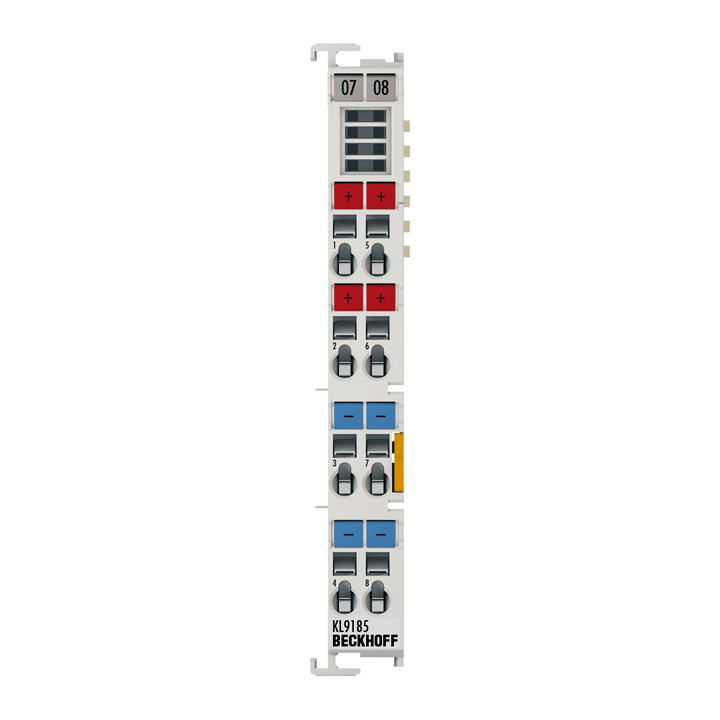

Beckhoff KL9185 Potansiyel Dağıtım Terminali, 4 x 24 V DC, 4 x 0 V DC
0 - Yorum
Kategori
Marka
Stok Kodu
273686
Garanti Süresi
24 Ay
Fiyat
58,12 EUR + KDV
* 741,50 TL den başlayan taksitlerle!
2.719,81 TL
3.399,77 TL
%20
Beckhoff KL9185 Potansiyel Dağıtım Terminali, 4 x 24 V DC, 4 x 0 V DC
KL9185 Veri Yolu Terminali, besleme voltajına yaylı terminaller aracılığıyla birkaç kez erişilmesine izin verir. Bus Terminali, terminal şeridinde ek terminal bloklarının kullanılmasını gereksiz kılar.
| Technical data | KL9185, KS9185 |
|---|---|
| Nominal voltage | arbitrary up to 230 V AC |
| Current load | ≤ 10 A |
| Integrated fine-wire fuse | – |
| Diagnostics | – |
| Power LED | – |
| Defect LED | – |
| Reported to K-bus | – |
| PE contact | – |
| Shield connection | – |
| Renewed infeed | – |
| Connection facility to additional power contact | 4 |
| K-bus, looped through | yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Current consumption K-bus | – |
| Electrical isolation | – |
| Housing width | 12 mm |
| Weight | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact | only 2 power contacts |
| Side by side mounting on Bus Terminals without power contact | – |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
