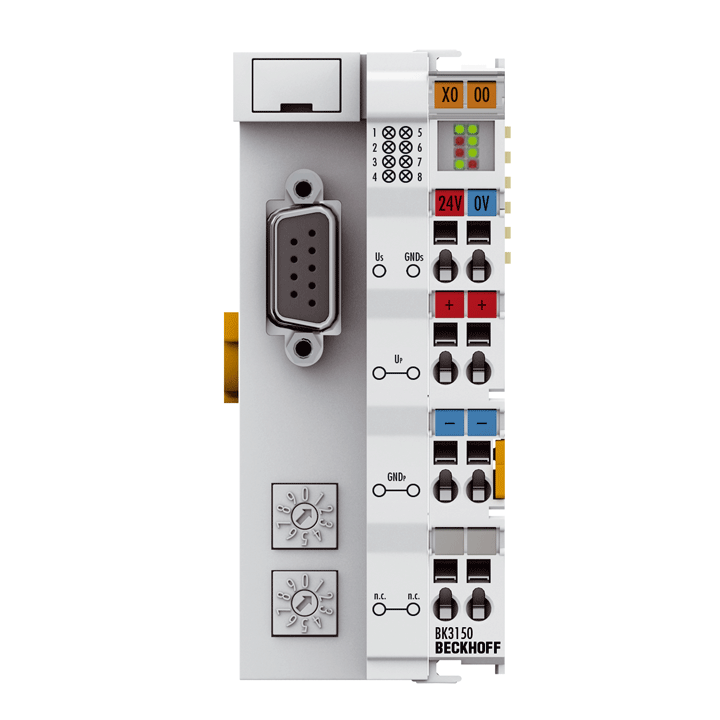

Beckhoff BK3150 PROFIBUS ''Kompakt'' Bus Bağlayıcı
0 - Yorum
Kategori
Marka
Stok Kodu
273618
Garanti Süresi
24 Ay
Fiyat
532,59 EUR + KDV
* 6.795,36 TL den başlayan taksitlerle!
24.925,38 TL
31.156,73 TL
%20
Beckhoff BK3150 PROFIBUS "Kompakt" Bus Bağlayıcı
PROFIBUS için "Kompakt" Bus Birleştiricisi BK3150, Beckhoff Bus Terminal sistemini kompakt bir muhafaza içinde uygun maliyetli bir versiyonla genişletir. 64'e kadar Bus Terminali desteklenir; terminal veriyolu uzantısı ile 255'e kadar Bus Terminali bağlanabilir. PROFIBUS Bus Coupler, 12 Mbaud'a kadar otomatik baud hızı algılama ve adres ataması için iki adres seçim anahtarı sunar. Fieldbus bağlantısı için, ZS1031-3000 veya ZB3100 PROFIBUS konnektörleri için bir D-sub 9-pin soket mevcuttur.
| System data | PROFIBUS | BK3150 |
|---|---|
| Number of I/O stations | 100 with repeater |
| Number of I/O points | approx. 6,000, depending on the master |
| Data transfer medium | shielded copper cable, 2 x 0.25 mm² |
| Max. cable length | 1,200 m 1,000 m 400 m 200 m 100 m |
| Data transfer rates | 9.6/19.2/93.75 kbaud 187.5 kbaud 500 kbaud 1,500 kbaud …3, 6, 12 Mbaud |
| Technical data | BK3150 |
|---|---|
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 128 byte input and 128 byte output |
| Data transfer rates | automatic detection up to 12 Mbaud |
| Bus interface | 1 x D-sub 9-pin socket with shielding |
| Power supply | 24 V DC (-15 %/+20 %) |
| Input current | 70 mA + (total K-bus current)/4, 500 mA max. |
| Current supply K-bus | 1750 mA |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/fieldbus) |
| Weight | approx. 100 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Approvals/markings | CE, UL, ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | BKxx50, BCxx50 |
|---|---|
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | Labeling of the BZxxx series |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
