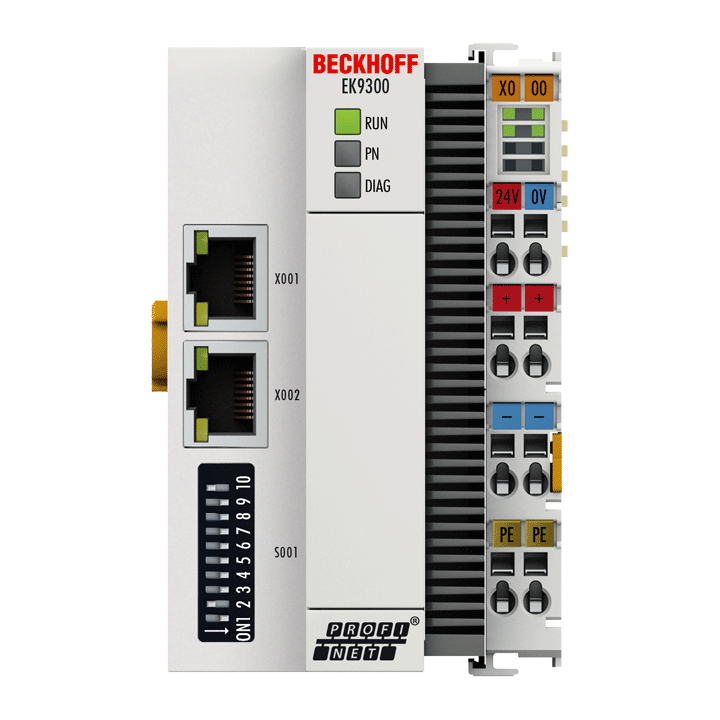

Beckhoff EK9300 PROFINET RT Bus Bağlayıcı
EK9300 Bus Kuplörü, PROFINET RT ağlarını EtherCAT Terminallerine (ELxxxx) ve EtherCAT Box modüllerine (EPxxxx) bağlar ve PROFINET RT'den gelen telgrafları E-bus sinyal gösterimine dönüştürür. Bir istasyon bir EK9300 ve herhangi bir sayıda EtherCAT Terminalinden oluşur. Kuplör, RJ45 üzerinden PROFINET RT'ye bağlanır. EtherCAT'de PROFINET RT kuplörü, geniş bir terminal seçimi ile daha düşük seviyeli, güçlü ve ultra hızlı I / O sistemine sahiptir. Bağlayıcı, PROFINET RT profilini destekler ve PROFINET RT ağlarına sorunsuz bir şekilde uyar.
| Technical data | EK9300 |
|---|---|
| Task within EtherCAT system | coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFINET RT networks |
| Number of EtherCAT Terminals | depending on the process data size |
| Type/number of peripheral signals | depending on the process data size |
| Protocol | PROFINET RT |
| Data transfer rates | 100 Mbit/s |
| Configuration | not required |
| Bus interface | 2 x RJ45 (switched) |
| Power supply | 24 V DC (-15 %/+20 %) |
| Input current | typ. 120 mA + (total E-bus current)/4 |
| Current consumption E-bus | up to 2 A |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Dimensions (W x H x D) | 64 mm x 100 mm x 73 mm |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos. | IP 20/see documentation |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| Housing data | EK-64-8pin |
|---|---|
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 64 mm x 100 mm x 72 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | Labeling of the BZxxx series |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
