Beckhoff EL3102 2 Kanallı Analog Giriş Terminali
0 - Yorum
Kategori
Marka
Stok Kodu
273631
Garanti Süresi
24 Ay
Fiyat
555,82 EUR + KDV
* 7.091,76 TL den başlayan taksitlerle!
26.012,58 TL
32.515,73 TL
%20

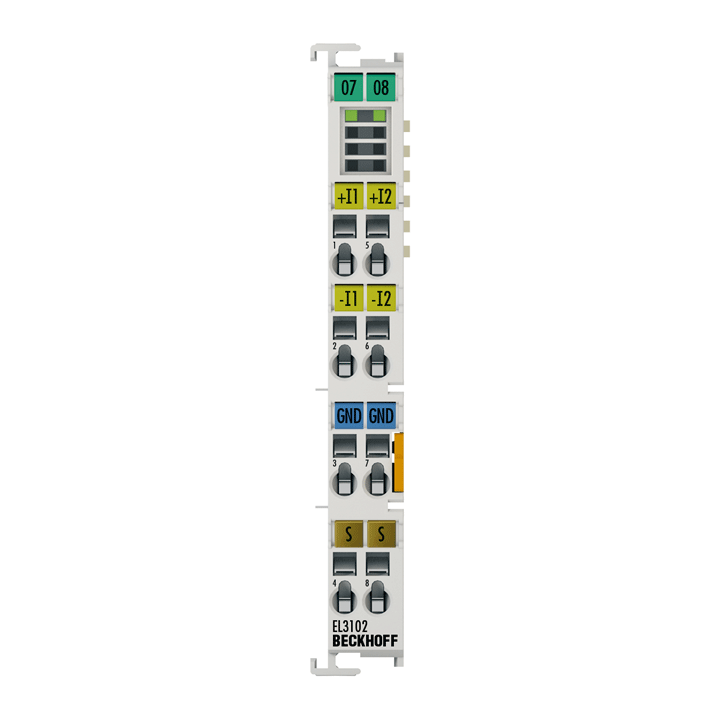

Beckhoff EL3102 2 Kanallı Analog Giriş Terminali
-10… + 10 V, diferansiyel giriş, 16 bit
EL3102 analog giriş terminali, -10 ile +10 V arasındaki sinyalleri işler. Gerilim, 16 bitlik bir çözünürlüğe dijitalleştirilir ve elektriksel olarak izole edilmiş olarak daha yüksek seviyeli otomasyon cihazına iletilir. EtherCAT Terminalinin giriş kanalları diferansiyel girişlere sahiptir ve ortak, dahili bir toprak potansiyeline sahiptir. EtherCAT Terminalinin sinyal durumu ışık yayan diyotlarla gösterilir.
| Technical data | EL3102, ES3102 |
|---|---|
| Number of inputs | 2 (differential) |
| Power supply | via the E-bus |
| Technology | differential input |
| Signal type | differential |
| Signal voltage | -10…+10 V |
| Oversampling factor | – |
| Input signal bandwidth | – |
| Distributed clocks | yes |
| Distributed clock precision | << 1 µs |
| Internal resistance | > 200 kΩ |
| Input filter limit frequency | 5 kHz |
| Common-mode voltage UCM | max. 35 V (relative to the internal GND) |
| Conversion time | ~ 60 µs (fast mode ~ 40 µs) |
| Resolution | 16 bit (incl. sign) |
| Measuring error | < ±0.3 % (relative to full scale value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 170 mA |
| Bit width in the process image | inputs: 8 byte |
| Special features | standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring |
| Weight | approx. 60 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
