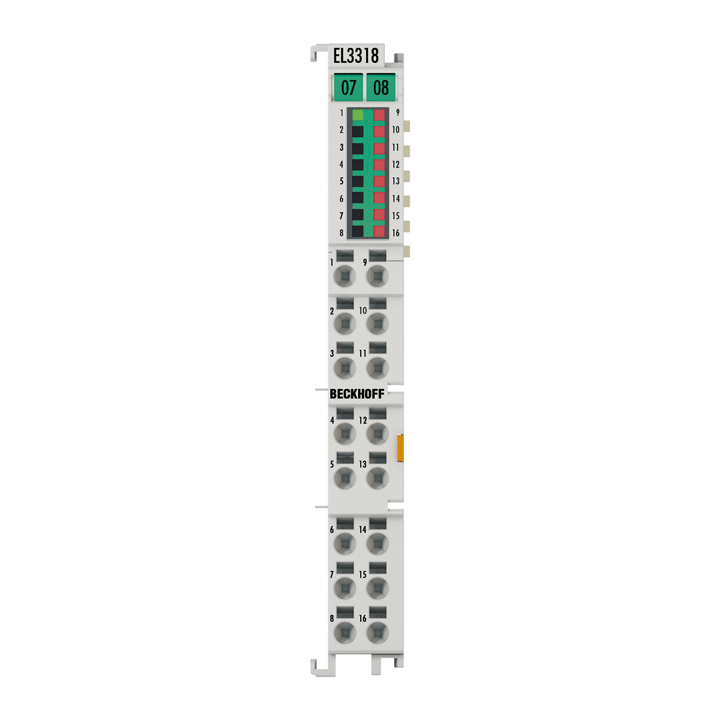

Beckhoff EL3318 HD EtherCAT Terminali
Açık devre tanıma özellikli 8 kanallı termokupl girişi
EL3318 analog giriş terminali, sekiz termokuplun doğrudan bağlanmasına izin verir ve bu nedenle özellikle kontrol kabinlerinde yerden tasarruf sağlayan kullanım için uygundur. EtherCAT Terminal devresi, 2 telli tekniği kullanarak termokupl sensörlerini çalıştırabilir. Bir mikroişlemci, serbestçe seçilebilen tüm sıcaklık aralığı boyunca doğrusallaştırmayı yönetir. Hata LED'leri, kopuk bir kabloyu gösterir. Soğuk bağlantı için telafi, terminalde bir dahili sıcaklık ölçümü ile yapılır. EL3318, mV ölçümü için de kullanılabilir.
Yüksek paketleme yoğunluğuna sahip HD EtherCAT Terminalleri (Yüksek Yoğunluk), 12 mm terminal bloğunun muhafazasında 16 bağlantı noktasına sahiptir.
| Technical data | EL3318 |
|---|---|
| Number of inputs | 8 |
| Power supply | via the E-bus |
| Thermocouple sensor types | types K, J, L, E, T, N, U, B, R, S, C (default setting type K), mV measurement |
| Signal type | differential |
| Distributed clocks | – |
| Input filter limit frequency | typ. 1 kHz; depending on sensor length, conversion time, sensor type |
| Connection method | 2-wire |
| Wiring fail indication | yes |
| Conversion time | approx. 5 s up to 40 ms, depending on configuration and filter setting, default: approx. 500 ms |
| Voltage measurement | ±30 mV…±75 mV |
| Temperature range | in the range defined in each case for the sensor (default setting: type K; -200…+1370 °C); voltage measurement: ±30 mV…±75 mV |
| Resolution | 0.1 °C per digit |
| Measuring error | < ±0.3 % (relative to full scale value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 210 mA |
| Bit width in the process image | 8 x 32 bit TC input, 8 x 16 bit TC output |
| Configuration | no address setting, configuration via the controller |
| Conductor types | solid wire, stranded wire and ferrule |
| Conductor connection | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Special features | open-circuit recognition |
| Weight | approx. 70 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex nA IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| Housing data | EL-12-16pin |
|---|---|
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | Labeling of the BZxxx series |
| Wiring | solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG 28…16, st*: AWG 22…16, f*: AWG 26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
