Beckhoff EL7041 Stepper Motor Terminali 48 V DC, 5 A, Artımlı Enkoderli
0 - Yorum
Kategori
Marka
Stok Kodu
273660
Garanti Süresi
24 Ay
Fiyat
1.004,58 EUR + KDV
* 12.817,41 TL den başlayan taksitlerle!
47.014,25 TL
58.767,81 TL
%20

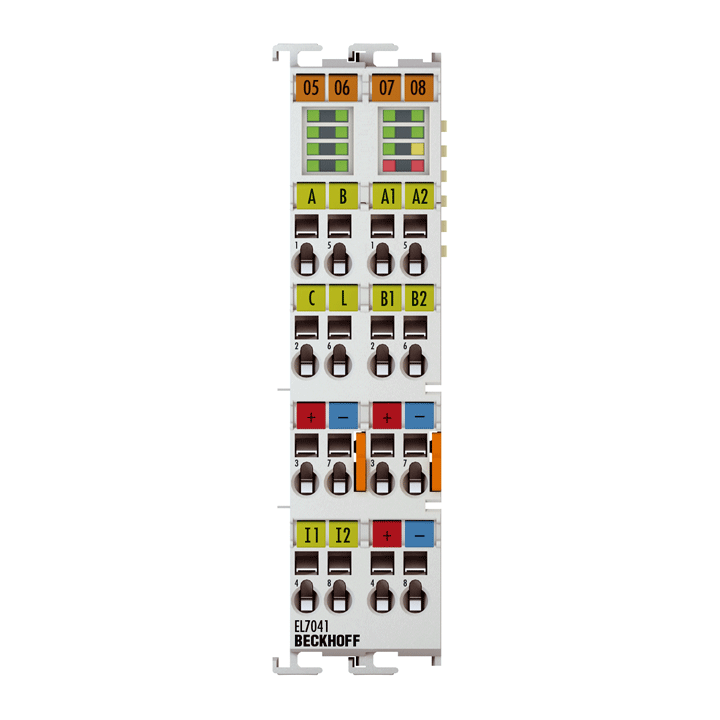

Beckhoff EL7041 Stepper Motor Terminali 48 V DC, 5 A, Artımlı Enkoderli
EL7041 EtherCAT Terminali, 8… 48 V voltaj aralığında 5 A'ya kadar orta güç aralığındaki step Motorların doğrudan bağlanması için tasarlanmıştır. Kompakt step motor çıkış aşaması, EtherCAT Terminalinde iki dijital giriş ile birlikte bulunur limit, bir enkoder arayüzünü değiştirir. Parametreleme yoluyla EL7041 motora ve uygulama gereksinimlerine göre ayarlanabilir. 64 kat mikro adım, özellikle sessiz ve hassas motor çalışması sağlar.
Karşılık gelen bir step motor ile birlikte EL7041, uygun maliyetli bir kompakt sürücü çözümünü temsil eder.
| Technical data | EL7041, ES7041 | EL7041-1000 |
|---|---|---|
| Technology | compact drive technology | |
| Connection method | direct motor connection + feedback | |
| Number of inputs | 2 x end position, 1 x encoder | |
| Load type | 2-phase stepper motor (uni-/bipolar) | |
| Number of channels | 1 | |
| Number of outputs | 1 x stepper motor | |
| Supply voltage electronics | 24 V DC (via power contacts) | |
| Supply voltage power | 8…48 V DC (external) | |
| Output current | max. 5.0 A | |
| Step frequency | configurable up to 8000 full steps/s | |
| Step pattern | 64-fold micro stepping | |
| Current controller frequency | approx. 30 kHz | |
| Resolution | approx. 5000 positions in typ. applications (per revolution) | |
| Encoder input signal | 5…24 V DC, typ. 5 mA, single-ended | |
| Encoder connection | A, B, C, gate/latch | |
| Input frequency | max. 400,000 increments/s (with 4-fold evaluation) | |
| Current consumption power contacts | typ. 50 mA | |
| Current consumption E-bus | typ. 140 mA | |
| Distributed clocks | yes | |
| Special features | travel distance control, encoder input | for resonance-critical applications, encoder input |
| Electrical isolation | 500 V (E-bus/field potential) | |
| Relative humidity | 95 %, no condensation | |
| Weight | approx. 90 g | |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C | |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 | |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 | |
| Protect. class/installation pos. | IP 20/see documentation | |
| Pluggable wiring | for all ESxxxx terminals | |
| Approvals/markings | CE, UL | |
| Housing data | EL-24-2x8pin | ES-24-2x8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
