Beckhoff EL9070 Ekran Terminali
0 - Yorum
Kategori
Marka
Stok Kodu
273619
Garanti Süresi
24 Ay
Fiyat
56,53 EUR + KDV
* 721,25 TL den başlayan taksitlerle!
2.645,54 TL
3.306,93 TL
%20

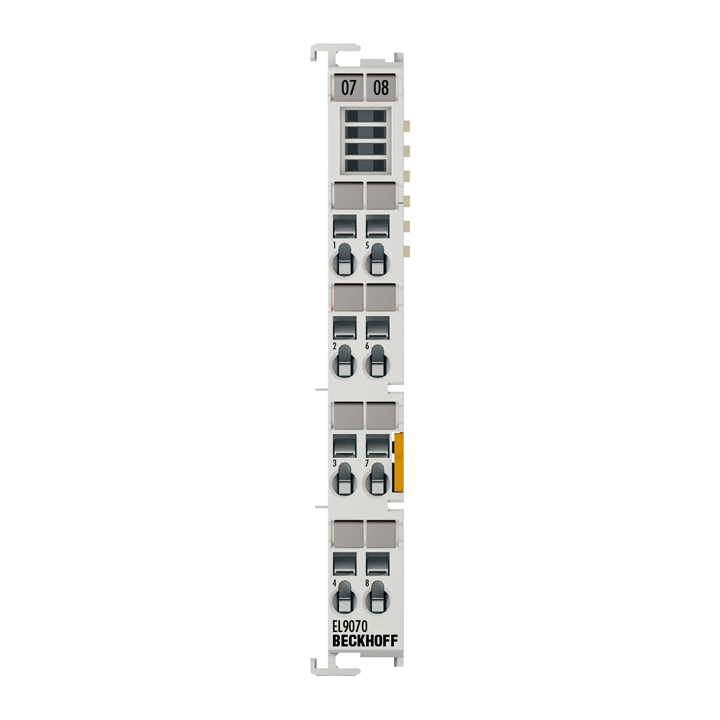

Beckhoff EL9070 Ekran Terminali
EL9070 blendaj terminali, montaj rayının potansiyeline sahip sekiz terminal noktası sağlar ve ekranın başka modüler terminal blokları veya kablo tesisatı olmadan alınmasını sağlar. EL9070, dahili dikişsiz bakır yüzeyi ile iki EtherCAT Terminali arasında iyi bir ekranlama sunar.
| Technical data | EL9070, ES9070 |
|---|---|
| Technology | shield terminal |
| Current load | ≤ 10 A |
| Nominal voltage | arbitrary up to 230 V AC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Shield connection | 8 x |
| Connection facility to additional power contact | no |
| E-bus looped through | yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | yes |
| Housing width | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact |
yes, left without PE |
| Side by side mounting on EtherCAT Terminals without power contact |
– |
| Special features | dissipation of EMC interference via large copper surfaces on the DIN rail |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Approvals/markings | CE, UL |
| Housing data | EL-12-8pin |
|---|---|
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | Labeling of the BZxxx series |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
