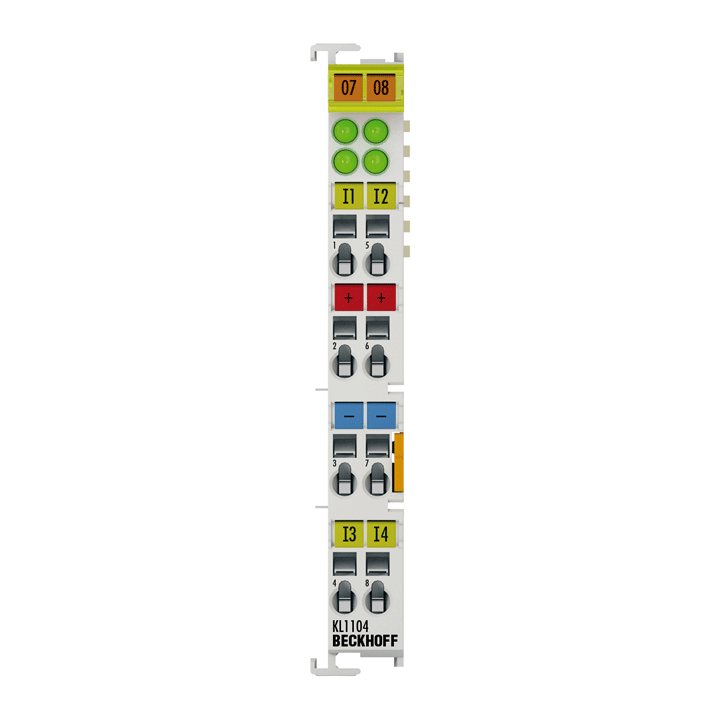

Beckhoff KL1104 4 Kanallı Dijital Giriş Terminali 24 V DC
0 - Yorum
Kategori
Marka
Stok Kodu
273642
Garanti Süresi
24 Ay
Fiyat
104,84 EUR + KDV
* 1.337,63 TL den başlayan taksitlerle!
4.906,41 TL
6.133,01 TL
%20
Beckhoff KL1104 4 Kanallı Dijital Giriş Terminali 24 V DC
KL1104 dijital giriş terminali, proses seviyesinden ikili 24 V DC kontrol sinyallerini alır ve bunları elektriksel olarak izole edilmiş bir biçimde üst seviye otomasyon ünitesine iletir. Bus Terminali, sinyal durumunu ışık yayan diyotlar aracılığıyla gösteren dört kanal içerir.
Özel özellikler:
- Giriş özelliği tipi 1/3
- 3 ms giriş filtresi sayesinde mekanik anahtarlar nedeniyle sıçrama olmaz
- +24 V DC ve 0 V DC sensör besleme bağlantıları
| Technical data | KL1104, KS1104 |
|---|---|
| Connection technology | 2-/3-wire |
| Specification | EN 61131-2, type 1 |
| Number of inputs | 4 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| "0” signal voltage | -3…+5 V |
| "1” signal voltage | 15…30 V |
| Input filter | typ. 3.0 ms |
| Input current | typ. 5 mA |
| Current consumption K-bus | typ. 5 mA |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 4 inputs |
| Configuration | no address or configuration setting |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
