Beckhoff KL2424 4 Kanallı Dijital Çıkış Terminali 24 V DC
0 - Yorum
Kategori
Marka
Stok Kodu
273643
Garanti Süresi
24 Ay
Fiyat
180,33 EUR + KDV
* 2.300,85 TL den başlayan taksitlerle!
8.439,51 TL
10.549,38 TL
%20

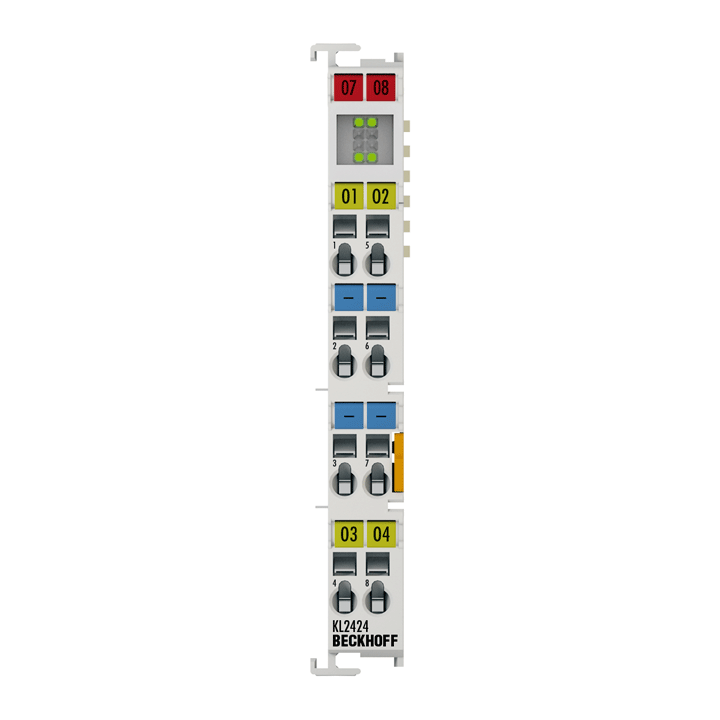

Beckhoff KL2424 4 Kanallı Dijital Çıkış Terminali 24 V DC
KL2424 dijital çıkış terminali, aktüatörlerle elektriksel olarak izole edilmiş ikili 24 V kontrol sinyallerini bağlar. Bus Terminali, sinyal durumlarını LED'ler aracılığıyla gösteren dört kanal içerir. 4 kanallı Veri Yolu Terminali, dört 2 kablolu sensörün doğrudan bağlanmasını sağlar. Dört toprak bağlantı noktası sağlanmıştır.
| Technical data | KL2424, KS2424 |
|---|---|
| Connection technology | 2-wire |
| Number of outputs | 4 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 2.0 A (short-circuit proof) per channel |
| Short-circuit current | < 70 A |
| Breaking energy | < 1.7 J/channel |
| Reverse voltage protection | yes |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | typ. 30 mA + load |
| Current consumption K-bus | typ. 9 mA |
| Bit width in the process image | 4 outputs |
| Configuration | no address or configuration setting |
| Weight | approx. 70 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
