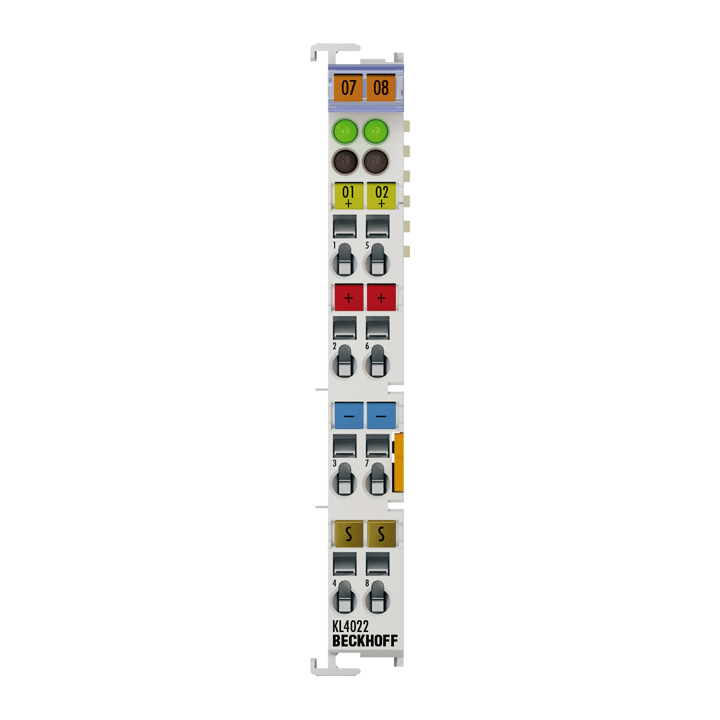

Beckhoff KL4022 2 Kanallı Analog Çıkış Terminali 4 - 20 mA
0 - Yorum
Kategori
Marka
Stok Kodu
273609
Garanti Süresi
24 Ay
Fiyat
551,68 EUR + KDV
* 7.038,92 TL den başlayan taksitlerle!
25.818,73 TL
34.424,98 TL
%25
Beckhoff KL4022 2 Kanallı Analog Çıkış Terminali 4 - 20 mA
KL4022 analog çıkış terminali, 4 ila 20 mA aralığında analog çıkış sinyalleri üretir. Güç, proses seviyesine 12 bitlik bir çözünürlükle sağlanır ve elektriksel olarak izole edilmiştir. Bir Bus Terminalinin çıkış kanallarının topraklama potansiyeli, 24 V DC besleme ile ortaktır. Çıkış aşamaları 24 V besleme ile beslenir. Çalışma LED'leri, Bus Bağlayıcı ile veri alışverişinin bir göstergesini verir.
| Technical data | KL4022, KS4022 |
|---|---|
| Technology | single-ended |
| Number of outputs | 2 |
| Power supply | 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515) |
| Signal current | 4…20 mA |
| Load | < 500 Ω |
| Output error | < ±0.1 % (relative to end value) |
| Resolution | 12 bit |
| Conversion time | ~ 1.5 ms |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Current consumption power contacts | typ. 50 mA + load |
| Current consumption K-bus | typ. 60 mA |
| Bit width in the process image | output: 2 x 16 bit data (2 x 8 bit control/status optional) |
| Configuration | no address or configuration setting |
| Weight | approx. 80 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
