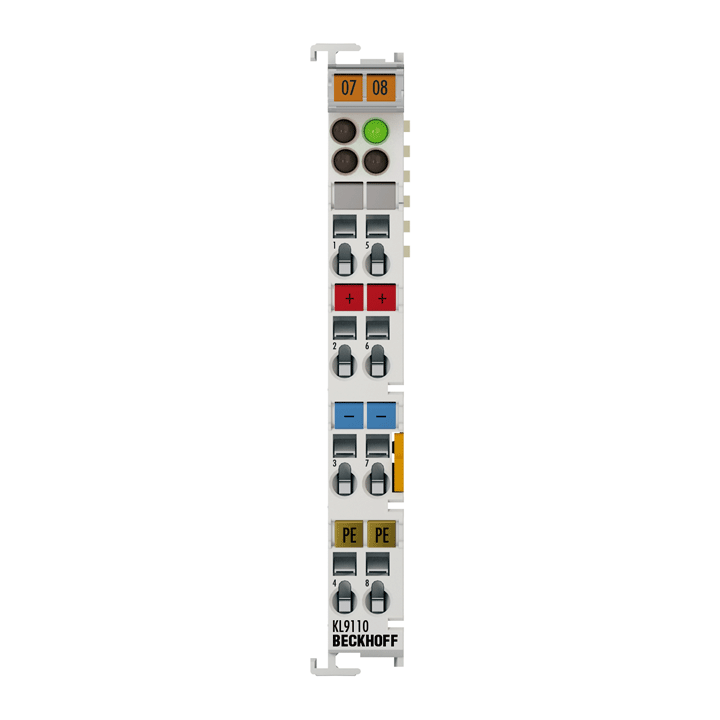

Beckhoff KL9110 Potansiyel Besleme Terminali, 24 V DC, Diagnostikli
0 - Yorum
Kategori
Marka
Stok Kodu
273636
Garanti Süresi
24 Ay
Fiyat
81,26 EUR + KDV
* 1.036,76 TL den başlayan taksitlerle!
3.802,82 TL
5.070,43 TL
%25
Beckhoff KL9110 Potansiyel Besleme Terminali, 24 V DC, Diagnostikli
KL9110 güç besleme terminali, 24 V DC standart voltajla çeşitli potansiyel gruplarının kurulmasını mümkün kılar. Besleme voltajını izlemek için, diyagnostikli terminal, güç besleme terminalinin durumunu iki giriş biti aracılığıyla Bus Kuplörüne bildirir. Böylelikle, kontrolörün fieldbus üzerinden dağıtılan çevresel voltajı kontrol etmesi mümkündür.
| Technical data | KL9110, KS9110 |
|---|---|
| Nominal voltage | 24 V DC |
| Current load | ≤ 10 A |
| Integrated fine-wire fuse | – |
| Diagnostics | yes |
| Power LED | green |
| Defect LED | – |
| Reported to K-bus | yes |
| PE contact | yes |
| Shield connection | – |
| Renewed infeed | yes |
| Connection facility to additional power contact | 1 |
| K-bus, looped through | yes |
| Bit width in the process image | 1 |
| Electrical connection to DIN rail | – |
| Current consumption K-bus | typ. 10 mA |
| Electrical isolation | yes |
| Housing width | 12 mm |
| Weight | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, GL, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | Labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 |
s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |
*s: solid wire; st: stranded wire; f: with ferrule
