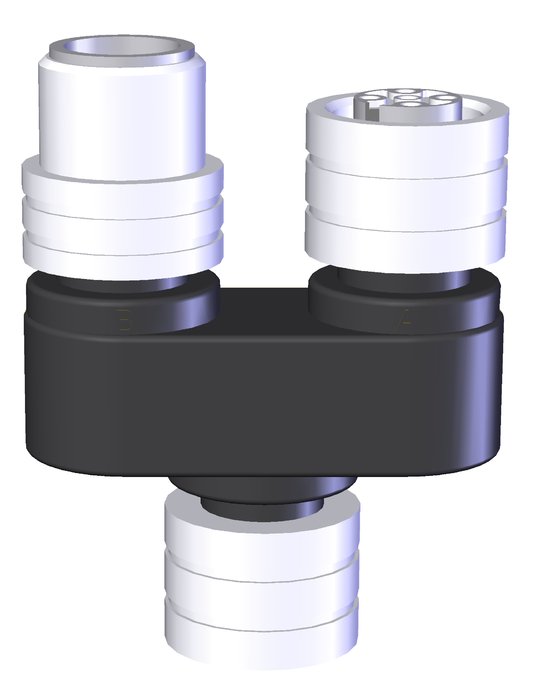

Euchner AC-YD-SBB-097627 IO-Link değerlendirmesi olmadan M12 Y-Dağıtıcı
IO-Link değerlendirmesi olmadan anahtar zincirlerinde AR / BR güvenlik anahtarlarının seri bağlantısı için
Y dağıtıcı M12, 2 x 5 pimli, 1 x 8 pimli
Düz fiş konnektörü
Mechanical values and environment
Material | |
Contact carrier coupling | PA GF, self-extinguishing |
Contact carrier plug | TPU, self-extinguishing |
Plug housing material | TPU, self-extinguishing |
Plug lock material | CuZn, nickel-plated |
Ambient temperature | -25 ... 90 °C |
Degree of protection | IP65/IP67 |
Insertion cycles | >100 |
Connection 3 | |
Type specification | M12 EN 61076-2-101 |
Connection | Plug connector M12 |
Connection type | Female plug |
Number of pins | 5 |
Plug lock | Screw terminal |
Connection 1 | |
Type specification | M12 EN 61076-2-101 |
Connection | Plug connector M12 |
Connection type | Female plug |
Number of pins | 8 |
Plug lock | Screw terminal |
Connection 2 | |
Type specification | M12 EN 61076-2-101 |
Connection | Plug connector M12 |
Connection type | Male plug |
Number of pins | 5 |
Plug lock | Screw terminal |
Electrical connection ratings
Rated voltage | 30 V |
Nominal current | |
At 40°C | 2 A |
Rated voltage | 36 V |
Degree of contamination according to EN 60664-1 | 3 |
