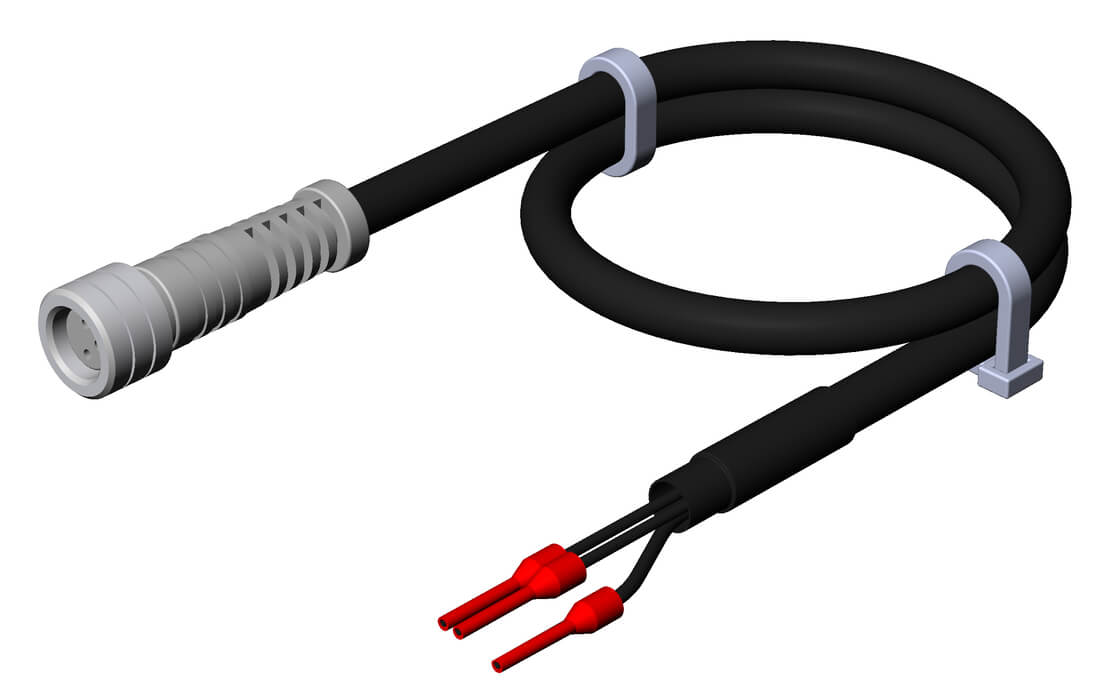

Euchner C-M08F03-02X025PV03,0-ES-077935
3 pinli, 3m M8 fiş konnektörlü bağlantı kablosu
- M8 dişi fiş, 3 pimli
- Düz fiş konnektörü
- PVC kablo
- Kablo uzunluğu 3 m
- Uçan kurşunla
Mechanical values and environment
Cable ambient temperature (dynamic) | -5 ... 70 °C |
Cable ambient temperature (static) | -25 ... 80 °C |
Dynamic bending radius | 10x cable diameter |
Static bending radius | 5x cable diameter |
Insulating material group | II |
Sheath material | PVC |
Conductor insulation material | PVC |
Conductor material | Cu flexible wire bare |
Fire behavior | Self-extinguishing and flame retardant according to IEC 60332-1-2 |
Resistance to media | Largely resistant to certain oils, acids and alkali |
Drag chain suitability | No |
Silicone-free | Yes |
UV resistance | Yes |
Tightening torque | 0,4 Nm |
Number of conductors | 2 |
Type of cable | straight |
Cable length | 3 m |
Cable diameter | |
Approx. | 4,6 mm |
Conductor cross-section | 0.25 mm² |
Conductor identification | Color code |
Sheath color | Black |
Connection 1 | |
Degree of protection | IP67 |
Plug lock material | CuZn nickel-plated |
Designation of plug connector | M8x1 |
Insertion cycles | min.100 |
Connection | Plug connector M8x1 |
Connection type | Female plug |
Cable outlet | straight |
Number of pins | 3 |
Plug lock | Screw connection |
Plug housing material | PUR |
Connection 2 | |
Conductor end | Cable end sleeve |
Connection | Flying lead |
Electrical connection ratings
Specific capacitance, conductor/conductor | 120 nF/km |
Specific capacitance, conductor/screen | 160 nF/km |
Rated voltage | 60 V |
Rated surge voltage according to IEC 60664-1 | 1500 V |
Degree of contamination according to EN 60664-1 | 3 |
Specific cable resistance | |
At 20°C | max.79 Ω/km |
Cable screening | Yes |
Test voltage | 0,5 kV |
Specific inductance | 0,65 mH/km |
