Euchner C-M12F05-05X034PV10,0-MA-100184 Bağlantı Kablosu
0 - Yorum
Kategori
Marka
Stok Kodu
273223
Garanti Süresi
24 Ay
Fiyat
71,79 EUR + KDV
* 915,94 TL den başlayan taksitlerle!
3.359,67 TL

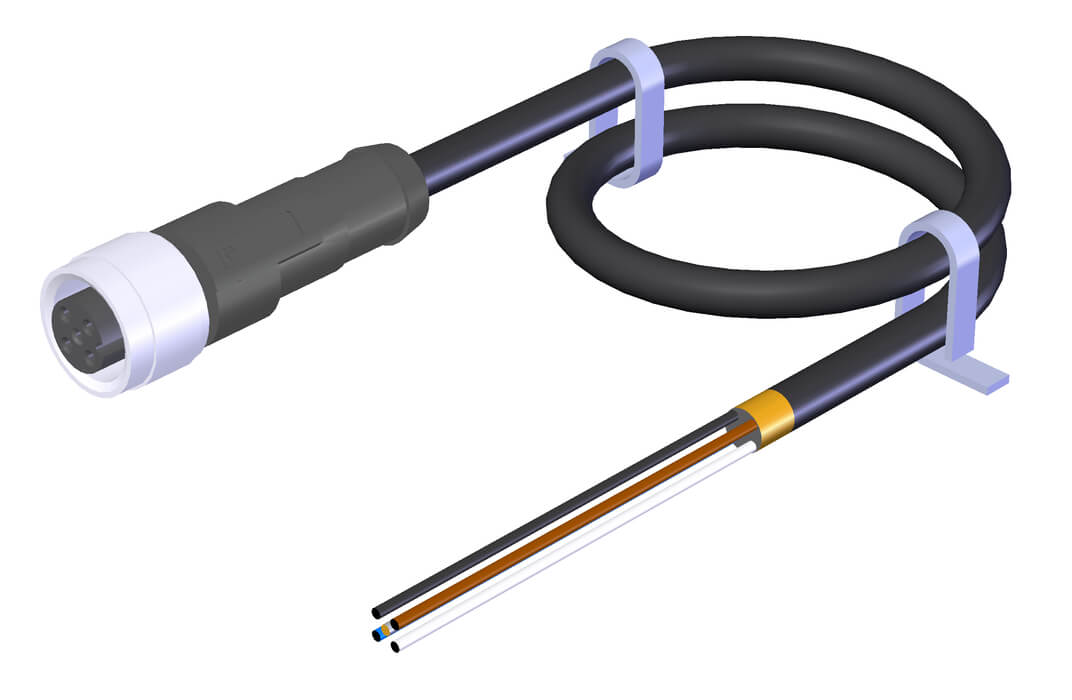

Euchner C-M12F05-05X034PV10,0-MA-100184
Düz fiş konnektörlü bağlantı kablosu M12, 5 pinli, 10m
M12 dişi fiş, 5 kutuplu
Düz fiş konnektörü
PVC kablo
Kablo uzunluğu 10 m
Uçan kurşunla
Approvals
Mechanical values and environment
| Cable ambient temperature (dynamic) | -5 ... +80 °C |
| Cable ambient temperature (static) | -25 ... +80 °C |
| Dynamic bending radius | 15 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Sheath material | PVC |
| Conductor insulation material | PVC |
| Conductor material | Cu flexible wire bare |
| Fire behavior | Flame retardant according to UL-Style 2464 |
| Drag chain suitability | No |
| UV resistance | Moderately UV-resistant |
| Number of conductors | 5 |
| Type of cable | straight |
| Cable length | 10 m |
| Cable diameter | |
| Approx. | 5,9 mm |
| Conductor cross-section | 0.34 mm² |
| Conductor identification | Color code |
| Sheath color | Black |
| Connection 1 | |
| Tightening torque | 0,5 Nm |
| Degree of protection | IP67 |
| Plug lock material | CuZn, nickel-plated |
| Insertion cycles | 100 |
| Insulating material group | I |
| Connection | Plug connectors M12x1 |
| Connection type | Female plug |
| Cable outlet | straight |
| Number of pins | 5 |
| Plug lock | Screw connection |
| Plug housing material | TPU |
| Connection 2 | |
| Conductor end | Sheath stripped |
| Connection | Flying lead |
Electrical connection ratings
| Nominal current | |
| At 25° C | 4 A |
| Rated voltage | 60 V |
| Overvoltage category according to IEC EN 60664-1 | III |
| Rated surge voltage according to IEC 60664-1 | 1500 V |
| Specific cable resistance | 58 Ω/km |
| Specific inductance | 0,53 mH/km |
| Specific capacitance | 100 nF/km |
| Connection 1 | |
| Degree of contamination according to EN 60664-1 | 3 |
