Euchner C-M12F08-08X025PV05,0-MA-100177 Fiş Konnektörlü Bağlantı Kablosu
0 - Yorum
Kategori
Marka
Stok Kodu
272998
Garanti Süresi
24 Ay
Fiyat
81,88 EUR + KDV
* 1.044,68 TL den başlayan taksitlerle!
3.831,88 TL

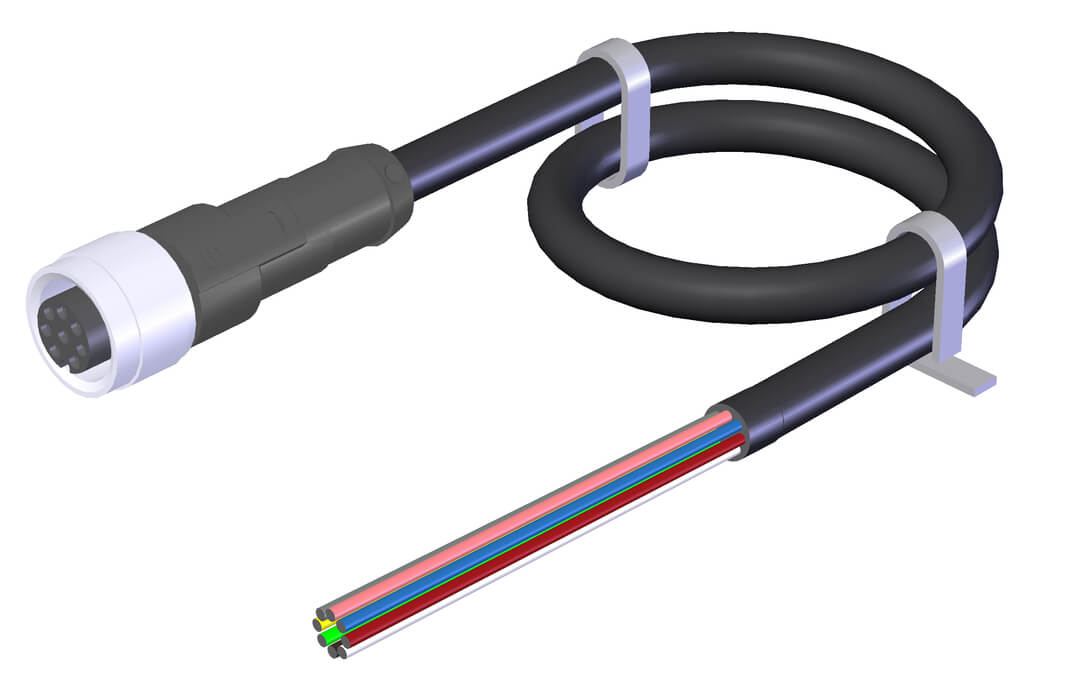

Euchner C-M12F08-08X025PV05,0-MA-100177 Fiş Konnektörlü Bağlantı Kablosu
M12, 8-pin, 5m
M12 dişi fiş, 8 pinli
Düz fiş konnektörü
PVC kablo
Kablo uzunluğu 5 m
Uçan kurşunla
Terminal assignment
View of connection side
Pin
Conductor coloring
1
WH
2
BN
3
GN
4
YE
5
GY
6
PK
7
BU
8
RD
|
View of connection side |
Pin |
Conductor coloring |
|---|---|---|
 |
1 |
WH |
|
2 |
BN |
|
|
3 |
GN |
|
|
4 |
YE |
|
|
5 |
GY |
|
|
6 |
PK |
|
|
7 |
BU |
|
|
8 |
RD |
Approvals
Mechanical values and environment
Cable ambient temperature (dynamic)
-5 ... +80 °C
Cable ambient temperature (static)
-25 ... +80 °C
Dynamic bending radius
15 x cable diameter
Static bending radius
5 x cable diameter
Sheath material
PVC
Conductor insulation material
PVC
Conductor material
Cu flexible wire bare
Fire behavior
Flame retardant according to UL-Style 2464
Drag chain suitability
No
UV resistance
Moderately UV-resistant
Number of conductors
8
Type of cable
straight
Cable length
5 m
Cable diameter
Approx.
5,9 mm
Conductor cross-section
0.25 mm²
Conductor identification
Color code
Sheath color
Black
Connection 1
Tightening torque
0,5 Nm
Degree of protection
IP67
Plug lock material
CuZn, nickel-plated
Insertion cycles
100
Insulating material group
I
Connection
Plug connectors M12x1
Connection type
Female plug
Cable outlet
straight
Number of pins
8
Plug lock
Screw connection
Plug housing material
TPU
Connection 2
Conductor end
Sheath stripped
Connection
Flying lead
Electrical connection ratings
Nominal current
At 25° C
2 A
Rated voltage
30 V
Overvoltage category according to IEC EN 60664-1
III
Rated surge voltage according to IEC 60664-1
800 V
Specific cable resistance
78 Ω/km
Specific inductance
0,51 mH/km
Specific capacitance
107 nF/km
Connection 1
Degree of contamination according to EN 60664-1
3
| Cable ambient temperature (dynamic) | -5 ... +80 °C |
| Cable ambient temperature (static) | -25 ... +80 °C |
| Dynamic bending radius | 15 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Sheath material | PVC |
| Conductor insulation material | PVC |
| Conductor material | Cu flexible wire bare |
| Fire behavior | Flame retardant according to UL-Style 2464 |
| Drag chain suitability | No |
| UV resistance | Moderately UV-resistant |
| Number of conductors | 8 |
| Type of cable | straight |
| Cable length | 5 m |
| Cable diameter | |
| Approx. | 5,9 mm |
| Conductor cross-section | 0.25 mm² |
| Conductor identification | Color code |
| Sheath color | Black |
| Connection 1 | |
| Tightening torque | 0,5 Nm |
| Degree of protection | IP67 |
| Plug lock material | CuZn, nickel-plated |
| Insertion cycles | 100 |
| Insulating material group | I |
| Connection | Plug connectors M12x1 |
| Connection type | Female plug |
| Cable outlet | straight |
| Number of pins | 8 |
| Plug lock | Screw connection |
| Plug housing material | TPU |
| Connection 2 | |
| Conductor end | Sheath stripped |
| Connection | Flying lead |
| Nominal current | |
| At 25° C | 2 A |
| Rated voltage | 30 V |
| Overvoltage category according to IEC EN 60664-1 | III |
| Rated surge voltage according to IEC 60664-1 | 800 V |
| Specific cable resistance | 78 Ω/km |
| Specific inductance | 0,51 mH/km |
| Specific capacitance | 107 nF/km |
| Connection 1 | |
| Degree of contamination according to EN 60664-1 | 3 |
