Euchner C-M26F12-12X1,00PU05,0-MA-077629 Bağlantı Kablosu
0 - Yorum
Kategori
Marka
Stok Kodu
273197
Garanti Süresi
24 Ay
Fiyat
270,95 EUR + KDV
* 3.457,06 TL den başlayan taksitlerle!
12.680,48 TL

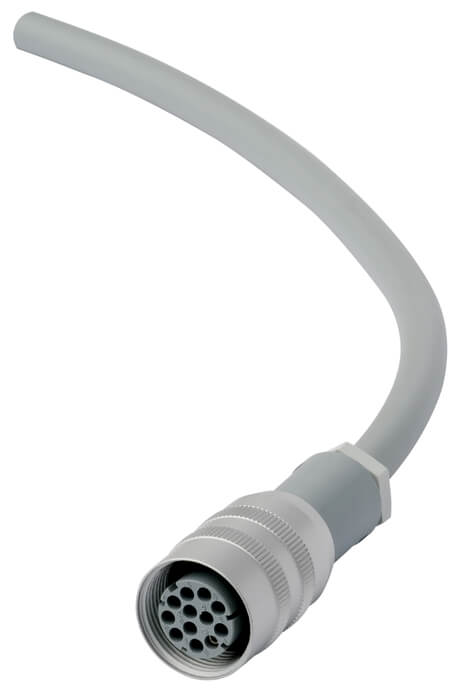

Euchner C-M26F12-12X1,00PU05,0-MA-077629
SR11 fiş konnektörlü bağlantı kablosu, 5m
Dişi fiş SR11, 11 pinli + PE
Düz fiş konnektörü
PUR kablosu
Kablo uzunluğu 5 m
Uçan kurşunla
Connector assignment
SR11 |
|
|---|---|
Pin |
Wire |
|
1 |
1 |
|
2 |
2 |
|
3 |
3 |
|
4 |
4 |
|
5 |
5 |
|
6 |
6 |
|
7 |
7 |
|
8 |
8 |
|
9 |
9 |
|
10 |
10 |
|
11 |
11 |
 |
12 |
Mechanical values and environment
| Cable ambient temperature (dynamic) | -5 ... +70 °C |
| Cable ambient temperature (static) | -40 ... +80 °C |
| Dynamic bending radius | 12.5 x outer diameter |
| Static bending radius | 4 x outer diameter |
| Sheath material | PUR |
| Drag chain suitability | No |
| Number of conductors | 12 |
| Type of cable | straight |
| Cable length | 5 m |
| Cable diameter | |
| Approx. | 10,5 mm |
| Conductor cross-section | 1 mm² |
| Connection 1 | |
| Degree of protection | IP65 |
| Connection | Plug connector M26 x 1.5 |
| Connection type | Female plug |
| Cable outlet | straight |
| Number of pins | 12 |
| Plug lock | Screw connection |
| Plug housing material | PET |
| Connection 2 | |
| Conductor end | Sheath stripped |
| Connection | Flying lead |
Electrical connection ratings
| Rated voltage | 50 V |
| Test voltage | 1,5 kV |
