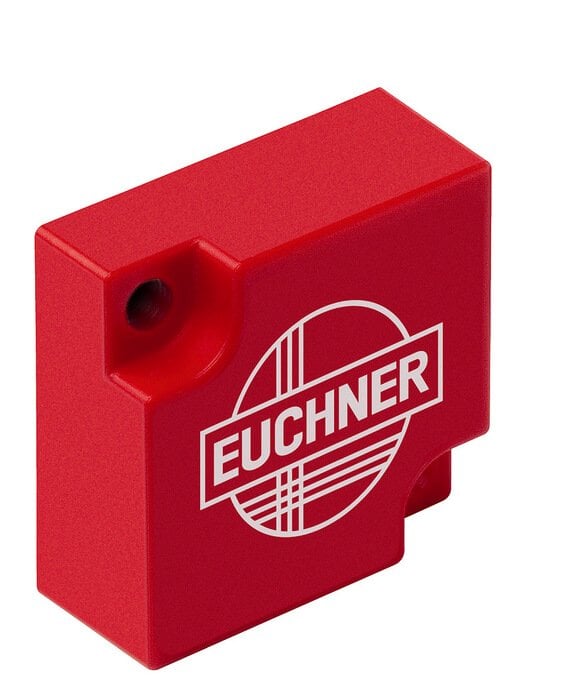

Euchner CCES-A-BPA 098775 Aküatör
Küp şeklindeki tasarım 40 x 40 mm
Approvals
Mechanical values and environment
Housing material | |
Housing | Plastic (PBT) |
Weight | |
Net | 0,025 kg |
Ambient temperature | -25 ... 70 °C |
Degree of protection | IP65/IP67/IP69/IP69K |
Installation orientation | Active face opposite read head |
Tightening torque | |
Fixing screws | max.1 Nm |
Electrical connection ratings
Power supply | Inductive via read head |
Work area
Distance s, actuator | |
Minimum distance for side approach direction | min.6 mm |
Switching hysteresis | |
With center offset m=0 | 1 ... 2 mm |
Operating distance | |
With center offset m=0 | 22 mm |
Assured release distance Sar | |
With center offset m=0 | max.58 mm |
Assured operating distance Sao | |
With center offset m=0 | min.18 mm |
