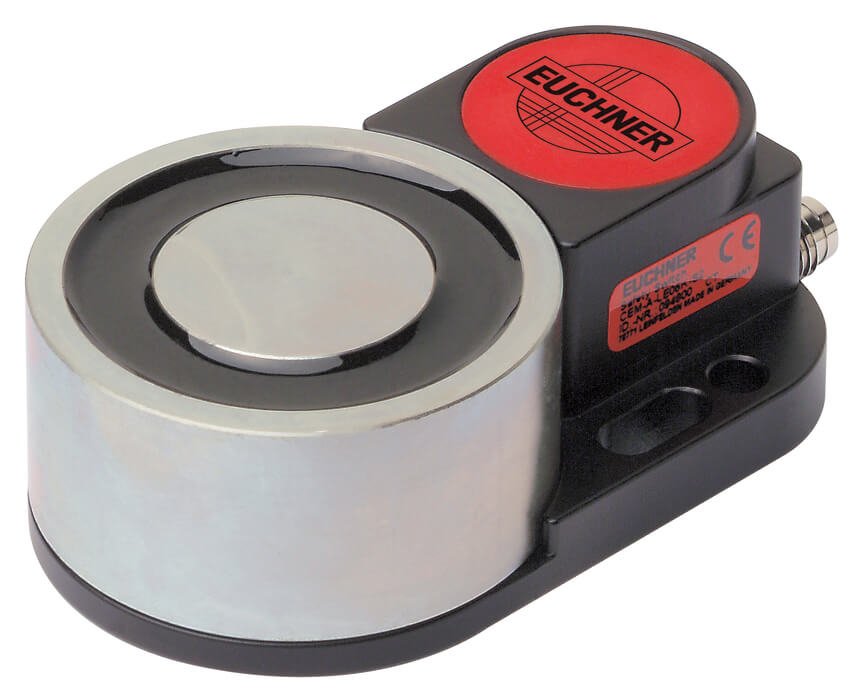

Euchner CEM-A-LE05R-S2 095792
Okuma kafası CEM-A-LE05 ... koruma kilitlemeli, koruma kilidi izlemesiz, kalıntı bırakmadan
- Koruma kilidi izlemesiz kapalı tutma özellikli okuma kafası
- Kilitleme kuvveti 650 N
- Remanans olmadan
- EN ISO 13849-1'e göre kategori 4'e kadar
- İki M5x16 emniyet vidası dahildir
Remanans olmadan
Solenoid kapatıldığında, remanans içermeyen okuma kafalarının manyetizasyonu giderilir. Bu amaçla, UB işletim gerilimi her zaman uygulanmalıdır.
Yaklaşım yönü
Tipik çalıştırma aralığı
Dahili bileşen arızası için garanti edilen ayırma mesafesine dikkat edin sar = 20 mm. Emniyet çıkışları güvenilir bir şekilde kapatılır.
Approvals
Mechanical values and environment
Material
Read head
Plastic (PPS)
Solenoid
Steel, nickel-plated
Housing material
Housing
Die-cast aluminum
Weight
Net
0,3 kg
Ambient temperature
-25 ... 50 °C
Degree of protection
IP67
Mechanical life
In case of use as door stop, and 1 Joule impact energy
1 x 106
Installation orientation
Any
Switching frequency
Solenoid
max.2 Hz
Connection
X1, solenoid (yellow LED integrated in the plug)
Plug connector M8x1, 4-pin male (with snap-action / screw terminal)
X3, read head
Plug connector M8x1, 3-pin male (with snap-action / screw terminal)
Cable length
max.25 m
Guard locking principle
Open-circuit current principle
Locking force F
(Not monitored, in axial direction) at UCM≥24V
650 N
Adhesive force
due to remanence
0,5 N
Electrical connection ratings
Operating voltage DC
UCM
24 V DC -15% ... 10%
UB
24 V DC -15% ... 10%
Current consumption
On UB at UCM≥0V
12 mA
On UCM at 24V
15 mA
On UB at UCM≥24V
100 mA
Connection rating
2,8 W
Solenoid duty cycle
100 %
Work area
Switching hysteresis
With center offset m=0
0,7 mm
Assured release distance Sar
max.20 mm
Assured operating distance Sao
With center offset m=0
min.2 mm
Center offset
-2,5 ... +2,5 mm
Approvals
Mechanical values and environment
Material | |
Read head | Plastic (PPS) |
Solenoid | Steel, nickel-plated |
Housing material | |
Housing | Die-cast aluminum |
Weight | |
Net | 0,3 kg |
Ambient temperature | -25 ... 50 °C |
Degree of protection | IP67 |
Mechanical life | |
In case of use as door stop, and 1 Joule impact energy | 1 x 106 |
Installation orientation | Any |
Switching frequency | |
Solenoid | max.2 Hz |
Connection | |
X1, solenoid (yellow LED integrated in the plug) | Plug connector M8x1, 4-pin male (with snap-action / screw terminal) |
X3, read head | Plug connector M8x1, 3-pin male (with snap-action / screw terminal) |
Cable length | max.25 m |
Guard locking principle | Open-circuit current principle |
Locking force F | |
(Not monitored, in axial direction) at UCM≥24V | 650 N |
Adhesive force | |
due to remanence | 0,5 N |
Electrical connection ratings
Operating voltage DC | |
UCM | 24 V DC -15% ... 10% |
UB | 24 V DC -15% ... 10% |
Current consumption | |
On UB at UCM≥0V | 12 mA |
On UCM at 24V | 15 mA |
On UB at UCM≥24V | 100 mA |
Connection rating | 2,8 W |
Solenoid duty cycle | 100 % |
Work area
Switching hysteresis | |
With center offset m=0 | 0,7 mm |
Assured release distance Sar | max.20 mm |
Assured operating distance Sao | |
With center offset m=0 | min.2 mm |
Center offset | -2,5 ... +2,5 mm |
