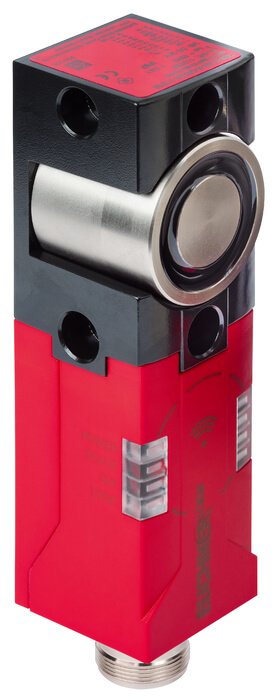

Euchner CEM-I2-AR-M-C40-SH-113739 Transponder Kodlu Emniyet Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273211
Garanti Süresi
24 Ay
Fiyat
975,81 EUR + KDV
* 12.450,39 TL den başlayan taksitlerle!
45.668,00 TL
Euchner CEM-I2-AR-M-C40-SH-113739 Transponder Kodlu Emniyet Anahtarı
CEM-AR-C40
- Proses koruması ve entegre değerlendirme elektroniği için kapalı kilitlemeli güvenlik anahtarları
- 600 N kilitleme kuvvetine sahip solenoid
- 3 seviyede yapışkan kuvvet ayarı
- Seri olarak 20'ye kadar anahtar
- Kısa devre izleme
- 2 güvenlik çıkışı (yarı iletken çıkışlar)
- Kapı pozisyonunun izlenmesi için EN ISO 13849-1'e göre kategori 4 / PL e'ye kadar
- M23 fiş konnektörlü
- Çoklu kod
- Kapı izleme çıkışı
Çoklu kod değerlendirmesi
Her uygun aktüatör anahtar tarafından algılanır.
Koruma kilitleme tipi
CEM ‑ I2 Kapalı tutma, enerjiyle AÇIK duruma getirilir ve KAPALI enerjisiyle serbest bırakılır.
Connector assignment
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connecting cable |
|---|---|---|---|---|
 |
1 |
IMP |
Control voltage, guard locking solenoid, 24 V DC |
VT |
|
2 |
FI1A |
Enable input for channel 1 |
RD |
|
|
3 |
FI1B |
Enable input for channel 2 |
GY |
|
|
4 |
FO1A |
Safety output, channel 1 |
RD/BU |
|
|
5 |
FO1B |
Safety output, channel 2 |
GN |
|
|
6 |
UB |
Operating voltage, 24 V DC |
BU |
|
|
7 |
RST |
Reset input |
GY/PK |
|
|
8 |
OT |
Door monitoring output |
GN/WH |
|
|
9 |
OI |
Diagnostic output |
YE/WH |
|
|
10 |
OL |
Guard locking monitoring output |
GY/WH |
|
|
11 |
- |
n.c. |
BK |
|
|
12 |
FE |
Function earth (must be connected to meet the EMC requirements) |
GN/YE |
|
|
13 |
- |
n.c. |
PK |
|
|
14 |
- |
n.c. |
BN/GY |
|
|
15 |
- |
n.c. |
BN/YE |
|
|
16 |
- |
n.c. |
BN/GN |
|
|
17 |
- |
n.c. |
WH |
|
|
18 |
- |
n.c. |
YE |
|
|
19 |
0 V UB |
Operating voltage, 0 V |
BN |
Approvals
Mechanical values and environment
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Material | |
| Read head | Plastic (PBT) |
| Solenoid | Nickel-plated steel |
| Housing material | |
| Housing | Aluminum |
| Weight | 0,64 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP65/IP67 |
| Mechanical life | |
| In case of use as door stop, and 1 Joule impact energy | 1 x 106 |
| Installation orientation | Any |
| Tightening torque | |
| Fixing screws | 4 Nm |
| Ready delay | 12 s |
| Connection | Plug connector M23, 19-pin |
| Locking force Fmax | |
| In axial direction | 600 N |
| Adhesive force | |
| adjustable | 0, ca. 30, ca. 50 N |
Electrical connection ratings
| Extension of risk time according to EN 60947-5-3 per device | max.5 ms |
| Operating voltage | |
| DC | 24 V -15% ... +15% |
| Rated conditional short-circuit current | 100 A |
| Current consumption | |
| I UB, guard locking inactive | 80 mA |
| I UB, guard locking active | 350 mA |
| I IMP, control input | min.20 mA |
| Fusing | |
| External (operating voltage UB) | 1 A |
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 0,5 kV |
| EMC protection requirements | In acc. with EN 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Turn-on time | 700 ... 2500 ms |
| Safety class | III |
| Discrepancy time | max.10 ms |
| Risk time according to EN 60947-5-3 | max.260 ms |
| FO1A/FO1B | |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Switching frequency, electrical | 0,5 Hz |
| Switching current | |
| Per output | 1 ... 150 mA |
| Output voltage | |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| HIGH U(FO1A) / U(FO1B) | UB - 1,5 ... UB V DC |
| Utilization category acc. to EN 60947-5-2 | |
| DC-13 | DC-13 24V 150mA |
| Off-state current Ir | max.0,25 mA |
| OT, OI, OL | |
| Type of output | Semiconductor output, p-switching, short circuit-proof |
| Switching current | |
| Per monitoring output | max.50 mA |
| Output voltage | 0,8 x UB ... UB V DC |
Work area
| Assured release distance Sar | 18 mm |
| Center offset | |
| Solenoid | -5 ... +5 mm |
Reliability values according to EN ISO 13849-1
| Monitoring of the position of the safety guard | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.5 x 10-9 |
| Mission time | 20 y |
