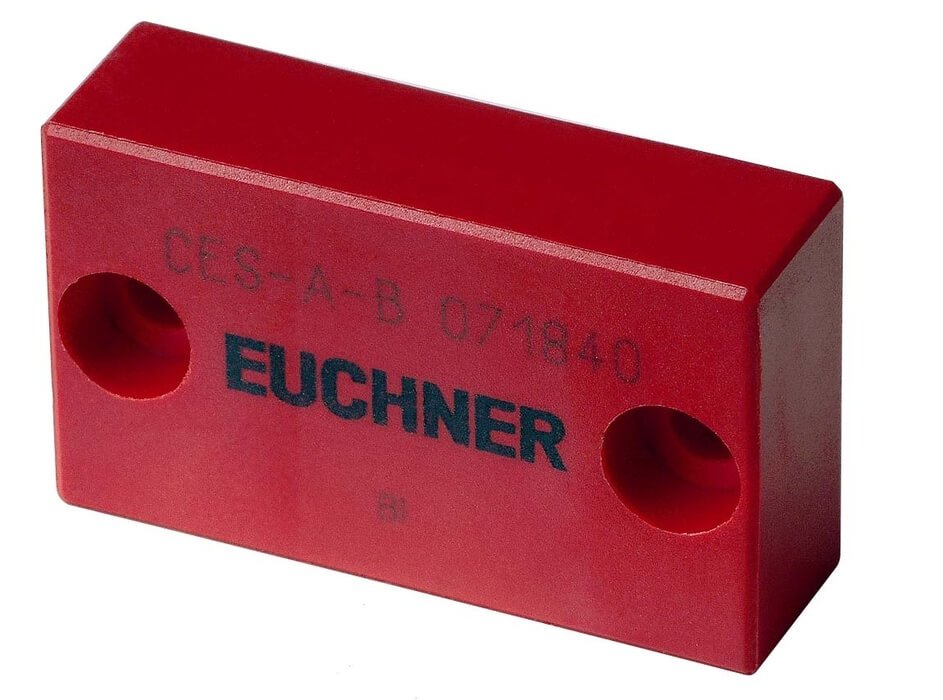

Euchner CES-A-BBA 071840 Aküatör CES-A-BBA
Küp şeklindeki tasarım 42 x 25 mm
İki adet M4x14 emniyet vidası dahildir
Approvals
Mechanical values and environment
Housing material | |
Housing | Plastic (PPS) |
Weight | |
Net | 0,02 kg |
Ambient temperature | -25 ... 70 °C |
Degree of protection | IP65/IP67/IP69K |
Installation orientation | Active face opposite read head |
Tightening torque | |
Fixing screws | max.1 Nm |
Electrical connection ratings
Power supply | Inductive via read head |
Work area
Distance s, actuator | |
Minimum distance for side approach direction | min.4 mm |
Switching hysteresis | |
With center offset m=0 | min.1 mm |
Operating distance | |
With center offset m=0 | 18 mm |
Assured release distance Sar | |
With center offset m=0 | max.45 mm |
Assured operating distance Sao | |
With center offset m=0 | min.15 mm |
