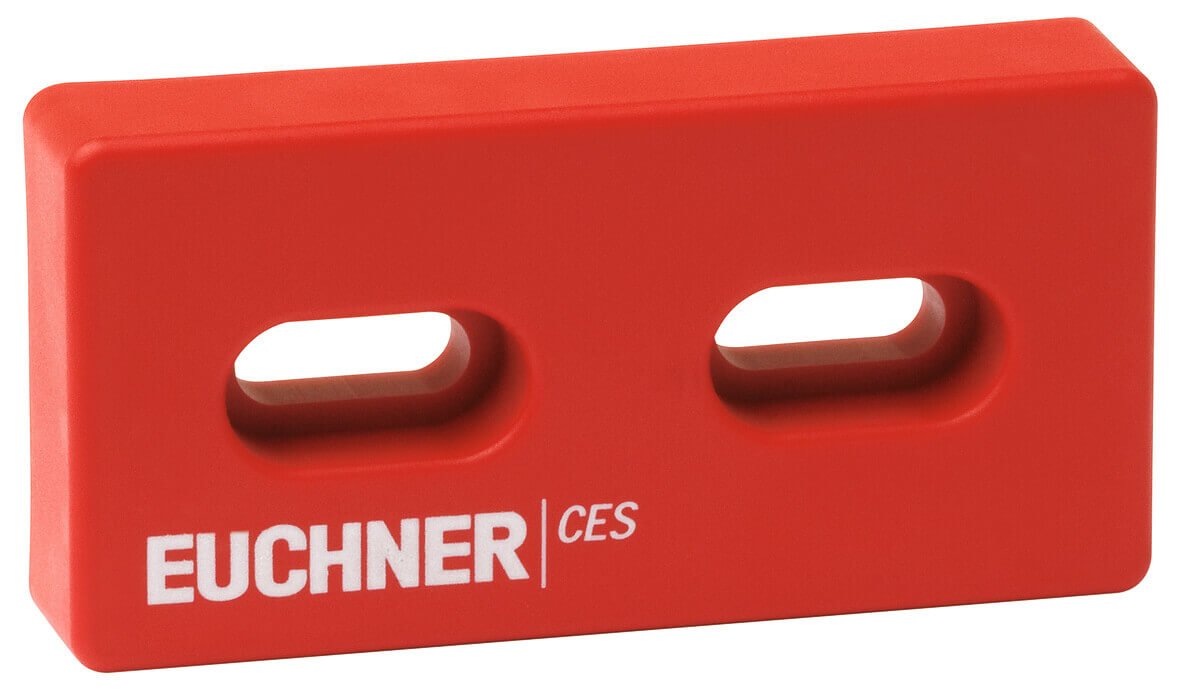

Euchner CES-A-BRN-100251 Aküatör
0 - Yorum
Kategori
Marka
Stok Kodu
273214
Garanti Süresi
24 Ay
Fiyat
232,13 EUR + KDV
* 2.961,73 TL den başlayan taksitlerle!
10.863,63 TL
Euchner CES-A-BRN-100251 Aküatör CES-A-BRN
Küp şeklindeki tasarım 80 x 40 mm
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Plastic (PPS) |
| Weight | |
| Net | 0,06 kg |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP67 |
| Mounting method | Surface mounting on steel |
| Installation orientation | Active face opposite read head |
| Tightening torque | |
| Fixing screws | max.0,5 Nm |
Electrical connection ratings
| Power supply | Inductive via read head |
Work area
| Distance s, actuator | |
| Minimum distance for side approach direction | min.6 mm |
| Switching hysteresis | |
| With center offset m=0 | 3 mm |
| Operating distance | |
| With center offset m=0 | 27 mm |
| Assured release distance Sar | |
| With center offset m=0 | max.75 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.20 mm |
