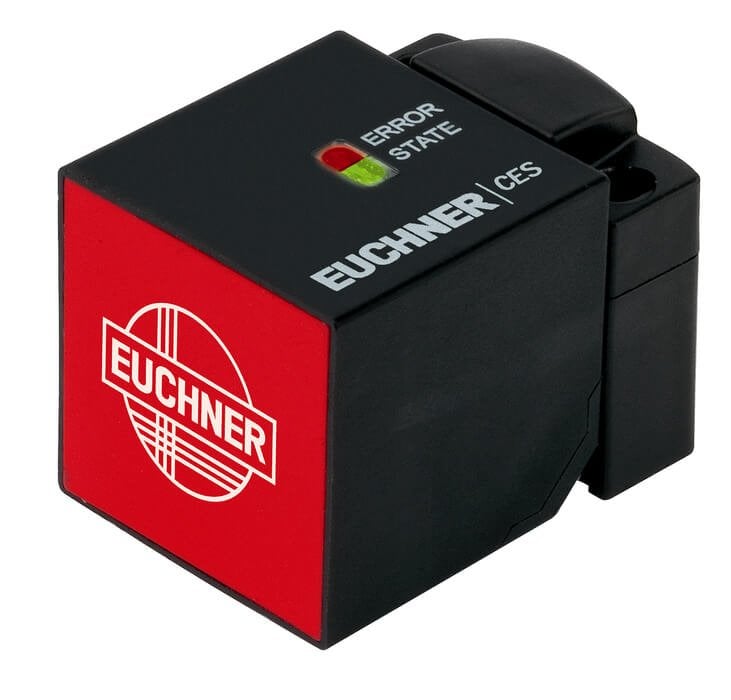

Euchner CES-AR-C01-AH-SA 098941 Temassız Güvenlik Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273135
Garanti Süresi
24 Ay
Fiyat
490,58 EUR + KDV
* 6.259,28 TL den başlayan taksitlerle!
22.959,02 TL
Euchner CES-AR-C01-AH-SA 098941 Temassız Güvenlik Anahtarı
Entegre değerlendirme elektronikli güvenlik anahtarı
Seri olarak 20'ye kadar anahtar
Kısa devre izleme
2 güvenlik çıkışı (yarı iletken çıkışlar)
EN ISO 13849-1'e göre Kategori 4 / PL e
Unicode
Yaklaşma yönü
90 ° 'lik adımlarla ayarlanabilir
Kısa devre izleme
Anahtar, OA / OB çıkış hatlarında kendi saat sinyalini üretir. Kontrol sistemlerine ve rölelere bağlanırken bu hususa dikkat edin.
Unicode değerlendirmesi
Her aktüatör yüksek oranda kodlanmıştır (unicode). Anahtar, yalnızca öğretilmiş aktüatörleri algılar. Ek aktüatörler öğretilebilir.
Yalnızca son öğretilen aktüatör algılanır.
EN 13849-1'e göre kategori
Aşağıdakiler için uygun dahili izleme ile yedekli olarak tasarlanmış iki yarı iletken çıkışı (güvenlik çıkışları) sayesinde:
EN 13849-1'e göre Kategori 4 / PL e
Önemli: EN ISO 13849-1'e göre belirtilen kategoriye ulaşmak için, her iki güvenlik çıkışı (OA ve OB) değerlendirilmelidir.
LED göstergesi
DURUM Durum LED'i
DIA Teşhis LED'i
Ek bağlantılar
OUT İzleme çıkışı (yarı iletken)
RST Sıfırlama girişi
Connector assignment
Plug connector (view of connection side)
Pin
Designation
Function
Conductor coloring of connecting cable
1
IB
Enable input for channel 2
WH
2
UB
Power supply, DC 24 V
BN
3
OA
Safety output, channel 1
GN
4
OB
Safety output, channel 2
YE
5
OUT
Monitoring output
GY
6
IA
Enable input for channel 1
PK
7
0V
Ground, DC 0 V
BU
8
RST
Reset input
RD
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connecting cable |
|---|---|---|---|---|
 |
1 |
IB |
Enable input for channel 2 |
WH |
|
2 |
UB |
Power supply, DC 24 V |
BN |
|
|
3 |
OA |
Safety output, channel 1 |
GN |
|
|
4 |
OB |
Safety output, channel 2 |
YE |
|
|
5 |
OUT |
Monitoring output |
GY |
|
|
6 |
IA |
Enable input for channel 1 |
PK |
|
|
7 |
0V |
Ground, DC 0 V |
BU |
|
|
8 |
RST |
Reset input |
RD |
Approvals
Mechanical values and environment
Shock and vibration resistance
In acc. with EN 60947-5-3
Housing material
Housing
Plastic, PBT
Weight
Net
0,12 kg
Ambient temperature
-20 ... 55 °C
Degree of protection
IP67
Mounting distance
min.40 mm
Installation orientation
Any
Tightening torque
Fixing screws
max.1 Nm
Ready delay
10 s
Switching frequency
max.1 Hz
Connection
M12 plug connector, 8-pin
Electrical connection ratings
Extension of risk time according to EN 60947-5-3 per device
max.5 ms
Operating voltage DC
UB
24 V DC 15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Current consumption
No load on outputs
max.50 mA
Fusing
External (operating voltage)
0,25 ... 8 A
Rated insulation voltage Ui
300 V
Rated impulse withstand voltage Uimp
1,5 kV
EMC protection requirements
In acc. with EN IEC 60947-5-3
Degree of contamination (external, according to EN 60947-1)
3
Turn-on time
Safety outputs
max.400 ms
Safety class
III
Risk time according to EN 60947-5-3
Single device
max.260 ms
Monitoring output OUT
Type of output
p-switching, short circuit-proof
Switching current
max.200 mA
Output voltage
0,8 x UB ... UB V DC
Safety outputs OA/OB
Test pulses
max.1 ms
Type of output
Semiconductor outputs, p-switching, short circuit-proof
Switching current
per safety output
1 ... 400 mA
Output voltage
LOW U(OA) / U(OB)
0 ... 1 V DC
HIGH U(OA) / U(OB)
UB-1,5 ... UB V DC
Utilization category acc. to EN 60947-5-2
DC-13
24V 400mA
Rated conditional short-circuit current
max.100 A
Off-state current Ir
max.0,25 mA
Discrepancy time
max.10 ms
Work area
Repeat accuracy R
According to EN 60947-5-2
≤ 10
Other
For the approval acc. to UL the following applies
Operation only with UL class 2 power supply, or equivalent measures
Reliability values according to EN ISO 13849-1
Monitoring of the safety guard position
Category
4
Performance Level
PL e
PFHD
2.1 x 10-9
Mission time
20
In combination with Actuator CES-A-BPA
Actuating range
Operating distance
22 mm
Assured release distance Sar
max.58 mm
Assured operating distance Sao
min.18 mm
Switching hysteresis
min.1 mm
In combination with Actuator CES-A-BBA
Actuating range
Operating distance
18 mm
Assured release distance Sar
max.45 mm
Assured operating distance Sao
min.15 mm
Switching hysteresis
min.1 mm
In combination with Actuator CES-A-BDA-18-156935
Actuating range
Operating distance
19 mm
Assured release distance Sar
max.45 mm
Assured operating distance Sao
min.10 mm
Switching hysteresis
min.1 mm
In combination with Actuator CES-A-BRN-100251
Actuating range
Operating distance
27 mm
Assured release distance Sar
max.75 mm
Assured operating distance Sao
min.20 mm
Switching hysteresis
3 mm
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Housing material | |
| Housing | Plastic, PBT |
| Weight | |
| Net | 0,12 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Mounting distance | min.40 mm |
| Installation orientation | Any |
| Tightening torque | |
| Fixing screws | max.1 Nm |
| Ready delay | 10 s |
| Switching frequency | max.1 Hz |
| Connection | M12 plug connector, 8-pin |
| Extension of risk time according to EN 60947-5-3 per device | max.5 ms |
| Operating voltage DC | |
| UB | 24 V DC 15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
| Current consumption | |
| No load on outputs | max.50 mA |
| Fusing | |
| External (operating voltage) | 0,25 ... 8 A |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| EMC protection requirements | In acc. with EN IEC 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Turn-on time | |
| Safety outputs | max.400 ms |
| Safety class | III |
| Risk time according to EN 60947-5-3 | |
| Single device | max.260 ms |
| Monitoring output OUT | |
| Type of output | p-switching, short circuit-proof |
| Switching current | max.200 mA |
| Output voltage | 0,8 x UB ... UB V DC |
| Safety outputs OA/OB | |
| Test pulses | max.1 ms |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Switching current | |
| per safety output | 1 ... 400 mA |
| Output voltage | |
| LOW U(OA) / U(OB) | 0 ... 1 V DC |
| HIGH U(OA) / U(OB) | UB-1,5 ... UB V DC |
| Utilization category acc. to EN 60947-5-2 | |
| DC-13 | 24V 400mA |
| Rated conditional short-circuit current | max.100 A |
| Off-state current Ir | max.0,25 mA |
| Discrepancy time | max.10 ms |
| Repeat accuracy R | |
| According to EN 60947-5-2 | ≤ 10 |
| For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
| Monitoring of the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 2.1 x 10-9 |
| Mission time | 20 |
| Operating distance | 22 mm |
| Assured release distance Sar | max.58 mm |
| Assured operating distance Sao | min.18 mm |
| Switching hysteresis | min.1 mm |
| Operating distance | 18 mm |
| Assured release distance Sar | max.45 mm |
| Assured operating distance Sao | min.15 mm |
| Switching hysteresis | min.1 mm |
| Operating distance | 19 mm |
| Assured release distance Sar | max.45 mm |
| Assured operating distance Sao | min.10 mm |
| Switching hysteresis | min.1 mm |
| Operating distance | 27 mm |
| Assured release distance Sar | max.75 mm |
| Assured operating distance Sao | min.20 mm |
| Switching hysteresis | 3 mm |
