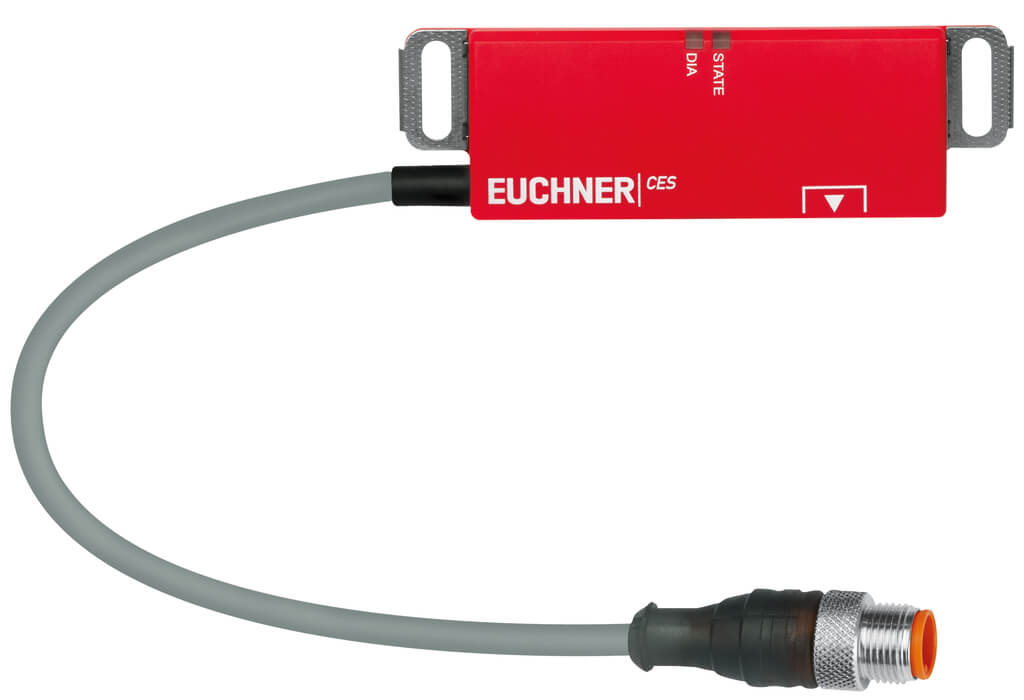

Euchner CES-AR-CR2-CH-SA-105745 Temassız Emniyet Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273167
Garanti Süresi
24 Ay
Fiyat
359,42 EUR + KDV
* 4.585,90 TL den başlayan taksitlerle!
16.821,07 TL
Euchner CES-AR-CR2-CH-SA-105745
Temassız emniyet anahtarı, fiş konnektörü M12, PUR
- Entegre değerlendirme elektronikli güvenlik anahtarı
- Seri olarak 20'ye kadar anahtar
- Kısa devre izleme
- 2 güvenlik çıkışı (yarı iletken çıkışlar)
- Kapı sağa doğru
- EN ISO 13849-1'e göre Kategori 4 / PL e
- Bağlantı kablosu PUR, 1 m, fiş konnektörü M12, 8 damarlı
- Çoklu kod
- İki adet M4x14 emniyet vidası dahildir
Kısa devre izleme
Anahtar, OA / OB çıkış kablolarında kendi saat sinyalini üretir.
Kontrol sistemlerine ve rölelere bağlanırken bu hususa dikkat edin.
Çoklu kod değerlendirmesi
Her uygun aktüatör anahtar tarafından algılanır.
EN 13849-1'e göre kategori
Aşağıdakiler için uygun dahili izleme ile yedekli olarak tasarlanmış iki yarı iletken çıkışı (güvenlik çıkışları) sayesinde:
EN 13849-1'e göre Kategori 4 / PL e
Önemli: EN ISO 13849-1'e göre belirtilen kategoriye ulaşmak için, her iki güvenlik çıkışı (OA ve OB) değerlendirilmelidir.
LED göstergesi
DURUM Durum LED'i
DIA Teşhis LED'i
Ek bağlantılar
OUT İzleme çıkışı (yarı iletken)
RST Sıfırlama girişi
Approach directions
Tipik çalıştırma aralığı
(Aktüatör CES-A-BLN ... plastik üzerine montaj durumunda emniyet anahtarı CES-AR-C.2 -... ile bağlantılı olarak)
Figure
Aktüatör ve güvenlik anahtarı için yandan yaklaşma yönü için, yan lobların çalıştırma aralığının girilmemesi için minimum s = 6 mm mesafe korunmalıdır.
Attention:
The actuating range may vary depending on the substrate material and installation situation.
Connector assignment
Plug connector (view of connection side)
Pin
Designation
Function
Conductor coloring of connecting cable
1
IB
Enable input for channel 2
WH
2
UB
Power supply, DC 24 V
BN
3
OA
Safety output, channel 1
GN
4
OB
Safety output, channel 2
YE
5
OUT
Monitoring output
GY
6
IA
Enable input for channel 1
PK
7
0V
Ground, DC 0 V
BU
8
RST
Reset input
RD
Approvals
Mechanical values and environment
Cable ambient temperature (dynamic)
-25 ... 65 °C
Cable ambient temperature (static)
-25 ... 65 °C
Shock and vibration resistance
In acc. with EN 60947-5-3
Dynamic bending radius
10 x cable diameter
Static bending radius
5 x cable diameter
Housing material
Housing
Plastic, PBT
Weight
Net
0,09 kg
Degree of protection
IP67
Mounting method
Surface mounting on metal
Mounting distance
Between 2 switches or 2 actuators
min.120 mm
Installation orientation
Any
Tightening torque
Fixing screws
max.1 Nm
Ready delay
10 s
Switching frequency
max.1 Hz
Connection
Connection cable PUR, length 1m with plug connector M12 8-pin
Electrical connection ratings
Extension of risk time according to EN 60947-5-3 per device
max.5 ms
Operating voltage DC
UB
24 V DC 15% ... 15% Regulated, residual ripple < 5 %
Current consumption
max.50 mA
Fusing
External (operating voltage)
0,25 ... 8 A
Rated insulation voltage Ui
75 V
Rated impulse withstand voltage Uimp
1,5 kV
EMC protection requirements
In acc. with EN IEC 60947-5-3
Degree of contamination (external, according to EN 60947-1)
3
Turn-on time
Safety outputs
max.400 ms
Safety class
III
Risk time according to EN 60947-5-3
Single device
max.260 ms
Monitoring output OUT
Type of output
p-switching, short circuit-proof
Switching current
max.50 mA
Output voltage
0,8 x UB ... UB V DC
Safety outputs OA/OB
Test pulses
max.1 ms
Test-pulse interval
min.140 ms
Type of output
Semiconductor outputs, p-switching, short circuit-proof
Switching current
per safety output
1 ... 200 mA
Output voltage
HIGH U(OA) / U(OB)
UB-1,5V ... UB V DC
LOW U(OA) / U(OB)
0 ... 1 V DC
Utilization category acc. to EN 60947-5-2
DC-13
24V 200mA
Rated conditional short-circuit current
100 A
Off-state current Ir
max.0,25 mA
Discrepancy time
max.10 ms
Work area
Repeat accuracy R
According to EN 60947-5-2
≤ 10
Other
For the approval acc. to UL the following applies
Operation only with UL class 2 power supply, or equivalent measures
Reliability values according to EN ISO 13849-1
Monitoring of the safety guard position
Category
4
Performance Level
PL e
PFHD
1.9 x 10-9
Mission time
20
In combination with Actuator CES-A-BDN-06-104730
Actuating range
Operating distance
19 mm
Assured release distance Sar
In x/z direction
max.40 mm
In y direction
max.60 mm
Assured operating distance Sao
min.14 mm
Switching hysteresis
min.1 mm
In combination with Actuator CES-A-BLN-R2-100776, CES-A-BLN-U2-103450, CES-A-BLN-L2-104510, CES-A-BLN-U2-112710
Actuating range
Operating distance
15 mm
Assured release distance Sar
In y direction
max.60 mm
In x/z direction
max.40 mm
Assured operating distance Sao
min.10 mm
Switching hysteresis
min.1 mm
Tipik çalıştırma aralığı
(Aktüatör CES-A-BLN ... plastik üzerine montaj durumunda emniyet anahtarı CES-AR-C.2 -... ile bağlantılı olarak)
|
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connecting cable |
|---|---|---|---|---|
|
|
1 |
IB |
Enable input for channel 2 |
WH |
|
2 |
UB |
Power supply, DC 24 V |
BN |
|
|
3 |
OA |
Safety output, channel 1 |
GN |
|
|
4 |
OB |
Safety output, channel 2 |
YE |
|
|
5 |
OUT |
Monitoring output |
GY |
|
|
6 |
IA |
Enable input for channel 1 |
PK |
|
|
7 |
0V |
Ground, DC 0 V |
BU |
|
|
8 |
RST |
Reset input |
RD |
| Cable ambient temperature (dynamic) | -25 ... 65 °C |
| Cable ambient temperature (static) | -25 ... 65 °C |
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Dynamic bending radius | 10 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Housing material | |
| Housing | Plastic, PBT |
| Weight | |
| Net | 0,09 kg |
| Degree of protection | IP67 |
| Mounting method | Surface mounting on metal |
| Mounting distance | |
| Between 2 switches or 2 actuators | min.120 mm |
| Installation orientation | Any |
| Tightening torque | |
| Fixing screws | max.1 Nm |
| Ready delay | 10 s |
| Switching frequency | max.1 Hz |
| Connection | Connection cable PUR, length 1m with plug connector M12 8-pin |
| Extension of risk time according to EN 60947-5-3 per device | max.5 ms |
| Operating voltage DC | |
| UB | 24 V DC 15% ... 15% Regulated, residual ripple < 5 % |
| Current consumption | max.50 mA |
| Fusing | |
| External (operating voltage) | 0,25 ... 8 A |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| EMC protection requirements | In acc. with EN IEC 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Turn-on time | |
| Safety outputs | max.400 ms |
| Safety class | III |
| Risk time according to EN 60947-5-3 | |
| Single device | max.260 ms |
| Monitoring output OUT | |
| Type of output | p-switching, short circuit-proof |
| Switching current | max.50 mA |
| Output voltage | 0,8 x UB ... UB V DC |
| Safety outputs OA/OB | |
| Test pulses | max.1 ms |
| Test-pulse interval | min.140 ms |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Switching current | |
| per safety output | 1 ... 200 mA |
| Output voltage | |
| HIGH U(OA) / U(OB) | UB-1,5V ... UB V DC |
| LOW U(OA) / U(OB) | 0 ... 1 V DC |
| Utilization category acc. to EN 60947-5-2 | |
| DC-13 | 24V 200mA |
| Rated conditional short-circuit current | 100 A |
| Off-state current Ir | max.0,25 mA |
| Discrepancy time | max.10 ms |
| Repeat accuracy R | |
| According to EN 60947-5-2 | ≤ 10 |
| For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
| Monitoring of the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 1.9 x 10-9 |
| Mission time | 20 |
| Operating distance | 19 mm |
| Assured release distance Sar | |
| In x/z direction | max.40 mm |
| In y direction | max.60 mm |
| Assured operating distance Sao | min.14 mm |
| Switching hysteresis | min.1 mm |
| Operating distance | 15 mm |
| Assured release distance Sar | |
| In y direction | max.60 mm |
| In x/z direction | max.40 mm |
| Assured operating distance Sao | min.10 mm |
| Switching hysteresis | min.1 mm |
