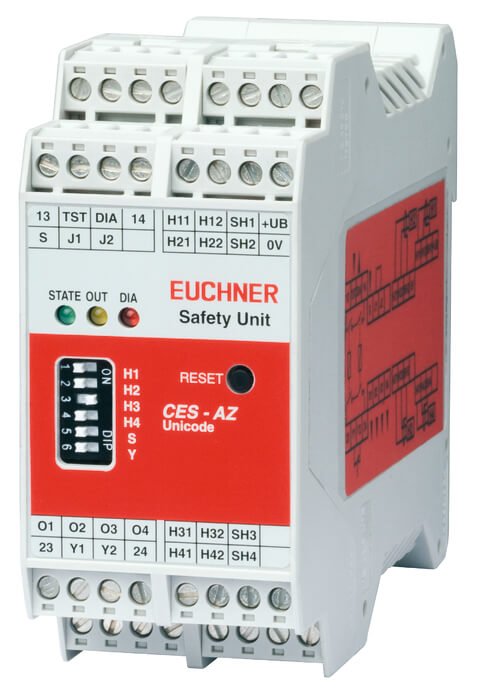

Euchner CES-AZ-UES-04B 105141 Değerlendirme Ünitesi
0 - Yorum
Kategori
Marka
Stok Kodu
273221
Garanti Süresi
24 Ay
Fiyat
906,27 EUR + KDV
* 11.563,13 TL den başlayan taksitlerle!
42.413,53 TL
Euchner CES-AZ-UES-04B 105141 Değerlendirme Ünitesi (4 okuma kafası için)
4 okuma kafası bağlanabilir
2 güvenlik çıkışı (çıkış başına 2 dahili olarak bağlı NO kontaklı röle kontakları)
Başlat düğmesi ve geri bildirim döngüsü bağlanabilir
Çoklu kod
Geçmeli bağlantı terminalleri
EN ISO 13849-1'e göre Kategori 4 / PL e
Çoklu kod değerlendirmesi
Her uygun aktüatör, değerlendirme birimi tarafından tespit edilir.
Güvenlik kilidi izleme
CES-AZ serisindeki değerlendirme üniteleri, aşırı hareket eden makine hareketleri sırasında personelin korunması için entegre koruma kilidine sahip okuma kafalarının kullanılmasını mümkün kılar. Aksesuarlarda uygun okuma başlıkları bulacaksınız
EN ISO 13849-1'e göre kategori
Güvenlik yolu başına 2 dahili, izlenen normalde açık kontaklı iki yedekli güvenlik yolu (röle kontakları) sayesinde aşağıdakiler için uygundur:
EN ISO 13849-1'e göre Kategori 4 / PL e
Her güvenlik yolu bağımsız olarak güvenlidir.
LED göstergesi
DURUM Durum LED'i
DIA Teşhis LED'i
OUT Emniyet çıkışı durumu
Ek bağlantılar
Kendi kendine test için TST Girişi
O1 ... O4 İzleme çıkışları (yarı iletken)
DIA Teşhis çıkışı
Y1, Y2 Geri bildirim döngüsü
S Başlat düğmesi bağlantısı (düşen kenarın izlenmesi)
Önemli: Geçmeli bağlantı terminalleri dahil değildir ve ayrıca sipariş edilmelidir.
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Plastic PA6.6 |
| Weight | |
| Net | 0,25 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 ... 55 °C |
| Atmospheric humidity | |
| Not condensing | max.80 % rH |
| Degree of protection | IP20 |
| Mounting method | Mounting rail 35mm according to DIN EN 60715 TH35 |
| Mounting distance | |
| Sideways toward the neighboring device | min.10 mm |
| Number of read heads | Max. 4 read heads can be connected |
| Ready delay | 10 ... 12 s |
| Reaction time | |
| After change in the actuation status, 1 active actuator | max.210 ms |
| After change in the actuation status, 2 active actuators | max.290 ms |
| After change in the actuation status, 3 active actuators | max.370 ms |
| After change in the actuation status, 4 active actuators | max.450 ms |
| Duration of operation start button (for Manual start operating mode) | min.250 ms |
| Response delay start button (for Manual start operating mode) | 200 ... 300 ms |
| Switching frequency | max.0,25 Hz |
| Dwell time | min.3 s |
| Connection | Plug-in connection terminals, coded |
| Safety contacts 13/14, 23/24 | |
| Number of safety contacts | 2 Relays with internally monitored contacts |
| Mechanical life | |
| Operating cycles (relay) | 10 x 106 |
Electrical connection ratings
| Operating voltage DC | |
| UB | 21 ... 24 ... 27 V DC Regulated, residual ripple < 5 % |
| Current consumption | |
| (with relay energized) | 150 mA |
| Fusing | |
| External (operating voltage UB) | 0,25 ... 8 A |
| EMC protection requirements | In acc. with EN 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| Connection cross-section | |
| (plug-in screw- / springterminals) | 0,25 ... 2,5 mm² |
| Current via feedback loop | 5 ... 8 ... 10 mA |
| permissible resistance in feedback loop | max.600 Ω |
| Safety contacts 13/14, 23/24 | |
| Type of output | Relay contacts, floating |
| Switching current | |
| At switching voltage AC/DC 21 ... 60 V | 1 ... 300 mA |
| At switching voltage AC/DC 5 ... 30 V | 10 ... 6000 mA |
| At switching voltage AC 5 ... 230 V | 10 ... 2000 mA |
| Fusing | |
| External (safety circuit) according to EN 60269-1 | 6 AgG or 6 A circuit breaker (characteristic B or C) |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 230 V 2 A |
| DC-13 | 24 V 3 A |
| AC-12 | 60 V 0.3 A |
| 30 V 6 A | |
| DC-12 | 60 V 0.3 A |
| 30 V 6 A | |
| Switching load | |
| According to c UL us | Class 2 max. 30 V AC / Class 2 max. 60 V DC; 120 V AC 3 A / 240 V AC 1.5 A |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated conditional short-circuit current | 100 A |
| Discrepancy time | |
| (Between the operating points of both relays) | max.25 ms |
| Monitoring outputs: Diagnostic DIA, door monitoring outputs O1...O4 | |
| Type of output | Semiconductor output, p-switching, short circuit-proof |
| Output voltage | 0,8 x UB ... UB V DC |
| Output current | max.20 mA |
| Inputs: Start button S, test input TST | |
| Input current | |
| HIGH | 5 ... 8 ... 10 mA |
| Input voltage | |
| HIGH | 15 ... UB V DC |
| LOW | 0 ... 2 V DC |
| STATE LED | |
| LED indicator | Status LED |
| LED OUT | |
| LED indicator | Safety outputs status |
| DIA LED | |
| LED indicator | Diagnostics LED |
Work area
| Repeat accuracy R | |
| According to EN 60947-5-2 | max.10 % |
Other
| For the approval acc. to UL the following applies |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 1.9 x 10-8 |
| Diagnostic Coverage (DC) | 99 % |
| Number of switching cycles | |
| ≤ 0.1 A at 24 V DC | max.760000 1/Jahr |
| ≤ 1 A at 24 V DC | max.153000 1/Jahr |
| ≤ 3 A at 24 V DC | max.34600 1/Jahr |
| Mission time | 20 y |
In combination with Read head CES-A-LNA-05V, CES-A-LNA-10V, CES-A-LNA-15V, CES-A-LNA-25V, CES-A-LNA-SC, CES-A-LNA-05P, CES-A-LNA-10P, CES-A-LNA-15P, CES-A-LCA-10V and Actuator CES-A-BDA-18-156935
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.50 mm |
Actuating range
| Distance s, actuator | |
| Minimum distance for side approach direction | min.5 mm |
| Operating distance | |
| With center offset m=0 | 16 mm |
| Assured release distance Sar | max.32 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.10 mm |
| Switching hysteresis | |
| With center offset m=0 | min.0,5 mm |
In combination with Read head CES-A-LMN-SC and Actuator CES-A-BMB
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.20 mm |
Actuating range
| Distance s, actuator | |
| Minimum distance | min.1,2 mm |
| Operating distance | |
| With center offset m=0 | 5 mm |
| Assured release distance Sar | max.10 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.3,5 mm |
| Switching hysteresis | min.0,1 mm |
In combination with Read head CES-A-LNA-05V, CES-A-LNA-10V, CES-A-LNA-15V, CES-A-LNA-25V, CES-A-LNA-SC, CES-A-LNA-05P, CES-A-LNA-10P, CES-A-LNA-15P, CES-A-LCA-10V and Actuator CES-A-BBA, CES-A-BCA
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.50 mm |
Actuating range
| Distance s, actuator | |
| Minimum distance for side approach direction | min.3 mm |
| Operating distance | |
| With center offset m=0 | 15 mm |
| Assured release distance Sar | max.26 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.10 mm |
| Switching hysteresis | min.0,5 mm |
In combination with Read head CES-A-LNA-05V, CES-A-LNA-10V, CES-A-LNA-15V, CES-A-LNA-25V, CES-A-LNA-SC, CES-A-LNA-05P, CES-A-LNA-10P, CES-A-LNA-15P, CES-A-LCA-10V and Actuator CES-A-BDA-20
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.50 mm |
Actuating range
| Distance s, actuator | |
| Minimum distance for side approach direction | min.4 mm |
| Operating distance | |
| With center offset m=0 | 16 mm |
| Assured release distance Sar | max.33 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.11 mm |
| Switching hysteresis | min.0,5 mm |
In combination with Read head CES-A-LMN-SC and Actuator CES-A-BDA-18-156935
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.20 mm |
Actuating range
| Distance s, actuator | |
| Minimum distance for side approach direction | min.3 mm |
| Operating distance | |
| With center offset m=0 | 9 mm |
| Assured release distance Sar | max.21 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.6 mm |
| Switching hysteresis | |
| With center offset m=0 | min.0,5 mm |
In combination with Read head CES-A-LNN-SC-106601, CES-A-LNN-05V-106602, CES-A-LNN-10V-113294, CES-A-LNN-25V-115107 and Actuator CES-A-BBN-106600
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.160 mm |
Actuating range
| Operating distance | |
| In z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | 15 mm |
| Assured release distance Sar | |
| In y direction | max.100 mm |
| in x or z direction | max.50 mm |
| Assured operating distance Sao | |
| In z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | min.10 mm |
| Switching hysteresis | min.1 mm |
In combination with Read head CES-A-LNN-SC-106601, CES-A-LNN-05V-106602, CES-A-LNN-10V-113294, CES-A-LNN-25V-115107 and Actuator CES-A-BDN-06-104730
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.160 mm |
Actuating range
| Operating distance | |
| In z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | 19 mm |
| Assured release distance Sar | |
| In y direction | max.100 mm |
| in x or z direction | max.50 mm |
| Assured operating distance Sao | |
| In z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | min.14 mm |
| Switching hysteresis | 4 mm |
In combination with Read head CES-A-LMN-SC and Actuator CES-A-BDA-20
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.20 mm |
Actuating range
| Operating distance | |
| With center offset m=0 | 9 mm A distance of s = 4 mm must be maintained for a side approach direction. |
| Assured release distance Sar | |
| With center offset m=0 | max.26 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.6 mm |
| Switching hysteresis | |
| With center offset m=0 | min.1 mm |
In combination with Read head CES-A-LMN-SC and Actuator CES-A-BBA
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.20 mm |
Actuating range
| Operating distance | |
| With center offset m=0 | 8 mm A distance of s = 3 mm must be maintained for a side approach direction. |
| Assured release distance Sar | |
| With center offset m=0 | max.25 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.5 mm |
| Switching hysteresis | |
| With center offset m=0 | min.1 mm |
In combination with Read head CES-A-LSP-05V-104966, CES-A-LSP-10V-104967, CES-A-LSP-SB-104969, CES-A-LSP-15V-106271 and Actuator CES-A-BSP-104970
Actuating range
| Operating distance | |
| With center offset m=0 | 20 mm |
| Assured release distance Sar | max.45 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.10 mm |
| Switching hysteresis | min.1 mm |
In combination with Read head CES-A-LQA-SC and Actuator CES-A-BQA
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.80 mm |
Actuating range
| Operating distance | |
| For vertical approach direction (center offset m=0) | 23 mm |
| For side approach direction (distance in x direction 10 mm) | ± 28 mm |
| Assured release distance Sar | max.60 mm |
| Assured operating distance Sao | |
| For vertical approach direction (center offset m=0) | min.16 mm |
| For side approach direction (distance in x direction 10 mm) | min.± 24 mm |
| Switching hysteresis | |
| For vertical approach direction (center offset m=0) | min.2 mm |
| For side approach direction (distance in x direction 10 mm) | min.1 mm |
In combination with Read head CES-A-LQA-SC and Actuator CES-A-BBA, CES-A-BCA
Mechanical values and environment
| Mounting distance | |
| Neighboring read heads | min.80 mm |
Actuating range
| Operating distance | |
| For vertical approach direction (center offset m=0) | 15 mm |
| For side approach direction (distance in x direction 8 mm) | ± 22 mm |
| Assured release distance Sar | max.47 mm |
| Assured operating distance Sao | |
| For side approach direction (distance in x direction 8 mm) | min.± 18 mm |
| For vertical approach direction (center offset m=0) | min.10 mm |
| Switching hysteresis | |
| For vertical approach direction (center offset m=0) | 2 ... 3 mm |
| For side approach direction (distance in x direction 8 mm) | min.1 mm |
Bu ürüne ilk yorumu siz yapın!
