Euchner CES-I-AP-M-C04-USI-117323 Temassız Emniyet Anahtarı

0 - Yorum
Kategori
Marka
Stok Kodu
273039
Garanti Süresi
24 Ay
Fiyat
318,87 EUR + KDV
* 4.068,51 TL den başlayan taksitlerle!
14.923,28 TL

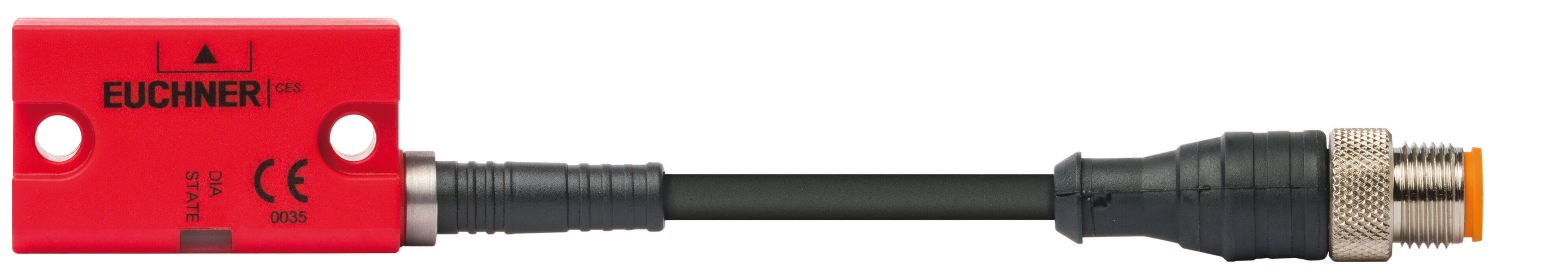

Euchner CES-I-AP-M-C04-USI-117323
Temassız Emniyet Anahtarı CES-I-AP -.- C04-, M12, pin 5 kullanılmıyor

  • Entegre değerlendirme elektronikli güvenlik anahtarı
  • Seri bağlantı yok
  • Kısa devre izleme
  • 2 güvenlik çıkışı (yarı iletken çıkışlar)
  • EN ISO 13849-1'e göre Kategori 4 / PL e
  • Üç aktif yüz
  • Bağlantı kablosu PUR, 0,1 m, fiş konnektörü M12, 5 damarlı, pim 5 kullanılmıyor
  • Çoklu kod


Kurulum konumu

Figure

Figür
İzin verilen montaj konumu

Çoklu kod değerlendirmesi
Her uygun aktüatör anahtar tarafından algılanır.

EN 13849-1'e göre kategori
Aşağıdakiler için uygun dahili izleme ile yedekli olarak tasarlanmış iki yarı iletken çıkışı (güvenlik çıkışları) sayesinde:

EN 13849-1'e göre Kategori 4 / PL e
Önemli: EN ISO 13849-1'e göre belirtilen kategoriye ulaşmak için, her iki güvenlik çıkışının (FO1A ve FO1B) değerlendirilmesi gerekir.

LED göstergesi
DURUM Durum LED'i
DIA Teşhis LED'i



Connector assignment

Plug connector (view of connection side)

Pin

Designation

Function

Conductor coloring of connecting cable

1

UB

Power supply, DC 24 V

BN

2

FO1A

Safety output, channel 1

WH

3

0V

Ground, DC 0 V

BU

4

FO1B

Safety output, channel 2

BK

5

-

n.c.

GY


Approvals

Zulassung EACRichtlinie CEZulassung c_UL_us LISTED Class 2

Mechanical values and environment

Cable ambient temperature (dynamic) -25 ... 65 °C
Cable ambient temperature (static) -25 ... 65 °C
Shock and vibration resistance In acc. with EN 60947-5-3
Dynamic bending radius 10 x cable diameter
Static bending radius 5 x cable diameter
Material
Rubber support NBR 80 ±5 Shore
Housing material
Housing Plastic, PBT
Weight
Net 0,05 kg
Degree of protection IP67
Mounting method Surface mounting on metal
Mounting distance
Between 2 switches or 2 actuators min.80 mm
Installation orientation Any
Tightening torque
Fixing screws max.0,8 Nm
Ready delay 0,5 s
Switching frequency max.1 Hz
Connection PUR cable 100mm with plug connector M12x1, 5-pin, pin 5 not used

Electrical connection ratings

Operating voltage DC
UB 24 V DC 15% ... 15% Regulated, residual ripple < 5%, PELV
Current consumption
No load on outputs max.35 mA
Fusing
External (operating voltage) 0,25 ... 8 A
Rated insulation voltage Ui 300 V
Rated impulse withstand voltage Uimp 1,5 kV
EMC protection requirements In acc. with EN IEC 60947-5-3
Degree of contamination (external, according to EN 60947-1) 3
Turn-on time
Safety outputs max.300 ms
Safety class III
Risk time according to EN 60947-5-3 max.260 ms
Safety outputs FO1A / FO1B
Test pulses max.0,3 ms
Test-pulse interval min.100 ms
Type of output Semiconductor outputs, p-switching, short circuit-proof
Switching current
per safety output 1 ... 150 mA
Output voltage
HIGH U(FO1A) / U(FO1B) UB-1,5V ... UB V DC
LOW U(FO1A) / U(FO1B) 0 ... 1 V DC
Utilization category acc. to EN 60947-5-2
DC-13 24V 150mA
Rated conditional short-circuit current 100 A
Off-state current Ir max.0,25 mA
Discrepancy time max.10 ms

Work area

Repeat accuracy R
According to EN 60947-5-2 ≤ 10

Other

Additional feature Rubber support included
For the approval acc. to UL the following applies Operation only with UL class 2 power supply, or equivalent measures

Reliability values according to EN ISO 13849-1

Monitoring of the safety guard position
Category 4
Performance Level PL e
PFHD 4.1 x 10-9
Mission time 20

In combination with Actuator CES-A-BBN-C04-115271, CES-A-BBN-C04-EX-137527

Actuating range

Operating distance
Installation position C or D (broad side) 11 mm
Installation position A or B (front side) 15 mm
Assured release distance Sar
In y direction max.60 mm
In x/z direction max.40 mm
Assured operating distance Sao
Installation position C or D (broad side) min.6 mm
Installation position A or B (front side) min.10 mm
Switching hysteresis min.1 mm

In combination with Actuator CES-A-BDN-06-104730

Actuating range

Operating distance
Installation position A or B (front side) 19 mm
Installation position C or D (broad side) 15 mm
Assured release distance Sar
In y direction max.60 mm
In x/z direction max.40 mm
Assured operating distance Sao
Installation position A or B (front side) min.14 mm
Installation position C or D (broad side) min.10 mm
Switching hysteresis min.1 mm

In combination with Actuator CES-A-BDN-06-161742

Actuating range

Operating distance
Installation position A 26 mm
Installation position C 23 mm
Assured release distance Sar
Installation position A max.77 mm
Installation position C max.72 mm
Assured operating distance Sao
Installation position C min.10 mm
Installation position A min.16 mm
Switching hysteresis min.1 mm

In combination with Actuator CES-A-BBN-161502

Actuating range

Operating distance
Installation position C + D 25 mm
Installation position A + B 30 mm
Assured release distance Sar
in x/z direction / installation position A + B max.69 mm
in x/z direction / installation position C + D max.63 mm
in y direction / installation position A + B max.77 mm
in y direction / installation position C + D max.72 mm
Assured operating distance Sao
in z direction / installation position A + B min.15 mm
in x direction/installation position C + D min.10 mm
Switching hysteresis
in z direction / installation position A + B min.1 mm
in x direction/installation position C + D min.1 mm
Euchner CES-I-AP-M-C04-USI-117323
