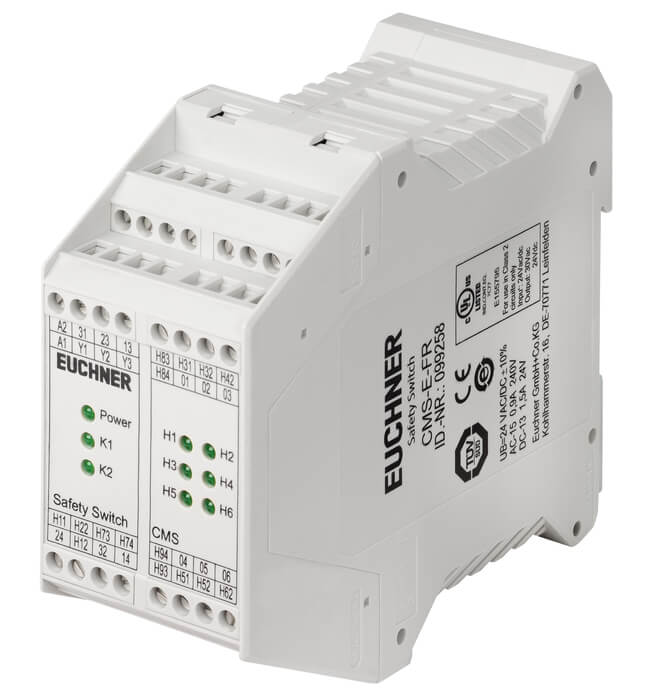

Euchner CMS-E-F 099258 Değerlendirme Ünitesi
2 güvenlik kontağı, 1 yardımcı kontak, 6 izleme çıkışı, 1 geri besleme döngüsü bağlanabilir
6 adede kadar okuma kafası bağlanabilir
2 güvenlik kontağı
1 yardımcı kontak
6 izleme çıkışı
1 geri besleme döngüsü bağlanabilir
Otomatik başlat / izleniyor / izlenmiyor
Fonksiyonel Açıklama
Değerlendirme birimi CMS-E-FR, 30'a kadar okuma kafasının doğrudan bağlantısı için uygundur.
EN ISO 13849-1'e göre Kategori / PL
Birden fazla okuma kafasının bağlı olduğu Kategori 3 / PL d
Yalnızca bir okuma kafası bağlıyken Kategori 4 / PL e
Not:
Z yönündeki düşük yaklaşma hızlarında, kamış kontaklarının anahtarlanması arasındaki süre 0.6 ms'den fazla olmamalıdır.
Approvals
Mechanical values and environment
Housing material
Housing
Polyamide PA6.6
Weight
Net
0,3 kg
Ambient temperature
0 ... 55 °C
Degree of protection
Terminals IP20 / housing IP40
Mechanical life
10 x 106
Mounting method
Mounting rail 35mm according to DIN EN 60715 TH35
Connection
Connection terminals
Safety contacts 13/14, 23/24
Number of safety contacts
2
Auxiliary contacts 31/32
Number of auxiliary contacts
1
Semiconductor outputs 01 to 06
Number of monitoring outputs
6
Electrical connection ratings
Operating voltage
AC/DC
24 V -10% ... +10%
Current consumption
at DC 24 V
10 ... 120 mA
Fusing
Protection internal (operating voltage UB)
0,75 A Automatically resetting fuse PTC
Rated insulation voltage Ui
AC
250 V
Degree of contamination (external, according to EN 60947-1)
2
Connection cross-section
0,14 ... 2,5 mm²
LED indicator
1 indicator LED Power, 2 output LEDs and 6 status indicators for the read heads
Safety contacts 13/14, 23/24
Type of output
Relay contacts, floating
Switching voltage
AC
max.240 V
Switching current
at DC 24V
10 ... 3000 mA
Fusing
External contact fuse (safety circuit) acc. to EN IEC 60269-1
4A gG
Utilization category acc. to EN 60947-4-1
Utilization category acc. to EN 60947-5-1
AC-15
0.9A , 240V and 0.9A , 24V
DC-13
1.5A , 24V
Switching load
According to UL class 2
Input: 24V AC/DC ; output: 30V AC, 24V DC
Breaking capacity (VA)
max.720 VA
Risk time according to EN 60947-5-3
max.20 ms
Auxiliary contacts 31/32
Type of output
Relay contacts, floating
Switching current
at DC 24V
max.1500 mA
Semiconductor outputs 01 to 06
Type of output
Semiconductor outputs, p-switching
Switching current
at DC 24V
50 mA Per monitoring output 01 to 06
Other
In compliance with
EN ISO 13849-1: 2015; EN ISO 13849-2:2012; EN 50178: 1997; EN 60204-1: 2006/A1: 2009; EN ISO 13850: 2015; EN 14119: 2013; EN 6100-2-6: 2005; EN 6100-6-3: 2007/A1: 2011; EN 60947-5-3: 2013
Reliability values according to EN ISO 13849-1
Monitoring of the guard position with 1 read head
Category
4
Performance Level
PL e
PFHD
2.5 x 10-8
Monitoring of the guard position with > 1 read head
Category
3
Performance Level
PL d
PFHD
1.0 x 10-7
Number of switching cycles
≤ 1A at 24V DC
max.70000 1/Jahr
≤ 0.1A at 24V DC
max.166000 1/Jahr
Mission time
20 y
In combination with Read head CMS-R-CXC-03V, CMS-R-CXC-05V, CMS-R-CXC-05P, CMS-R-CXC-SC and Actuator CMS-M-CA
Actuating range
Center offset
At s =3 mm read distance
2,5 mm
Assured release distance Sar
max.14 mm
Assured operating distance Sao
With center offset m=0
min.6 mm
In combination with Read head CMS-R-AXH-03V, CMS-R-AXH-05V, CMS-R-AXH-SC and Actuator CMS-M-AC
Actuating range
Center offset
At s =3 mm read distance
2,5 mm
Assured release distance Sar
max.31 mm
Assured operating distance Sao
With center offset m=0
min.6 mm
In combination with Read head CMS-RH-BYB-03VL, CMS-RH-BYB-05VL and Actuator CMS-MH-BB
Actuating range
Center offset
At s =3 mm read distance
2,5 mm
Assured release distance Sar
max.13 mm
Assured operating distance Sao
With center offset m=0
min.6 mm
In combination with Read head CMS-R-EXM-03V, CMS-R-EXM-05V, CMS-R-EXM-SC and Actuator CMS-M-EF
Actuating range
Center offset
At s =3 mm read distance
2,5 mm
Assured release distance Sar
max.17 mm
Assured operating distance Sao
With center offset m=0
min.6 mm
In combination with Read head CMS-R-BXI-03V, CMS-R-BXI-05V, CMS-R-BXI-07P, CMS-R-BXI-SC and Actuator CMS-M-BD
Actuating range
Center offset
At s =3 mm read distance
2,5 mm
Assured release distance Sar
max.12 mm
Assured operating distance Sao
With center offset m=0
min.3 mm
In combination with Read head CMS-RH-AYA-03VL, CMS-RH-AYA-05VL and Actuator CMS-MH-AA
Actuating range
Center offset
At s =3 mm read distance
2,5 mm
Assured release distance Sar
max.20 mm
Assured operating distance Sao
With center offset m=0
min.10 mm
| Housing material | |
| Housing | Polyamide PA6.6 |
| Weight | |
| Net | 0,3 kg |
| Ambient temperature | 0 ... 55 °C |
| Degree of protection | Terminals IP20 / housing IP40 |
| Mechanical life | 10 x 106 |
| Mounting method | Mounting rail 35mm according to DIN EN 60715 TH35 |
| Connection | Connection terminals |
| Safety contacts 13/14, 23/24 | |
| Number of safety contacts | 2 |
| Auxiliary contacts 31/32 | |
| Number of auxiliary contacts | 1 |
| Semiconductor outputs 01 to 06 | |
| Number of monitoring outputs | 6 |
| Operating voltage | |
| AC/DC | 24 V -10% ... +10% |
| Current consumption | |
| at DC 24 V | 10 ... 120 mA |
| Fusing | |
| Protection internal (operating voltage UB) | 0,75 A Automatically resetting fuse PTC |
| Rated insulation voltage Ui | |
| AC | 250 V |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| Connection cross-section | 0,14 ... 2,5 mm² |
| LED indicator | 1 indicator LED Power, 2 output LEDs and 6 status indicators for the read heads |
| Safety contacts 13/14, 23/24 | |
| Type of output | Relay contacts, floating |
| Switching voltage | |
| AC | max.240 V |
| Switching current | |
| at DC 24V | 10 ... 3000 mA |
| Fusing | |
| External contact fuse (safety circuit) acc. to EN IEC 60269-1 | 4A gG |
| Utilization category acc. to EN 60947-4-1 | |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 0.9A , 240V and 0.9A , 24V |
| DC-13 | 1.5A , 24V |
| Switching load | |
| According to UL class 2 | Input: 24V AC/DC ; output: 30V AC, 24V DC |
| Breaking capacity (VA) | max.720 VA |
| Risk time according to EN 60947-5-3 | max.20 ms |
| Auxiliary contacts 31/32 | |
| Type of output | Relay contacts, floating |
| Switching current | |
| at DC 24V | max.1500 mA |
| Semiconductor outputs 01 to 06 | |
| Type of output | Semiconductor outputs, p-switching |
| Switching current | |
| at DC 24V | 50 mA Per monitoring output 01 to 06 |
| In compliance with | EN ISO 13849-1: 2015; EN ISO 13849-2:2012; EN 50178: 1997; EN 60204-1: 2006/A1: 2009; EN ISO 13850: 2015; EN 14119: 2013; EN 6100-2-6: 2005; EN 6100-6-3: 2007/A1: 2011; EN 60947-5-3: 2013 |
| Monitoring of the guard position with 1 read head | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 2.5 x 10-8 |
| Monitoring of the guard position with > 1 read head | |
| Category | 3 |
| Performance Level | PL d |
| PFHD | 1.0 x 10-7 |
| Number of switching cycles | |
| ≤ 1A at 24V DC | max.70000 1/Jahr |
| ≤ 0.1A at 24V DC | max.166000 1/Jahr |
| Mission time | 20 y |
| Center offset | |
| At s =3 mm read distance | 2,5 mm |
| Assured release distance Sar | max.14 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.6 mm |
| Center offset | |
| At s =3 mm read distance | 2,5 mm |
| Assured release distance Sar | max.31 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.6 mm |
| Center offset | |
| At s =3 mm read distance | 2,5 mm |
| Assured release distance Sar | max.13 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.6 mm |
| Center offset | |
| At s =3 mm read distance | 2,5 mm |
| Assured release distance Sar | max.17 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.6 mm |
| Center offset | |
| At s =3 mm read distance | 2,5 mm |
| Assured release distance Sar | max.12 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.3 mm |
| Center offset | |
| At s =3 mm read distance | 2,5 mm |
| Assured release distance Sar | max.20 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.10 mm |
