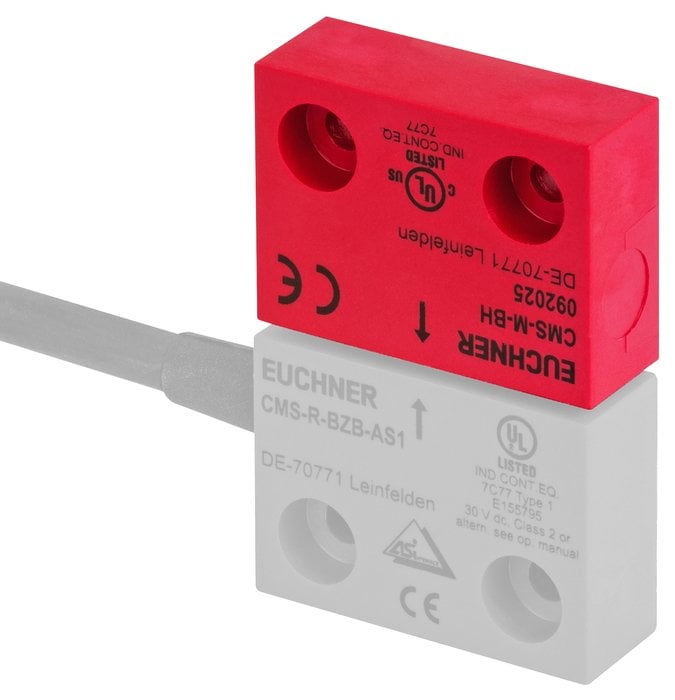

Euchner CMS-M-BH 092025 Aküatör CMS Design B
Küp şeklindeki versiyon 36 x 26 mm
Approvals
Mechanical values and environment
Design | B |
Housing material | |
Housing | PPS |
Weight | |
Net | 0,016 kg |
Ambient temperature | -20 ... 80 °C |
Degree of protection | IP67 |
Installation orientation | Any, pay attention to marking |
Tightening torque | 0,4 ... 0,5 Nm |
Method of operation | Magnetic |
Other
In compliance with | EN ISO 13849-1:2015; EN 50178:1997; EN 60204-1:2006/A1:2009; EN ISO 14119:2013; EN 61000-6-2:2005; EN 61000-6-3:2007/A1:2011; EN 60947-5-3:2013 |
