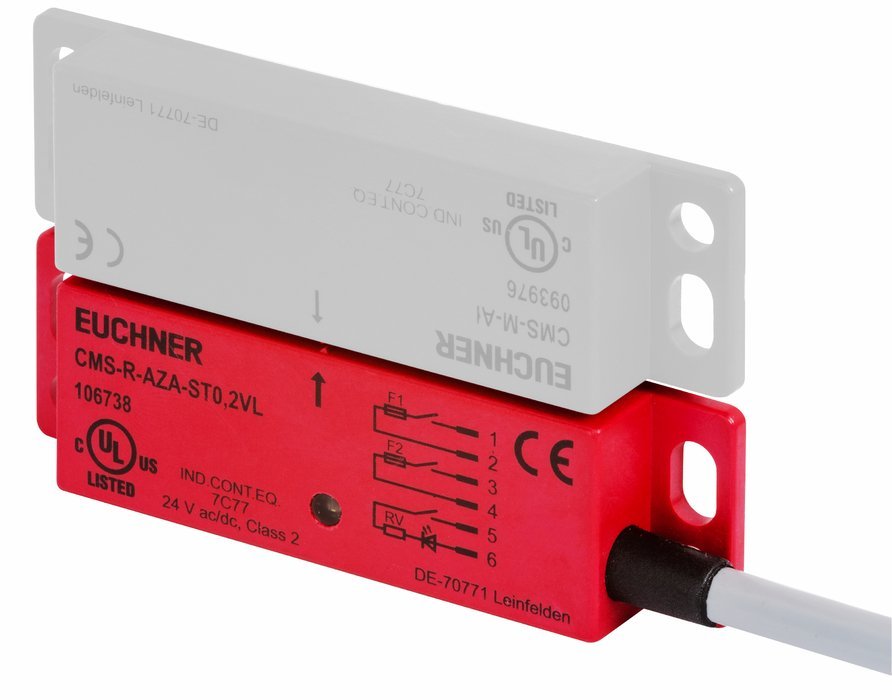

CMS-R-AZA-05VL (ORDER NO. 094702) Read heads design A for ESM, PVC
- Değerlendirme birimleriyle birlikte
- Küp şeklindeki versiyon 88 x 25 mm
- Bağlantı kablosu
- 1 LED
- Kablo tipi: PVC
Alignment of read head and actuator
Figure
Operating diagram, design A
CMS-R-AZA
-
Tip. çalışma mesafesi
Tip. serbest bırakma mesafesi
Approvals
Mechanical values and environment
Design
A
Material
Cable material
PVC
Housing material
Housing
Fiber glass reinforced PPS
Weight
Net
0,26 kg
Ambient temperature
-20 ... 60 °C
Degree of protection
IP67
Mechanical life
100 x 106
Installation orientation
Any, pay attention to marking
Tightening torque
0,4 ... 0,5 Nm
Number of NO contacts
2 NO contacts with fuse, 100 mA each and 1 NO contact with LED
Connection
Hard-wired encapsulated cable with cable end sleeves 0.34mm2
Cable length
5 m
Number of LED displays
1 LED contact status indication
Method of operation
Magnetic, reed contact
Electrical connection ratings
Rated conditional short-circuit current
100 A
Fusing
Power supply / safety contacts, external contact protection
Fuse 10 A gG
Switching voltage
24 ... 35 V
Contact status indication
24 ... 35 V
Switching current
max.100 mA
Contact status indication
max.20 mA
Switching characteristics
Parallel
Switching voltage according to UL
According to UL Class 2
max.24 V AC/DC
Series resistor
LED contact status indication
1,5 kΩ
Switching frequency, electrical
At I_min = 10 mA
max.5 Hz
At nominal current 8 A
0,1 Hz
Switching delay from state change
26 ms
Other
In compliance with
EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN ISO 14119: 2013; IEC 60947-5-3: 2013
Reliability values according to EN ISO 13849-1
Monitoring of the safety guard position
B10D
20 x 106
In combination with Evaluation unit ESM-BA201, ESM-BA301, ESM-BA302, ESM-BA303, ESM-BA201P, ESM-BA301P and Actuator CMS-M-AI
Actuating range
Center offset
At s=3 mm read distance
2,5 mm
Assured release distance Sar
max.20 mm
Contact status indication / LED
max.15 mm
Assured operating distance Sao
With center offset m=0
min.9 mm
Contact status indication / LED; with center offset m=0
min.7 mm
Alignment of read head and actuator
Figure
Operating diagram, design A
CMS-R-AZA
-
Tip. çalışma mesafesiTip. serbest bırakma mesafesi
Approvals
Mechanical values and environment
Design | A |
Material | |
Cable material | PVC |
Housing material | |
Housing | Fiber glass reinforced PPS |
Weight | |
Net | 0,26 kg |
Ambient temperature | -20 ... 60 °C |
Degree of protection | IP67 |
Mechanical life | 100 x 106 |
Installation orientation | Any, pay attention to marking |
Tightening torque | 0,4 ... 0,5 Nm |
Number of NO contacts | 2 NO contacts with fuse, 100 mA each and 1 NO contact with LED |
Connection | Hard-wired encapsulated cable with cable end sleeves 0.34mm2 |
Cable length | 5 m |
Number of LED displays | 1 LED contact status indication |
Method of operation | Magnetic, reed contact |
Electrical connection ratings
Rated conditional short-circuit current | 100 A |
Fusing | |
Power supply / safety contacts, external contact protection | Fuse 10 A gG |
Switching voltage | 24 ... 35 V |
Contact status indication | 24 ... 35 V |
Switching current | max.100 mA |
Contact status indication | max.20 mA |
Switching characteristics | Parallel |
Switching voltage according to UL | |
According to UL Class 2 | max.24 V AC/DC |
Series resistor | |
LED contact status indication | 1,5 kΩ |
Switching frequency, electrical | |
At I_min = 10 mA | max.5 Hz |
At nominal current 8 A | 0,1 Hz |
Switching delay from state change | 26 ms |
Other
In compliance with | EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN ISO 14119: 2013; IEC 60947-5-3: 2013 |
Reliability values according to EN ISO 13849-1
Monitoring of the safety guard position | |
B10D | 20 x 106 |
In combination with Evaluation unit ESM-BA201, ESM-BA301, ESM-BA302, ESM-BA303, ESM-BA201P, ESM-BA301P and Actuator CMS-M-AI
Actuating range
Center offset | |
At s=3 mm read distance | 2,5 mm |
Assured release distance Sar | max.20 mm |
Contact status indication / LED | max.15 mm |
Assured operating distance Sao | |
With center offset m=0 | min.9 mm |
Contact status indication / LED; with center offset m=0 | min.7 mm |
