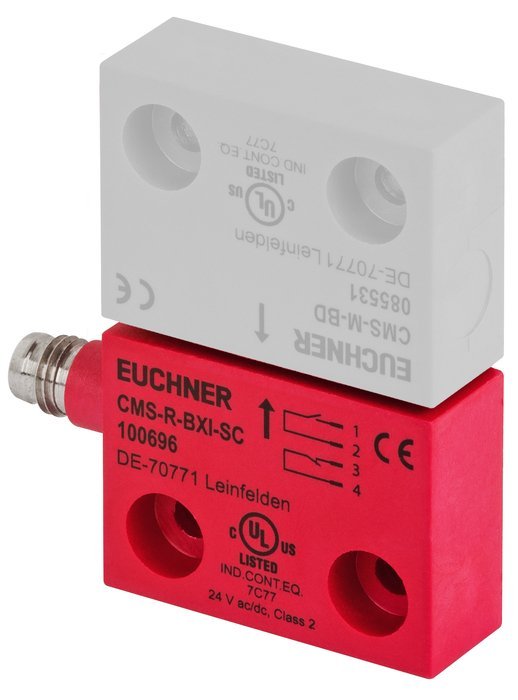

Euchner CMS-R-BXI-SC 100696 Read Head
0 - Yorum
Kategori
Marka
Stok Kodu
273226
Garanti Süresi
24 Ay
Fiyat
109,12 EUR + KDV
* 1.392,24 TL den başlayan taksitlerle!
5.106,72 TL
Euchner CMS-R-BXI-SC 100696
Okuma kafaları CMS tasarım B - NC / NO kontaklı, M8
CMS-E-BR / CMS-E-ER / CMS-E-FR değerlendirme birimleriyle birlikte
Küp şeklindeki versiyon 36 x 26 mm
Konektör M8
Okuma kafası ve aktüatörün hizalanması
Figure
Çalışma diyagramları, tasarım B
CMS-R-BXI
Tip. çalışma mesafesi
Tip. serbest bırakma mesafesi
Approvals
Mechanical values and environment
Shock and vibration resistance
In acc. with EN 60947-5-3
Design
B
Housing material
Housing
Fiber glass reinforced PPS
Weight
Net
0,02 kg
Ambient temperature
-20 ... 60 °C
Degree of protection
IP67
Mechanical life
100 x 106
Installation orientation
Any, pay attention to marking
Tightening torque
0,4 ... 0,5 Nm
Number of NC contacts
1 NC contact
Number of NO contacts
1 NO contact
Connection
4-pin M8 plug connector
Method of operation
Magnetic, reed contact
Electrical connection ratings
Rated insulation voltage Ui
26,4 V
Rated impulse withstand voltage Uimp
1,5 kV
Switching voltage
24 V
Switching current
8 ... 500 mA
Switching characteristics
NO + NC
Switching voltage according to UL
According to UL Class 2
max.24 V AC/DC
Work area
Repeat accuracy R
max.10 %
Assured release distance Sar
max.12 mm
Assured operating distance Sao
With center offset m=0
min.3 mm
Other
In compliance with
EN ISO 13849-1:2015; EN 50178:1997; EN 60204-1:2006/A1:2009; EN ISO 14119:2013; EN 61000-6-2:2005; EN 61000-6-3:2007/A1:2011; EN 60947-5-3:2013
Tip. çalışma mesafesi
Tip. serbest bırakma mesafesi
Approvals
Mechanical values and environment
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Design | B |
| Housing material | |
| Housing | Fiber glass reinforced PPS |
| Weight | |
| Net | 0,02 kg |
| Ambient temperature | -20 ... 60 °C |
| Degree of protection | IP67 |
| Mechanical life | 100 x 106 |
| Installation orientation | Any, pay attention to marking |
| Tightening torque | 0,4 ... 0,5 Nm |
| Number of NC contacts | 1 NC contact |
| Number of NO contacts | 1 NO contact |
| Connection | 4-pin M8 plug connector |
| Method of operation | Magnetic, reed contact |
Electrical connection ratings
| Rated insulation voltage Ui | 26,4 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching voltage | 24 V |
| Switching current | 8 ... 500 mA |
| Switching characteristics | NO + NC |
| Switching voltage according to UL | |
| According to UL Class 2 | max.24 V AC/DC |
Work area
| Repeat accuracy R | max.10 % |
| Assured release distance Sar | max.12 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.3 mm |
Other
| In compliance with | EN ISO 13849-1:2015; EN 50178:1997; EN 60204-1:2006/A1:2009; EN ISO 14119:2013; EN 61000-6-2:2005; EN 61000-6-3:2007/A1:2011; EN 60947-5-3:2013 |
