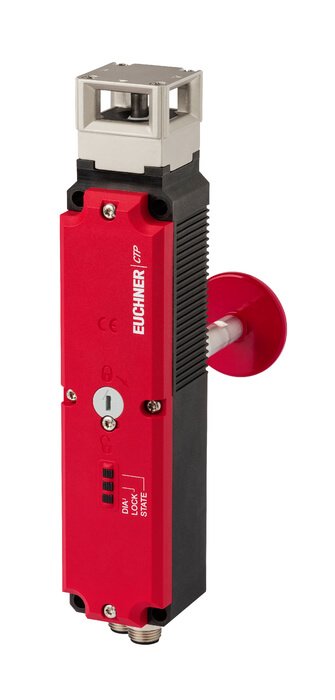

Euchner CTP-L1-AR-U-HA-AE-SAB-122813
Transponder kodlu emniyet anahtarı CTP-AR, 2 x M12, kaçış serbest bırakmalı
- Kapalı tutma ve entegre değerlendirme elektronikli güvenlik anahtarı
- Seri olarak 20'ye kadar anahtar
- Kısa devre izleme
- 2 güvenlik çıkışı (yarı iletken çıkışlar)
- EN ISO 13849-1'e göre kategori 4 / PL e'ye kadar
- 2 fiş konnektörlü M12
- Unicode
- Kapı izleme çıkışı
- Kaçış serbest bırakılmasıyla
- Yaklaşma yönleri A, B ve C (teslimat durumu)
Yaklaşım Yönü
Figür
Yatay
90 ° 'lik adımlarla ayarlanabilir
Unicode değerlendirmesi
Her aktüatör yüksek oranda kodlanmıştır (unicode). Anahtar, yalnızca öğretilmiş aktüatörleri algılar. Ek aktüatörler öğretilebilir. Yalnızca son öğretilen aktüatör algılanır.
Koruma kilitleme tipi
CTP ‑ L1 Uygulanan yay kuvveti ile çalıştırılan ve güç açık bırakılan kapalı devre akımı (kapalı devre akımı prensibi)
Kaçış bırakma
Bu, tehlike bölgesinden koruyucu kilidin alet kullanmadan manuel olarak serbest bırakılması için kullanılır.
Connector assignment
Approvals
Mechanical values and environment
Shock and vibration resistance
In acc. with EN 60947-5-3
Housing material
Switch head cover
Die-cast zinc
Safety switch housing
Fiber glass reinforced thermoplastic
Weight
Net
0,42 kg
Ambient temperature
At UB = 24V DC
-20 ... +55 °C
Degree of protection
IP67/IP69/IP69K
Mechanical life
1 x 106
Installation orientation
Any
Ready delay
8 s
Switching frequency
max.0,5 Hz
Connection
2 plug connectors M12, 5 and 8-pin
Approach speed
max.20 m/min
Guard locking principle
Closed-circuit current principle
Locking force Fmax
3900 N
Locking force FZh
3000 N
Retention force
20 N
Extraction force
20 N
Actuating force
10 N
Overtravel
5 mm
Electrical connection ratings
Extension of risk time according to EN 60947-5-3 per device
max.5 ms
Test-pulse interval
min.140 ms
Test pulses
max.1,0 ms
Operating voltage DC
UUB
24 V DC -15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Current consumption
IUB
40 mA
IIMP
400 mA
Utilization category acc. to EN 60947-5-2
DC-13
24V 150mA
Solenoid operating voltage DC
UIMP
24 V DC -15% ... +10% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Fusing
External (operating voltage UB)
0,25 ... 8 A
External (solenoid operating voltage IMP)
0,5 ... 8 A
Rated insulation voltage Ui
50 V
Rated impulse withstand voltage Uimp
0,5 kV
Connection rating
6 W
EMC protection requirements
In acc. with EN IEC 60947-5-3
Solenoid duty cycle
100 %
Degree of contamination (external, according to EN 60947-1)
3
Safety class
EN IEC 61140
III
Risk time according to EN 60947-5-3
Single device
max.260 ms
Switching load
According to UL
24V DC, class 2
Monitoring output OD
Type of output
p-switching, short circuit-proof
Switching current
1 ... 50 mA
Output voltage
0,8xUB ... UB V DC
Monitoring output OI
Type of output
p-switching, short circuit-proof
Switching current
1 ... 50 mA
Output voltage
0,8xUB ... UB V DC
Monitoring output OL
Type of output
p-switching, short circuit-proof
Switching current
1 ... 50 mA
Output voltage
0,8xUB ... UB V DC
Safety outputs FO1A / FO1B
Type of output
2 semiconductor outputs, p-switching, short circuit-proof
Switching current
Per safety output FO1A / FO1B
1 ... 150 mA
Output voltage
Low U(FO1A) / U(FO1B)
0 ... 1 V DC
High U(FO1A) / U(FO1B)
UB-1,5 ... UB V DC
Off-state current Ir
max.0,25 mA
Turn-on time
max.400 ms
Discrepancy time
Both safety outputs
max.10 ms In acc. with EN IEC 60947-5-3
Work area
Repeat accuracy R
According to EN 60947-5-2
10 %
Other
Additional feature
Escape release actuated by pushing
For the approval acc. to UL the following applies
Operation only with UL class 2 power supply, or equivalent measures see operating instructions
Reliability values according to EN ISO 13849-1
Performance Level
PL e
Category
4
PFHD
4.1 x 10 -9
Mission time
20 y
Approvals
Mechanical values and environment
Shock and vibration resistance | In acc. with EN 60947-5-3 |
Housing material | |
Switch head cover | Die-cast zinc |
Safety switch housing | Fiber glass reinforced thermoplastic |
Weight | |
Net | 0,42 kg |
Ambient temperature | |
At UB = 24V DC | -20 ... +55 °C |
Degree of protection | IP67/IP69/IP69K |
Mechanical life | 1 x 106 |
Installation orientation | Any |
Ready delay | 8 s |
Switching frequency | max.0,5 Hz |
Connection | 2 plug connectors M12, 5 and 8-pin |
Approach speed | max.20 m/min |
Guard locking principle | Closed-circuit current principle |
Locking force Fmax | 3900 N |
Locking force FZh | 3000 N |
Retention force | 20 N |
Extraction force | 20 N |
Actuating force | 10 N |
Overtravel | 5 mm |
Electrical connection ratings
Extension of risk time according to EN 60947-5-3 per device | max.5 ms |
Test-pulse interval | min.140 ms |
Test pulses | max.1,0 ms |
Operating voltage DC | |
UUB | 24 V DC -15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
Current consumption | |
IUB | 40 mA |
IIMP | 400 mA |
Utilization category acc. to EN 60947-5-2 | |
DC-13 | 24V 150mA |
Solenoid operating voltage DC | |
UIMP | 24 V DC -15% ... +10% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
Fusing | |
External (operating voltage UB) | 0,25 ... 8 A |
External (solenoid operating voltage IMP) | 0,5 ... 8 A |
Rated insulation voltage Ui | 50 V |
Rated impulse withstand voltage Uimp | 0,5 kV |
Connection rating | 6 W |
EMC protection requirements | In acc. with EN IEC 60947-5-3 |
Solenoid duty cycle | 100 % |
Degree of contamination (external, according to EN 60947-1) | 3 |
Safety class | |
EN IEC 61140 | III |
Risk time according to EN 60947-5-3 | |
Single device | max.260 ms |
Switching load | |
According to UL | 24V DC, class 2 |
Monitoring output OD | |
Type of output | p-switching, short circuit-proof |
Switching current | 1 ... 50 mA |
Output voltage | 0,8xUB ... UB V DC |
Monitoring output OI | |
Type of output | p-switching, short circuit-proof |
Switching current | 1 ... 50 mA |
Output voltage | 0,8xUB ... UB V DC |
Monitoring output OL | |
Type of output | p-switching, short circuit-proof |
Switching current | 1 ... 50 mA |
Output voltage | 0,8xUB ... UB V DC |
Safety outputs FO1A / FO1B | |
Type of output | 2 semiconductor outputs, p-switching, short circuit-proof |
Switching current | |
Per safety output FO1A / FO1B | 1 ... 150 mA |
Output voltage | |
Low U(FO1A) / U(FO1B) | 0 ... 1 V DC |
High U(FO1A) / U(FO1B) | UB-1,5 ... UB V DC |
Off-state current Ir | max.0,25 mA |
Turn-on time | max.400 ms |
Discrepancy time | |
Both safety outputs | max.10 ms In acc. with EN IEC 60947-5-3 |
Work area
Repeat accuracy R | |
According to EN 60947-5-2 | 10 % |
Other
Additional feature | Escape release actuated by pushing |
For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures see operating instructions |
Reliability values according to EN ISO 13849-1
Performance Level | PL e |
Category | 4 |
PFHD | 4.1 x 10 -9 |
Mission time | 20 y |
