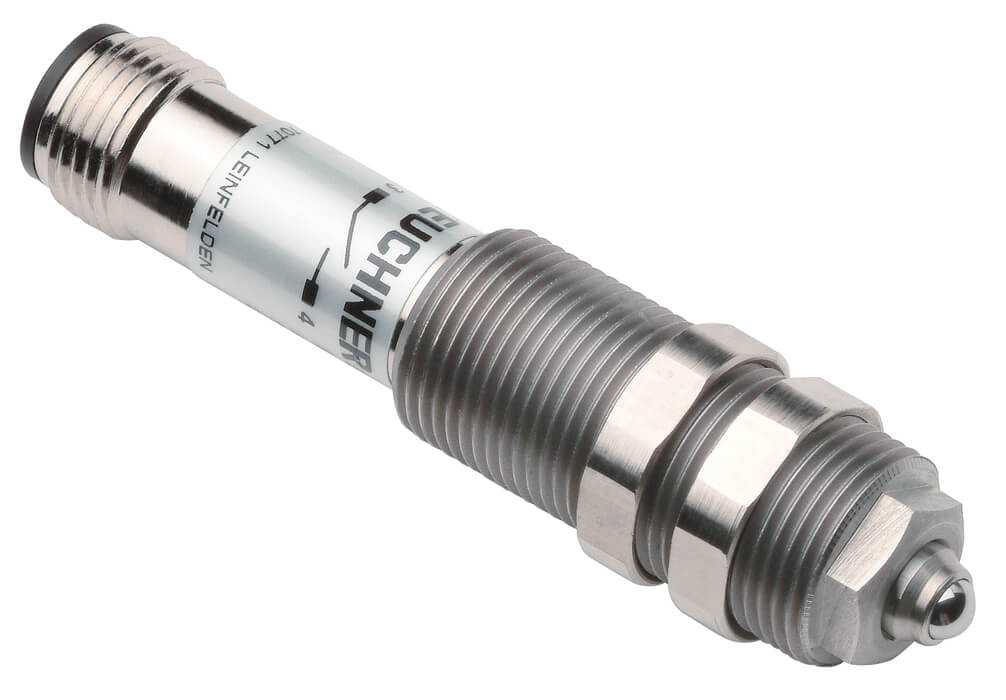

Euchner EGT1/4A2000 001366
Hassas tek delikli sabitleme limit anahtarı EGT1 / 4
Approvals
Mechanical values and environment
Cable ambient temperature (static) | -25 ... 80 °C |
Design | Thread M14 x 1 |
Housing material | |
Sleeve | Plastic |
Threaded section | Stainless steel |
Degree of protection | IP68 |
Mechanical life | 30 x 106 |
Contact material | Rhodium |
Switching principle | Reed contact |
Repeat accuracy (absolute) | ±0,01 mm |
Installation orientation | Any |
Number of NO contacts | 1 |
Connection | PUR cable |
Cable length | 2 m |
Approach speed | max.8 m/min |
Actuating element | Ball plunger |
Actuating force | |
Approx. | 16 N |
Electrical connection ratings
Utilization category acc. to EN 60947-5-1 | |
DC-13 | 0.3A 24V |
AC-12 | 0.03A 230V |
Short circuit protection according to IEC 60269-1 | 0.4A gG |
Rated insulation voltage Ui | 250 V |
Switching voltage | |
min. | 1 V |
Switching current | |
Min. at 24V | 1 mA |
Connection cross-section | 0,5 mm² |
