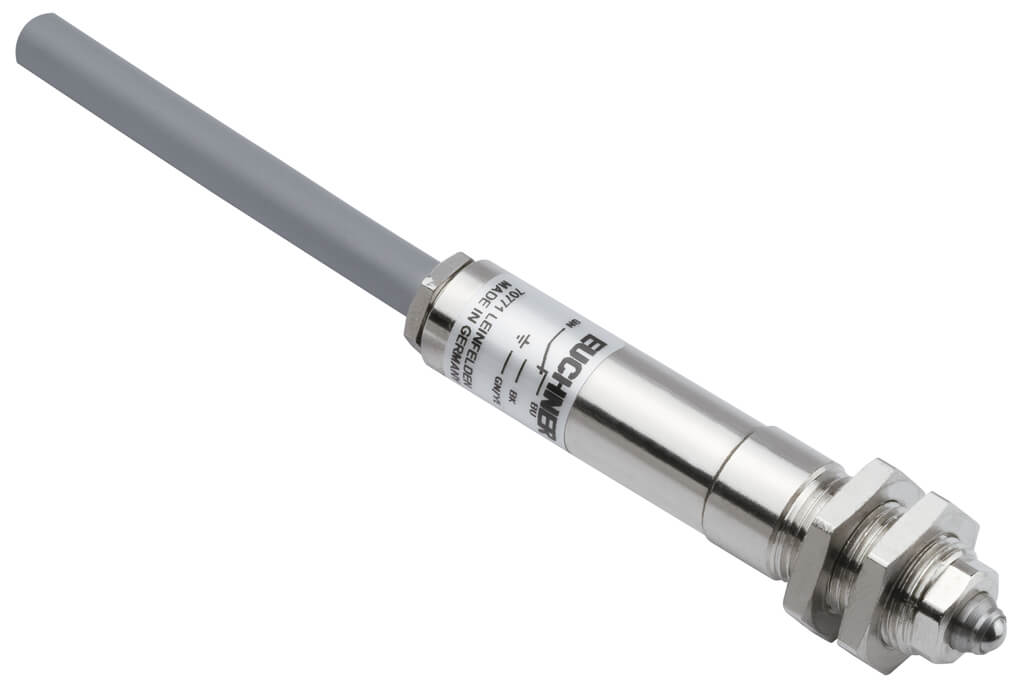

Euchner EGT1-5000 001733 Hassas Tek Delikli Sabitleme Limit Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
272989
Garanti Süresi
24 Ay
Fiyat
238,75 EUR + KDV
* 3.046,19 TL den başlayan taksitlerle!
11.173,43 TL
Euchner EGT1-5000 001733 Hassas Tek Delikli Sabitleme Limit Anahtarı
Anlık hareketli anahtarlama elemanı ile
Piston malzemesi paslanmaz çelik
Herhangi bir kurulum yönü
Anahtarlama elemanı
Snap-action anahtarlama kontağı, 1 değiştirme kontağı
Tek delikli sabitleme limit anahtarları son durdurucu olarak kullanılmamalıdır.
Approvals
Mechanical values and environment
| Cable ambient temperature (static) | -25 ... 80 °C |
| Design | Thread M14 x 1 |
| Housing material | |
| Sleeve | Brass, nickel-plated |
| Threaded section | Brass, nickel-plated |
| Degree of protection | IP67 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold-plated |
| Switching principle | Snap-action switching contact |
| Repeat accuracy (absolute) | ±0,01 mm |
| Installation orientation | Any |
| Number of NC contacts | 1 |
| Number of NO contacts | 1 |
| Connection | PUR cable |
| Cable length | 5 m |
| Approach speed | 0,01 ... 8 m/min |
| Actuating element | Ball plunger |
| Actuating force | |
| Approx. | 20 N |
Electrical connection ratings
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 0.5A 230V |
| DC-13 | 0.6A 24V |
| Short circuit protection according to IEC 60269-1 | 2A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| min. | 12 V |
| Switching current | |
| Min. at 24V | 10 mA |
| Connection cross-section | 0,5 mm² |
