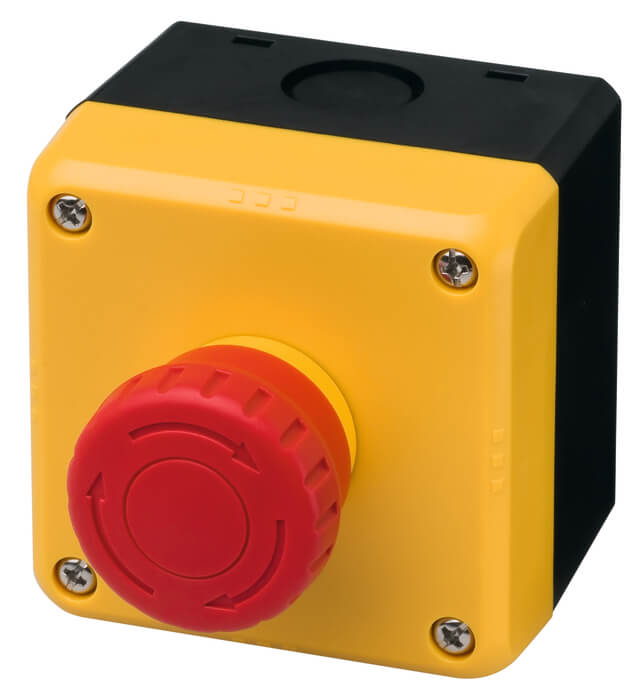

Euchner ES-FB1W-XW1E-LV412Q4MFR-YO 105018
Acil Durum Butonu Muhafazalı XW Cihazları
Düğme başlığı kırmızı 40 mm ø
Kontak bloğu izleme
Çekerek veya çevirerek sıfırlayın
Konut
Aydınlatma ile
Anahtarlama elemanı
2 NC + 1 YOK
Approvals
Mechanical values and environment
Material | |
Button | Fiber glass reinforced thermoplastic |
Housing | Polycarbonate |
Ambient temperature | -25 ... 55 °C |
Degree of protection | IP65 |
Mechanical life | 0,25 x 106 |
Contact material | Silver alloy, gold flashed |
Number of positively driven contacts | 2 |
Number of NO contacts | 1 |
Connection | Screw terminal |
Electrical connection ratings
Operating current | 15 mA |
Operating voltage | |
AC/DC | 24 V -10% ... +10% V |
Thermal rated current Ith | 1 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 1.5 A 250 V |
DC-13 | 1A 30V |
AC-14 | 0.3 A 250 V |
Rated insulation voltage Ui | 250 V |
Switching current | |
Min. at 24V | 10 mA |
Other
Additional feature | |
Button head Ø 40 mm | |
Reset by pulling or turning | |
Contact block monitoring | |
Device with housing | |
Color | |
Actuating button | Red transparent |
Bottom part | Yellow |
Lighting | Yes |
Reliability values according to EN ISO 13849-1
B10D | 0,1 x 106 |
