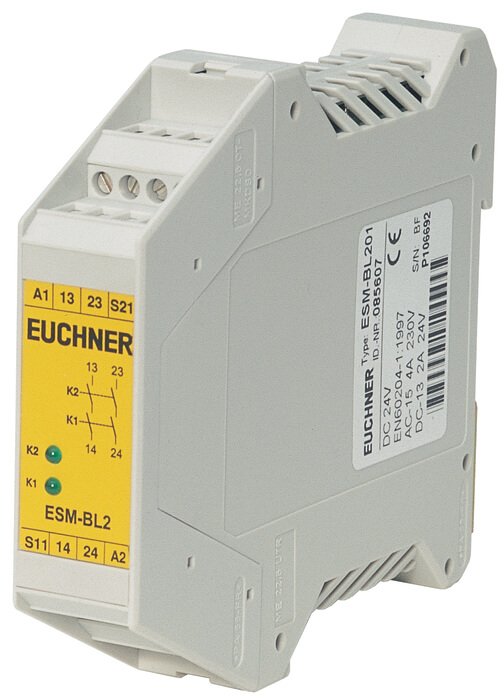

Euchner ESM-BL201 085607
EN ISO 13849-1'e göre kategori 3'e kadar kullanım
LED durum göstergeleri
Tek kanallı veya çift kanallı kontrol
2 yedek güvenlik kontağı
Röle çıkışları
Çıkışlar elektriksel olarak ayrılmış ve yedekli tasarıma sahiptir.
Bağlantı seçenekleri
Uygun kablolama kullanılarak aşağıdaki fonksiyonlar seçilebilir:
Otomatik başlatma veya bir başlatma düğmesiyle röle başlatma
Aşağı akım röleleri veya kontaktörlerin izlenmesi
Approvals
Mechanical values and environment
Housing material | |
Housing | Polyamide PA6.6 |
Weight | |
Net | 0,23 kg |
Ambient temperature | |
At UB = 24V DC | -15 ... 60 °C |
At UB = 24V AC | -15 ... 40 °C |
Degree of protection | IP20 |
Mechanical life | |
operating cycles | 10 x 106 |
Contact material | AgNi-10 |
Mounting method | Mounting rail 35mm according to DIN EN 60715 TH35 |
Connection | Connection terminals |
Length of control cable | |
With conductor cross-section 0.75mm2 | 1000 m |
Safety contacts 13/14, 23/24 | |
Number of safety contacts | 2 |
Electrical connection ratings
Operating voltage | |
AC/DC | 24 V -10% ... +10% |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | |
Leakage path/air gaps | 4 kV |
Overvoltage category according to IEC EN 60664-1 | 3 |
Reverse polarity protection | |
On version UB =24V DC | |
Rated supply frequency | 50 ... 60 Hz |
Connection rating | |
at 24V DC | 1,2 W |
Degree of contamination (external, according to EN 60947-1) | 2 |
Connection cross-section | 0,14 ... 2,5 mm² |
Test voltage | |
Control system/contacts | 2,5 kV |
Control voltage | |
On S11 | 24 V 18,6 ... 26 V Start button |
Control current | |
S11...S14 | 40 mA |
LED indicator | 2 status displays (green) for relays K1 and K2 |
Safety contacts 13/14, 23/24 | |
Type of output | |
NO | Relay contacts, floating and positively driven (redundant) |
Switching voltage | |
AC | max.250 V |
DC | max.24 V |
Switching current | min.20 mA at 24V |
Fusing | |
External contact fuses (safety circuit) according to IEC 60269-1 | 10A gG |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 4A, 250V |
DC-13 | 2A, 24V |
AC-12 | 6A ohmic load, 250V |
DC-12 | 1.25A ohmic load, 24V |
Breaking capacity according to UL | 6A 250V AC / 2A 24V DC |
Other
In compliance with | EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN 50581: 2012 (RoHS) |
Reliability values according to EN ISO 13849-1
Performance Level | PL d |
Category | 3 |
PFHD | 1.03 x 10-7 |
Number of switching cycles | |
≤ 0.1 A at 24 V DC | max.400000 1/Jahr |
≤ 1 A at 24 V DC | max.73000 1/Jahr |
≤ 2 A at 24 V DC | max.17000 1/Jahr |
Mission time | 20 y |
