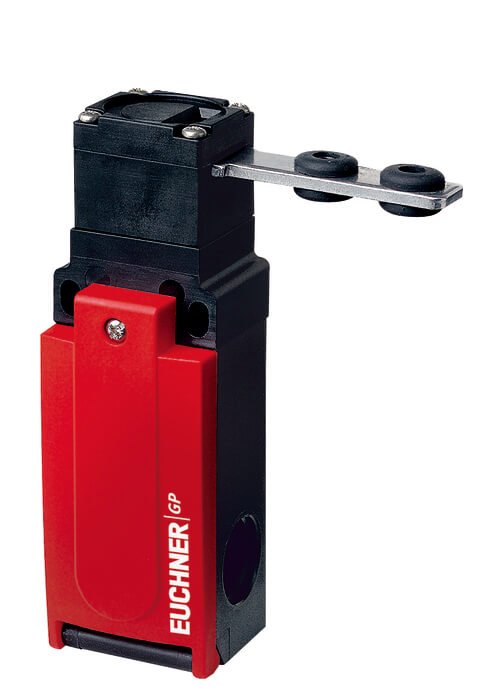

Euchner GP1-3131A-M 090258 Emniyet Anahtarı

Figür

Yatay ve dikey

90 ° 'lik adımlarla ayarlanabilir



Anahtarlama elemanı

3131 Yavaş hareketli anahtarlama kontağı 2 NC + 2 NO





Onaylar

Mekanik Değerler ve Çevre

Horizontal insertion depth	28 mm
Vertical insertion depth	29,5 mm
Housing material
Housing	Reinforced thermoplastic
Weight
Net	0,5 kg
Ambient temperature	-20 ... 80 °C
Degree of protection	IP67
Mechanical life	2 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of door position positively driven contacts	2
Number of door position NO contacts	2
Connection
3 x	M20 x 1.5
Approach speed	max.20 m/min
Actuation frequency	max.6700 1/h
Retention force	2 N
Extraction force	20 N
Actuating force	10 N

Elektriksel Bağlantı Değerleri

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA
Connection cross-section	0,34 ... 1,5 mm²

EN ISO 13849-1 uyarınca güvenilirlik değerleri

	Monitoring of the safety guard position
B10D	3 x 106

---

In combination with Actuator BETAETIGER-P-GNT

Mechanical values and environment

Horizontal overtravel (A B C D E)	7 mm
Vertical overtravel (K L M N)	7 mm

---

In combination with Actuator BETAETIGER-P-GT

Mechanical values and environment

Horizontal overtravel (A B C D E)	2 mm
Vertical overtravel (K L M N)	1,5 mm
