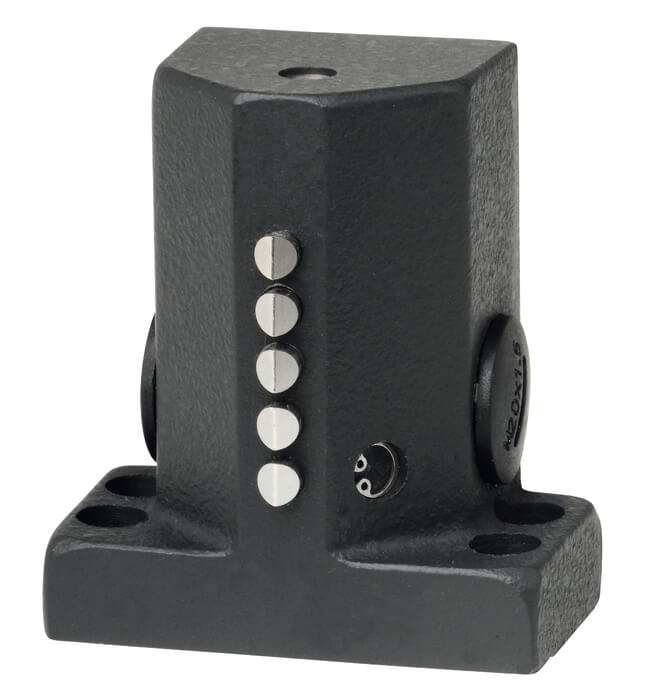

GSBF04R08-552-M (ORDER NO. 086565) 8 mm mechanical
Piston aralığı 8 mm
Dik gövde
IEC 60529'a göre IP67 koruma derecesi
Anahtarlama elemanı
ES 552 Yaylı anahtarlama kontağı 1 enversör kontağı standart anahtarlama elemanı
Approvals
Mechanical values and environment
Design | Upright |
Housing material | |
Housing | Sand-cast aluminum, anodized |
Weight | |
Net | 0,75 kg |
Ambient temperature | -5 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 10 x 106 |
Contact material | Silver alloy, electro-gold-plated |
Switching principle | Snap-action switching contact |
Plunger spacing | 8 mm |
Installation orientation | Any |
Tightening torque | |
Screw terminal switching element | max.0,2 Nm Hexagon socket AF 1.3 mm |
Number of switching elements | 4 |
Number of changeover contacts | 4 |
Connection | |
3 x | M20 x 1.5 |
Approach speed | 0,01 ... 50 m/min |
Actuating element | |
Plain bearing | Roller plunger |
Actuating force | min.15 N |
Electrical connection ratings
Thermal rated current Ith | 6 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 2A 230V |
DC-13 | 2A 24V |
Short circuit protection according to IEC 60269-1 | 6A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 24V | min.10 mA |
Connection cross-section | 0,14 ... 1,0 mm² |
