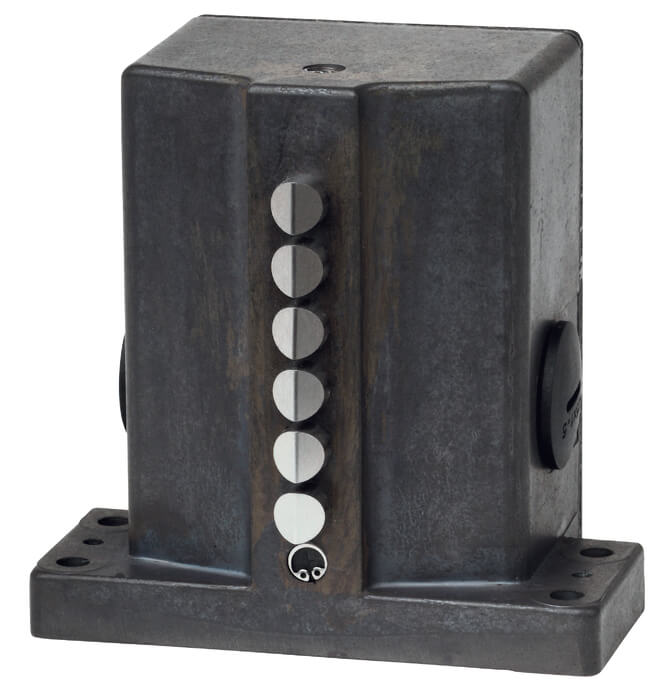

Euchner GSBF05D12-502-M 088353 12 mm Mechanical
Piston aralığı 12 mm
Dik gövde
IEC 60529'a göre IP67 koruma derecesi
Anahtarlama elemanı
ES 502 E Hızlı anahtarlama kontağı 1 NC + 1 NO
Approvals
Mechanical values and environment
| Design | Upright |
| Housing material | |
| Housing | Die-cast aluminum, anodized |
| Weight | |
| Net | 1 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 30 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Snap-action switching contact |
| Plunger spacing | 12 mm |
| Installation orientation | Any |
| Number of switching elements | 5 |
| Number of NC contacts | 5 |
| Number of NO contacts | 5 |
| Connection | |
| 4 x | M25 x 1.5 |
| Approach speed | 0,01 ... 40 m/min |
| Actuating element | Chisel plunger |
| Actuating force | min.20 N |
Electrical connection ratings
| Thermal rated current Ith | 8 A |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 6A 230V |
| DC-13 | 6A 24V |
| AC-12 | 8 A, 250 V |
| Short circuit protection according to IEC 60269-1 | 8A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching current | |
| Min. at DC 12V | min.10 mA |
| Connection cross-section | 0,34 ... 1,5 mm² |
