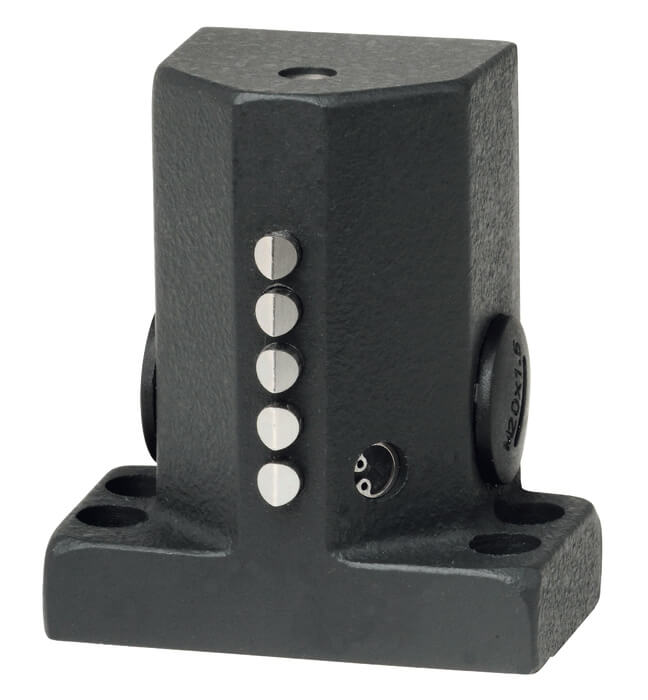

GSBF06D08-552-M (ORDER NO. 085987) Series GSBF... 8 mm mechanical
- Piston aralığı 8 mm
- Dik gövde
- IEC 60529'a göre IP67 koruma derecesi
Anahtarlama elemanı
ES 552 Yaylı anahtarlama kontağı 1 enversör kontağı standart anahtarlama elemanı
Approvals
Mechanical values and environment
Design
Upright
Housing material
Housing
Sand-cast aluminum, anodized
Weight
Net
0,85 kg
Ambient temperature
-5 ... 80 °C
Degree of protection
IP67
Mechanical life
10 x 106
Contact material
Silver alloy, electro-gold-plated
Switching principle
Snap-action switching contact
Plunger spacing
8 mm
Installation orientation
Any
Tightening torque
Screw terminal switching element
max.0,2 Nm Hexagon socket AF 1.3 mm
Number of switching elements
6
Number of changeover contacts
6
Connection
3 x
M20 x 1.5
Approach speed
0,01 ... 20 m/min
Actuating element
Chisel plunger
Actuating force
min.15 N
Electrical connection ratings
Thermal rated current Ith
6 A
Utilization category acc. to EN 60947-5-1
AC-15
2A 230V
DC-13
2A 24V
Short circuit protection according to IEC 60269-1
6A gG
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
2,5 kV
Switching current
Min. at DC 24V
min.10 mA
Connection cross-section
0,14 ... 1,0 mm²
Anahtarlama elemanı
ES 552 Yaylı anahtarlama kontağı 1 enversör kontağı standart anahtarlama elemanı
Approvals
Mechanical values and environment
Design | Upright |
Housing material | |
Housing | Sand-cast aluminum, anodized |
Weight | |
Net | 0,85 kg |
Ambient temperature | -5 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 10 x 106 |
Contact material | Silver alloy, electro-gold-plated |
Switching principle | Snap-action switching contact |
Plunger spacing | 8 mm |
Installation orientation | Any |
Tightening torque | |
Screw terminal switching element | max.0,2 Nm Hexagon socket AF 1.3 mm |
Number of switching elements | 6 |
Number of changeover contacts | 6 |
Connection | |
3 x | M20 x 1.5 |
Approach speed | 0,01 ... 20 m/min |
Actuating element | Chisel plunger |
Actuating force | min.15 N |
Electrical connection ratings
Thermal rated current Ith | 6 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 2A 230V |
DC-13 | 2A 24V |
Short circuit protection according to IEC 60269-1 | 6A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 24V | min.10 mA |
Connection cross-section | 0,14 ... 1,0 mm² |
