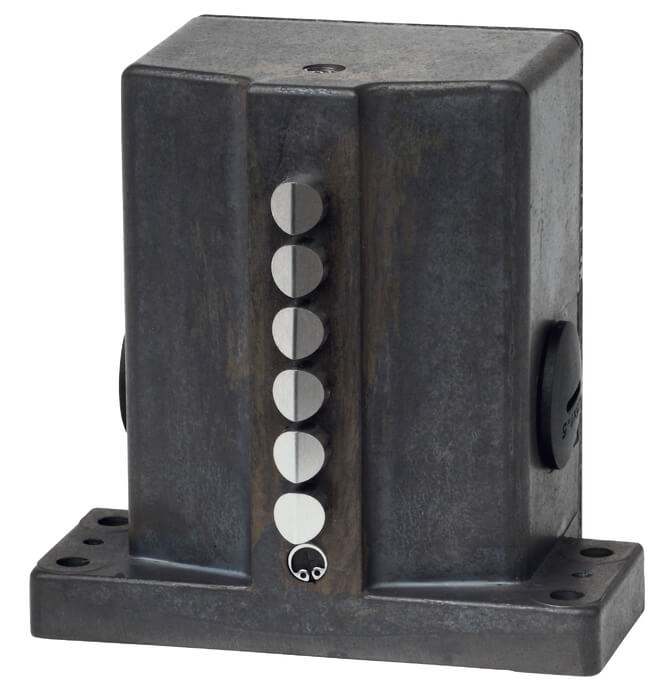

GSBF08D12-502-M (ORDER NO. 085918) Series GSBF... 12 mm mechanical
- Piston aralığı 12 mm
- Dik gövde
- IEC 60529'a göre IP67 koruma derecesi
Anahtarlama elemanı
ES 502 E Hızlı anahtarlama kontağı 1 NC + 1 NO
Approvals
Mechanical values and environment
Design
Upright
Housing material
Housing
Die-cast aluminum, anodized
Weight
Net
1,3 kg
Ambient temperature
-5 ... 80 °C
Degree of protection
IP67
Mechanical life
30 x 106
Contact material
Silver alloy, gold flashed
Switching principle
Snap-action switching contact
Plunger spacing
12 mm
Installation orientation
Any
Number of switching elements
8
Number of NC contacts
8
Number of NO contacts
8
Connection
4 x
M25 x 1.5
Approach speed
0,01 ... 40 m/min
Actuating element
Chisel plunger
Actuating force
min.20 N
Electrical connection ratings
Thermal rated current Ith
8 A
Utilization category acc. to EN 60947-5-1
AC-15
6A 230V
DC-13
6A 24V
AC-12
8 A, 250 V
Short circuit protection according to IEC 60269-1
8A gG
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
2,5 kV
Switching current
Min. at DC 12V
min.10 mA
Connection cross-section
0,34 ... 1,5 mm²
Anahtarlama elemanı
ES 502 E Hızlı anahtarlama kontağı 1 NC + 1 NO
Approvals
Mechanical values and environment
Design | Upright |
Housing material | |
Housing | Die-cast aluminum, anodized |
Weight | |
Net | 1,3 kg |
Ambient temperature | -5 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 30 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Snap-action switching contact |
Plunger spacing | 12 mm |
Installation orientation | Any |
Number of switching elements | 8 |
Number of NC contacts | 8 |
Number of NO contacts | 8 |
Connection | |
4 x | M25 x 1.5 |
Approach speed | 0,01 ... 40 m/min |
Actuating element | Chisel plunger |
Actuating force | min.20 N |
Electrical connection ratings
Thermal rated current Ith | 8 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 6A 230V |
DC-13 | 6A 24V |
AC-12 | 8 A, 250 V |
Short circuit protection according to IEC 60269-1 | 8A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 12V | min.10 mA |
Connection cross-section | 0,34 ... 1,5 mm² |
