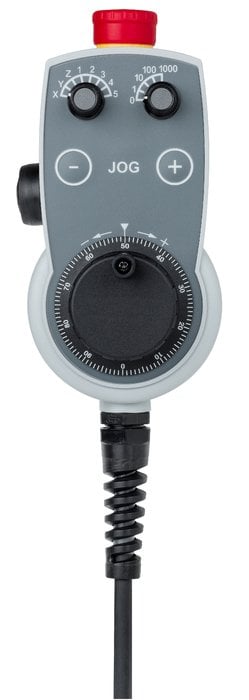

Euchner HBA-091638 Elde Taşınan Pendant İstasyonu
0 - Yorum
Kategori
Marka
Stok Kodu
273230
Garanti Süresi
24 Ay
Fiyat
2.667,13 EUR + KDV
* 34.029,92 TL den başlayan taksitlerle!
124.821,69 TL
Euchner HBA-091638 Elde Taşınan Pendant İstasyonu HBA
Acil durdurma cihazı, etkinleştirme anahtarı, folyo butonlar, el çarkı, seçici anahtar
- El çarkı 100 darbeli, mekanik kilit mekanizması
- 1 etkinleştirme anahtarı, 3 aşamalı, her biri 2 NO kontağı
- Kurcalamaya dayanıklı ACİL DURDURMA cihazı, EN 13850'ye göre, çift kanallı
- 8 konumlu 1 seçici anahtar (X, Y, Z, 1, 2, 3, 4, 5)
- 5 konumlu 1 seçici anahtar (0, 1, 10, 100, 1000)
- 2 membran buton, her biri 1 NO kontak
Approvals
Mechanical values and environment
| Shock and vibration resistance | Acc. to EN 60068-2-27/-2-6 |
| Material | Polycarbonate |
| Weight | |
| Net | 1,3 kg |
| Ambient temperature | 0 ... 50 °C |
| Atmospheric humidity | |
| (condensation not permissible) | max.80 % rH |
| Degree of protection | IP65 |
| Acc. to Nema | 250-12 |
| Connection | Plug connector |
| Cable length | |
| coiled | 3,5 m |
| Detent positions per revolution | |
| Handwheel | 100 |
Electrical connection ratings
| Operating voltage DC | |
| Handwheel | 5 V DC -5% ... 5% |
| Utilization category acc. to EN 60947-5-1 | |
| DC-13 | 30V DC / 1A |
| Switching voltage | |
| Selector switch | max.15 V |
| Membrane keypad | max.AC 25 V |
| max.DC 42 V | |
| Enabling switch | max.AC/DC 42 V |
| Switching current | |
| Enabling switch | max.100 mA |
| Selector switch | max.20 mA |
| Membrane keypad | max.100 mA |
| EMC protection requirements | |
| Acc. to CE | EN 61000-6-2, EN 61000-6-4 |
| Type of output | |
| Handwheel | G05 |
| Connecting cable | 6x0.34mm² + 17x0.14mm² |
| Pulses per revolution | |
| Handwheel | 2x100 |
| Breaking capacity (VA) | |
| Enabling switch | max.0,25 VA |
| Selector switch | max.0,2 VA |
| Membrane keypad | max.1 VA |
Controls and indicators
| Control/indicator | |
| Version | Emergency stop |
| Slide-in label | |
| Special features | - |
| Color | Red-yellow |
| Switching element | 2 positively driven contacts |
| Position | See data sheets |
| Control/indicator | |
| Version | Enabling switches, 3-stage |
| Slide-in label | |
| Special features | - |
| Color | Black |
| Switching element | 2 NO contacts |
| Position | See data sheets |
| Control/indicator | |
| Version | Selector switch |
| Slide-in label | |
| Special features | - |
| Color | Black knob with marking |
| Switching element | 5-stage, Gray coded, detent angle 22.5° |
| Position | See data sheets |
| Control/indicator | |
| Version | Handwheel |
| Slide-in label | |
| Special features | - |
| Color | Black plastic adjusting wheel |
| Switching element | - |
| Position | See data sheets |
| Control/indicator | |
| Version | Membrane key |
| Slide-in label | |
| Special features | Labeled |
| Color | - |
| Switching element | 1 NO contact each |
| Position | See data sheets |
| Control/indicator | |
| Version | Selector switch |
| Slide-in label | |
| Special features | - |
| Color | Black knob with marking |
| Switching element | 8-stage, Gray coded, detent angle 22.5° |
| Position | See data sheets |
Other
| Color | |
| Housing | Gray RAL 7040 |
| For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
