Euchner KCA2A2A2A2A0000W 043318
0 - Yorum
Kategori
Marka
Stok Kodu
273103
Garanti Süresi
24 Ay
Fiyat
564,94 EUR + KDV
* 7.208,12 TL den başlayan taksitlerle!
26.439,37 TL

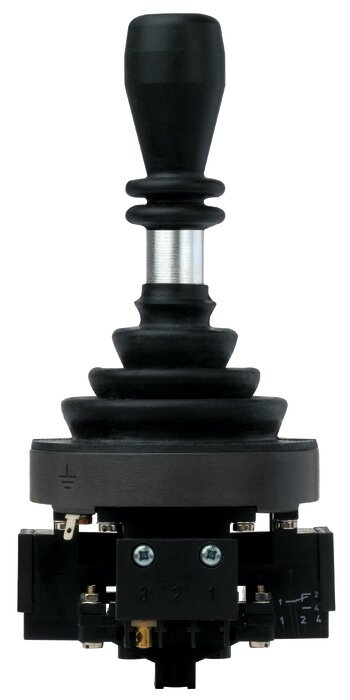

Euchner KCA2A2A2A2A0000W 043318
Sekme konektörü 2,8 x 0,5
4 çalıştırma yönü
Panel montajı için körükler (W)
Onaylar
Mekanik Değerler ve Çevre
| Material | |
| Bellows elastomer black | |
| Housing thermoplastic/aluminum | |
| Switching lever galvanized steel | |
| Weight | |
| Net | 0,75 kg |
| Ambient temperature | -5 ... 65 °C Spring return version |
| Degree of protection | |
| on the front with bellows | IP65 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy |
| Switching principle | changeover contact C IEC 947-5-1 |
| Mounting method | Panel cut-out depending on version X or W |
| Number of monitoring contacts | max.12 12 |
| Connection | Tab connector 2.8 x 0.5 IEC 760 |
| Actuating directions | max.4 Max. 3 positions (0-1-2) possible per type and direction |
Elektriksel Bağlantı Değerleri
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 230V 4A |
| DC-13 | 24V 2A |
| Short circuit protection according to IEC 60269-1 | Slow-blow T6 / quick-blow F10 |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | min.10 V |
| Switching current | |
| (at 24V) | min.12 mA |
Çeşitli
| Additional feature | Bellows W for flush mounting |
