Euchner KCB2B2B2B2B0000V0W 026067
0 - Yorum
Kategori
Marka
Stok Kodu
273179
Garanti Süresi
24 Ay
Fiyat
416,87 EUR + KDV
* 5.318,80 TL den başlayan taksitlerle!
19.509,37 TL

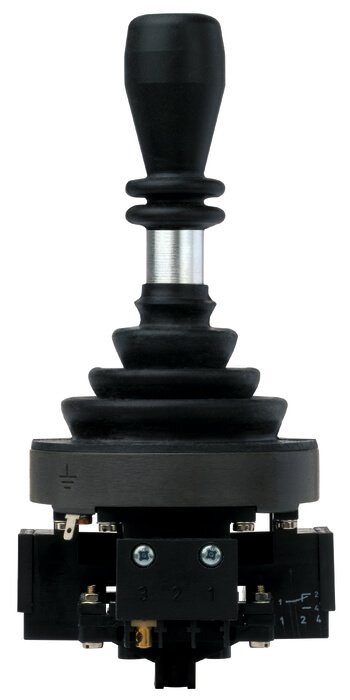

Euchner KCB2B2B2B2B0000V0W 026067
Vidalı terminal
4 çalıştırma yönü
Anahtar konumu 0'da kilitleme (V0)
Panel montajı için körükler (W)
Approvals
Mechanical values and environment
| Material | |
| Housing thermoplastic/aluminum | |
| Switching lever galvanized steel | |
| Bellows elastomer black | |
| Weight | |
| Net | 0,75 kg |
| Ambient temperature | -5 ... 65 °C Spring return version |
| Degree of protection | |
| on the front with bellows | IP65 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy |
| Switching principle | changeover contact C IEC 947-5-1 |
| Mounting method | Panel cut-out depending on version X or W |
| Number of monitoring contacts | max.8 8 |
| Connection | Screw terminal |
| Actuating directions | max.4 Max. 3 positions (0-1-2) possible per type and direction |
Electrical connection ratings
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 230V 4A |
| DC-13 | 24V 2A |
| Short circuit protection according to IEC 60269-1 | Slow-blow T6 / quick-blow F10 |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | min.10 V |
| Switching current | |
| (at 24V) | min.12 mA |
Other
| Additional feature | |
| Comment: | Locking in O position |
| Bellows W for flush mounting |
