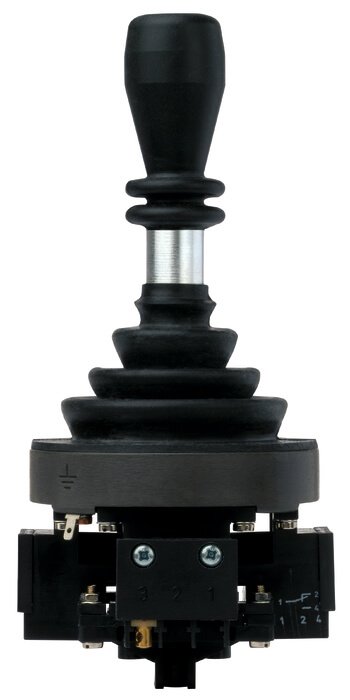

Euchner KCB4E4E4E4E0000DV0W 050064
- Vidalı terminal
- 4 çalıştırma yönü
- Saptaki basma düğmesi (D)
- Anahtar konumu 0'da kilitleme (V0)
- Panel montajı için körükler (W)
Approvals
Mechanical values and environment
Material | |
Switching lever galvanized steel | |
Bellows elastomer black | |
Housing thermoplastic/aluminum | |
Weight | |
Net | 0,75 kg |
Ambient temperature | -25 ... 65 °C Latching version |
Degree of protection | |
on the front with bellows | IP65 |
Mechanical life | 1 x 106 |
Contact material | Silver alloy |
Switching principle | changeover contact C IEC 947-5-1 |
Mounting method | Panel cut-out depending on version X or W |
Number of monitoring contacts | max.4 4 |
Connection | Screw terminal |
Actuating directions | max.4 Max. 3 positions (0-1-2) possible per type and direction |
Pushbutton in handle | |
Switching principle | 1 contact |
Actuating force | max.8 N |
Mechanical life | |
(at 0.7A / 250V AC) | 0,05 x 106 |
Electrical connection ratings
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 230V 4A |
DC-13 | 24V 2A |
Short circuit protection according to IEC 60269-1 | Slow-blow T6 / quick-blow F10 |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching voltage | min.10 V |
Switching current | |
(at 24V) | min.12 mA |
Pushbutton in handle | |
Switching voltage | min.10 V |
Switching current | |
(at 24V) | min.12 mA |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 230V 2A |
DC-13 | 24V 1A |
Other
Additional feature | |
Comment: | Locking in O position |
Bellows W for flush mounting | |
Pushbutton in handle |
