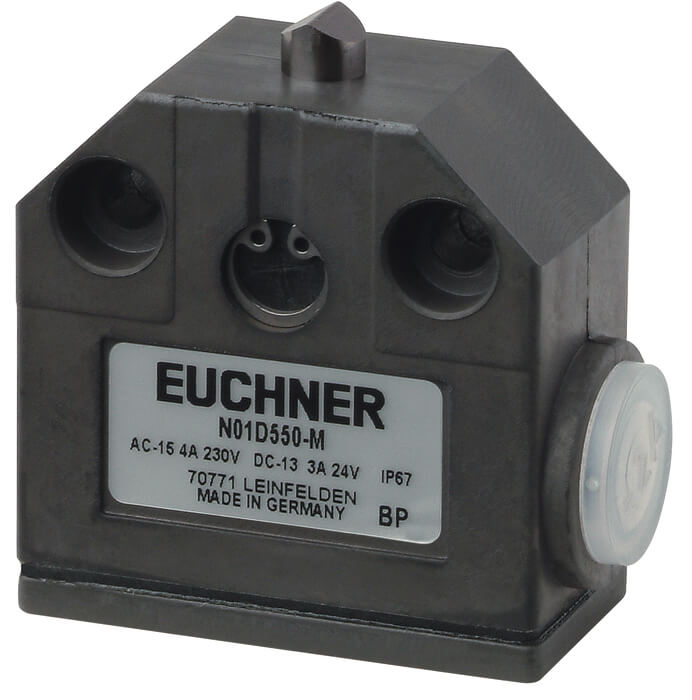

Euchner N01D550-MC2018 085708
Hassas tekli limit anahtarı N01, keski pistonu, kablo rakoru
Piston malzemesi paslanmaz çelik
Approvals
Mechanical values and environment
Housing material | |
Housing | Anodized die-cast alloy |
Weight | |
Net | 0,07 kg |
Ambient temperature | -5 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 10 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Changeover contact with snap-action function |
Installation orientation | Any |
Number of door position NC contacts | 1 Changeover contact |
Number of door position NO contacts | 1 |
Connection | |
1 x | M12 x 1.5 with special cable gland |
Approach speed | 0,01 ... 20 m/min |
Actuating element | Chisel plunger |
Actuating force | 15 ... 20 N |
Electrical connection ratings
Thermal rated current Ith | 6 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 2A 230V |
DC-13 | 2A 24V |
Short circuit protection according to IEC 60269-1 | 6A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 24V | 10 mA |
Connection cross-section | 0,14 ... 1 mm² |
