Euchner N01K550-MC1526 091002 Hassas Tek Limit Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273181
Garanti Süresi
24 Ay
Fiyat
222,81 EUR + KDV
* 2.842,84 TL den başlayan taksitlerle!
10.427,55 TL

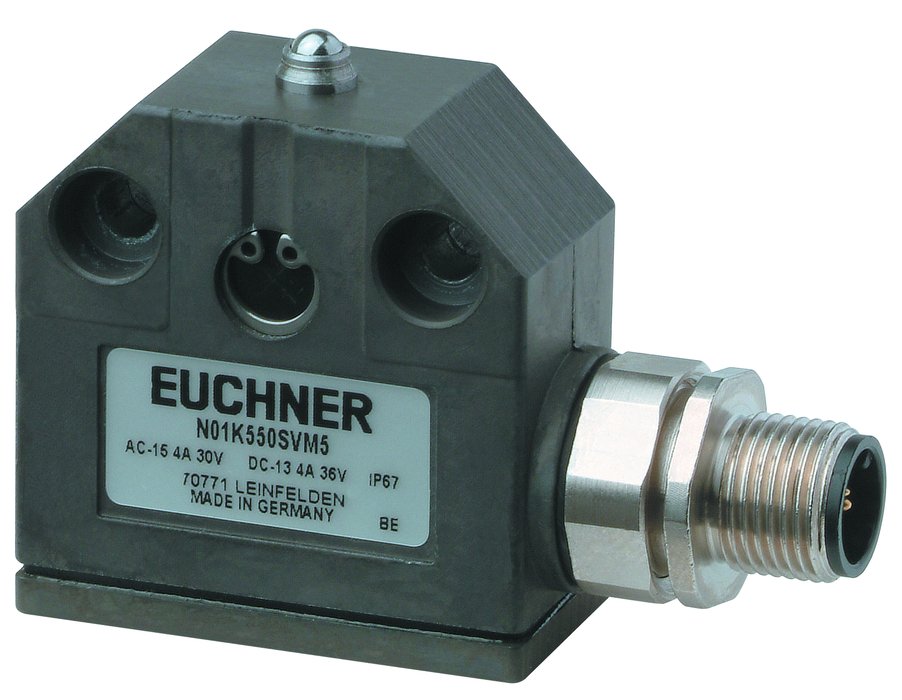

Euchner N01K550-MC1526 091002
Hassas Tek Limit Anahtarı N01, bilyeli piston, fiş konnektörü M12
Piston malzemesi paslanmaz çelik
LED ekranlı fiş konnektörü için
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Anodized die-cast alloy |
| Weight | |
| Net | 0,07 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 10 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Changeover contact with snap-action function |
| Installation orientation | Any |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 |
| Connection | |
| 1 x | Plug connector M12 |
| Approach speed | 0,01 ... 8 m/min |
| Actuating element | |
| Steel ball D ball = 4mm | Ball plunger |
| Actuating force | 15 ... 20 N |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category acc. to EN 60947-5-1 | |
| DC-13 | 2A 24V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 2 kV |
| Switching current | |
| Min. at DC 24V | 10 mA |
